Description
Features
Additional features
Safety lock against scalding 38°C (36°-44°)
Aerator
Laminar stream
Connection
Eccentric coupling(s), Cover plate(s), with integrated shut-off valve(s), Cover plate triple sealed
Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols
Mechanical parts
Thermostatic cartridge for automatic temperature control, Ceramic head part for flow control, Litter filter(s), Non-return valve(s)
Advanced features
Inner body made of DZR brass, Waterways without nickel coating, Thermal disinfection without cartridge readjustment
Spout
Swivel spout, Lockable in the middle position
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, The housing of the fittings conducts minimal heat
Flow attributes

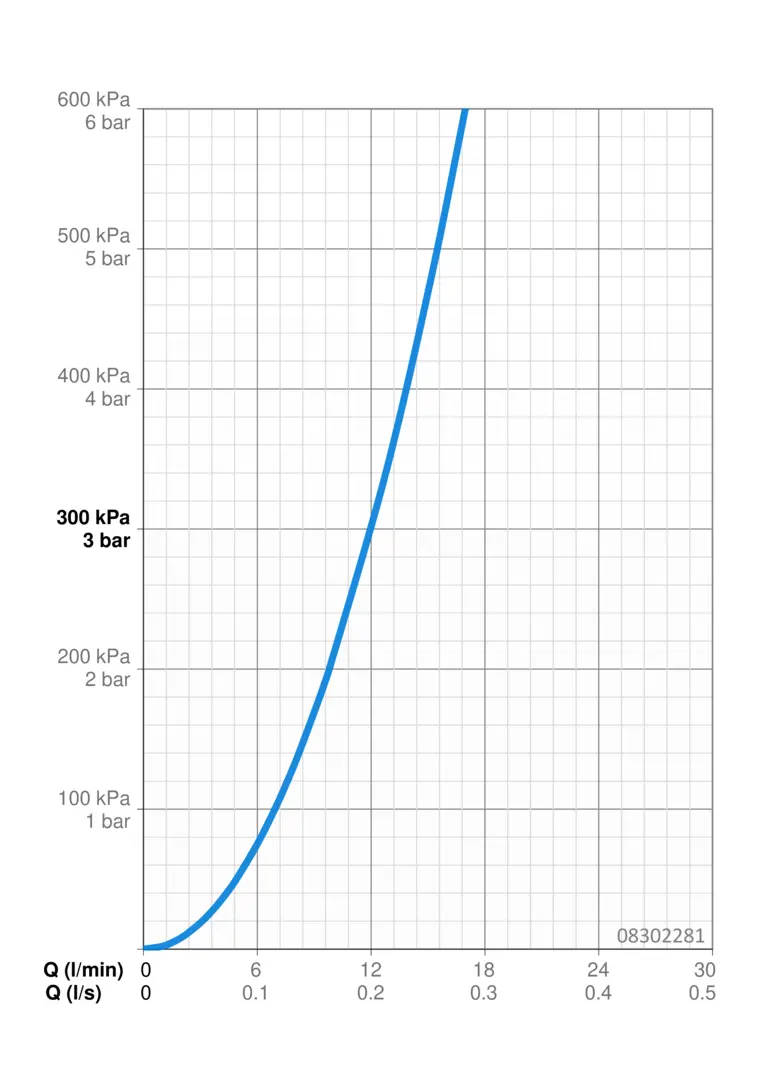

Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
AA
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

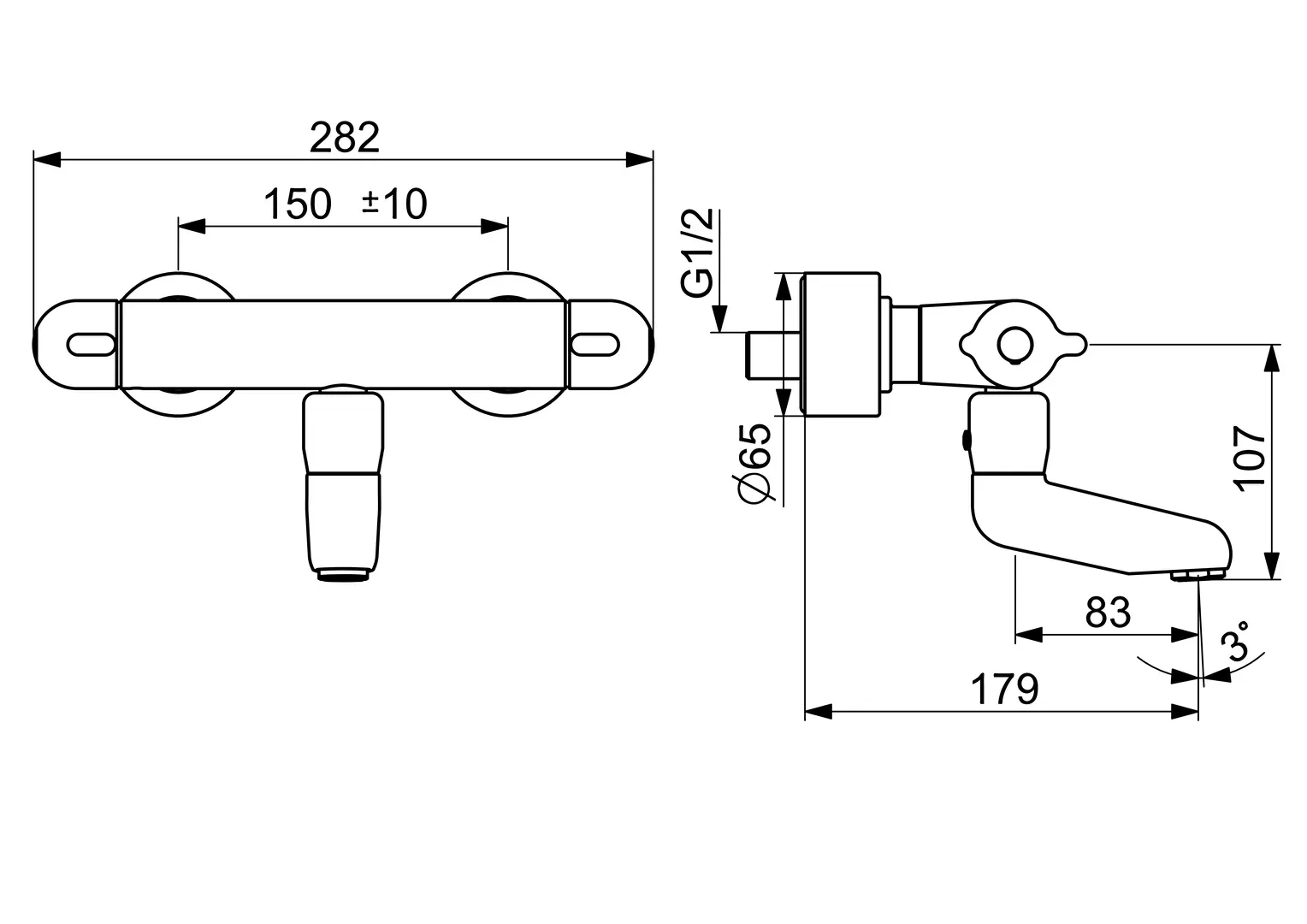

Installation width
150 ± 10 mm
Material
Brass
Projection
179 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
