Description
Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow, Safety feature for water temperature
Mechanical parts
Ceramic head part for flow control, Non-return valve(s), Litter filter(s), Thermostatic cartridge for automatic temperature control
Shower parts
Eco flow control
Color
Chrome
Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

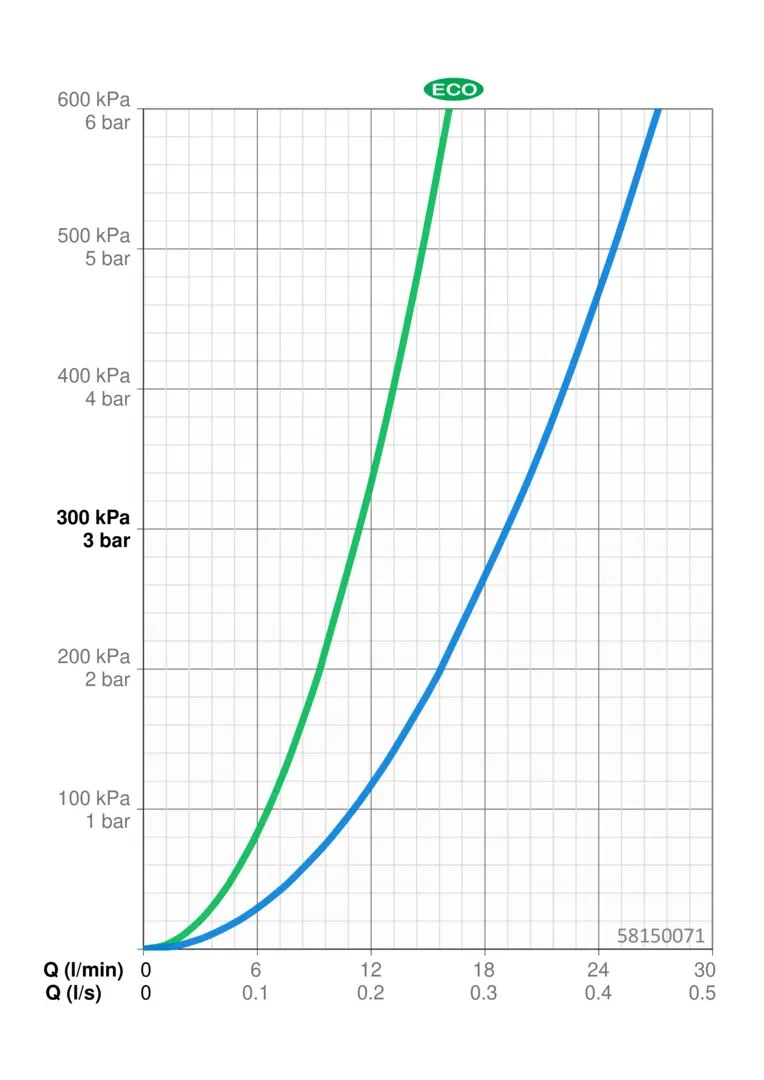

Flow attributes
Eco-flow at 3 bar
11.4 l/min
Flow-rate at 3 bar
19.2 l/min
Technical properties
Backflow prevention (EN1717)
EB
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

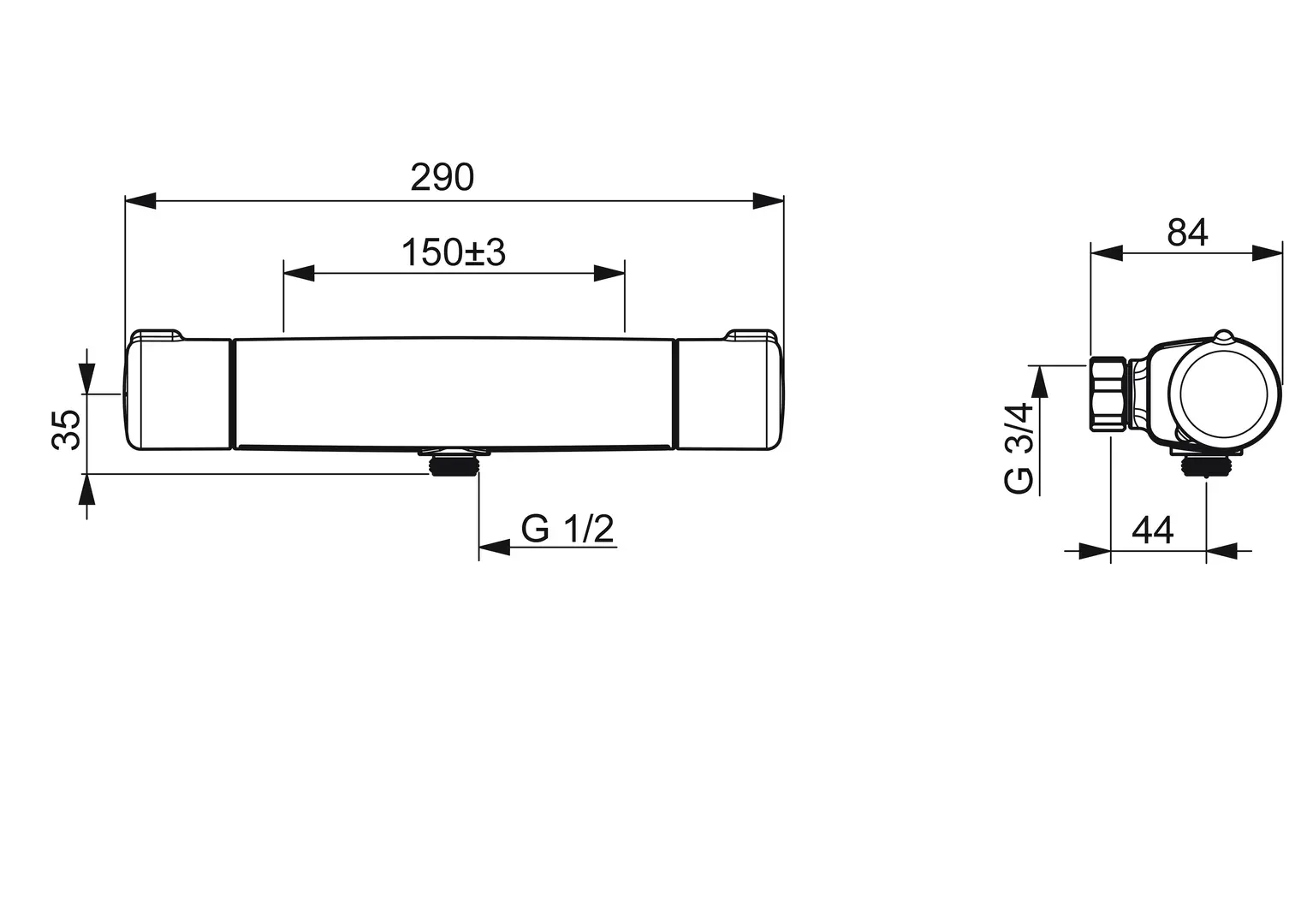

Installation width
150 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
