Features
Aerator
Hidden aerator
Connection
One inlet for cold or premixed water
Lever/Handle
Single operating lever/handle
Mechanical parts
Ceramic head part for flow control
Advanced features
Flexible length / can be shortened, Inner body made of DZR brass
Spout
Fixed spout
Color
Chrome
Flow attributes

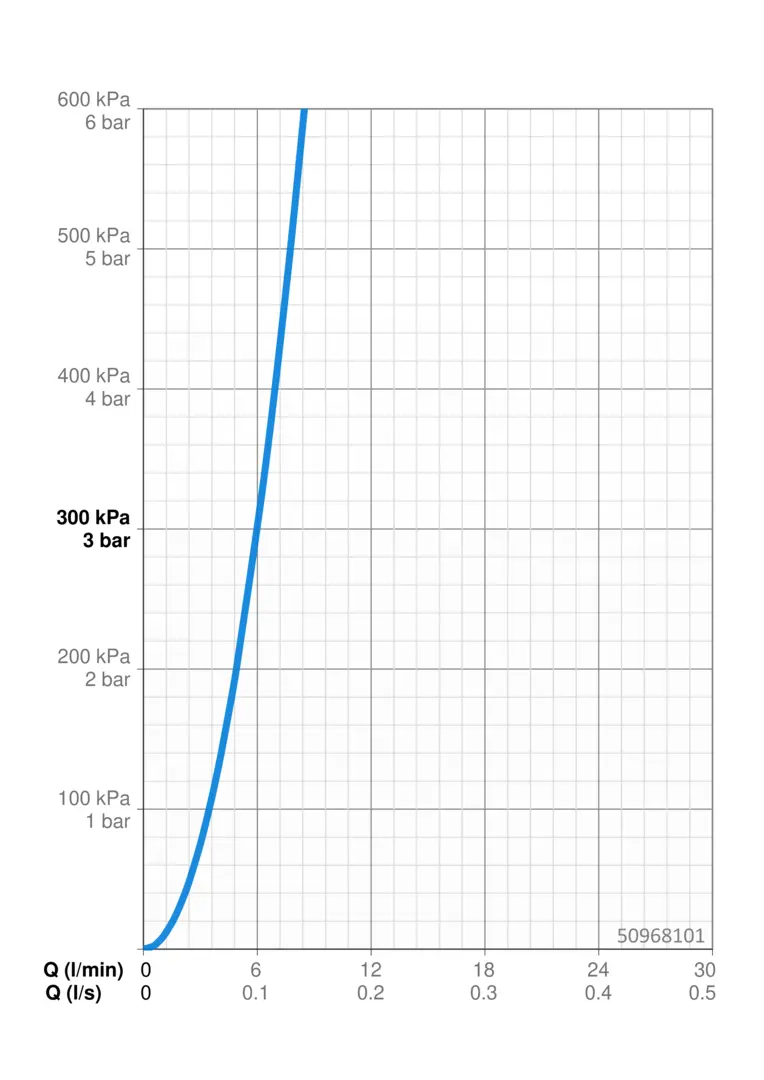

Flow-rate at 3 bar
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C
Material
Brass

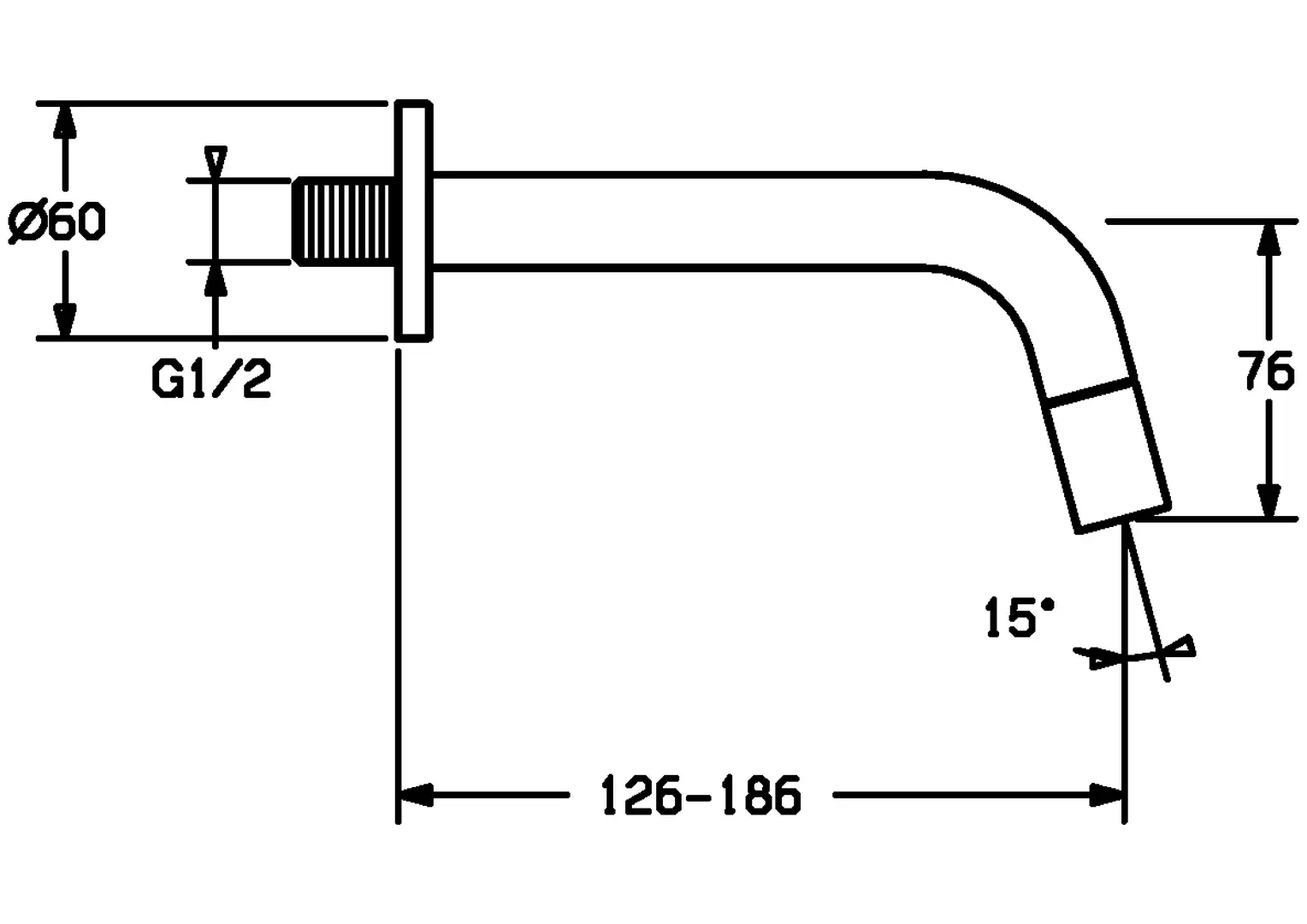

Projection
126-186 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Approvals and Declarations
KIWA
K100538/01
