Description
Features
Aerator
Standard aerator
Connection
Flexible inlet pipes
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
Rapid installation system
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

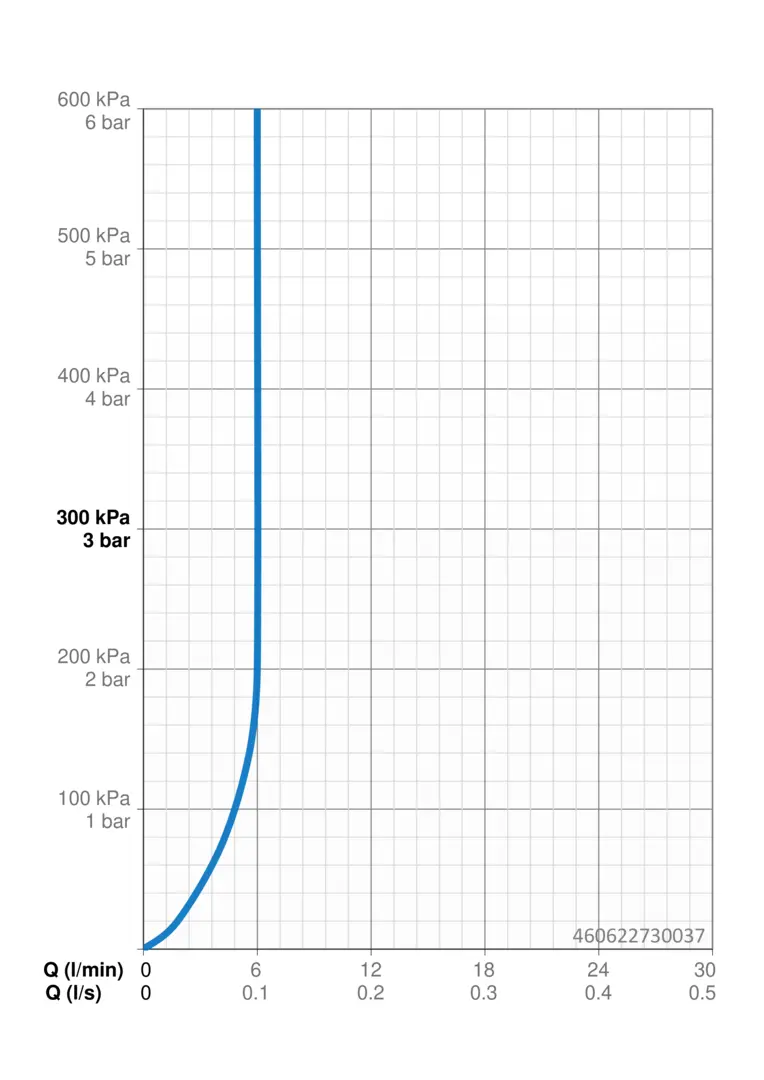

Flow attributes
Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass

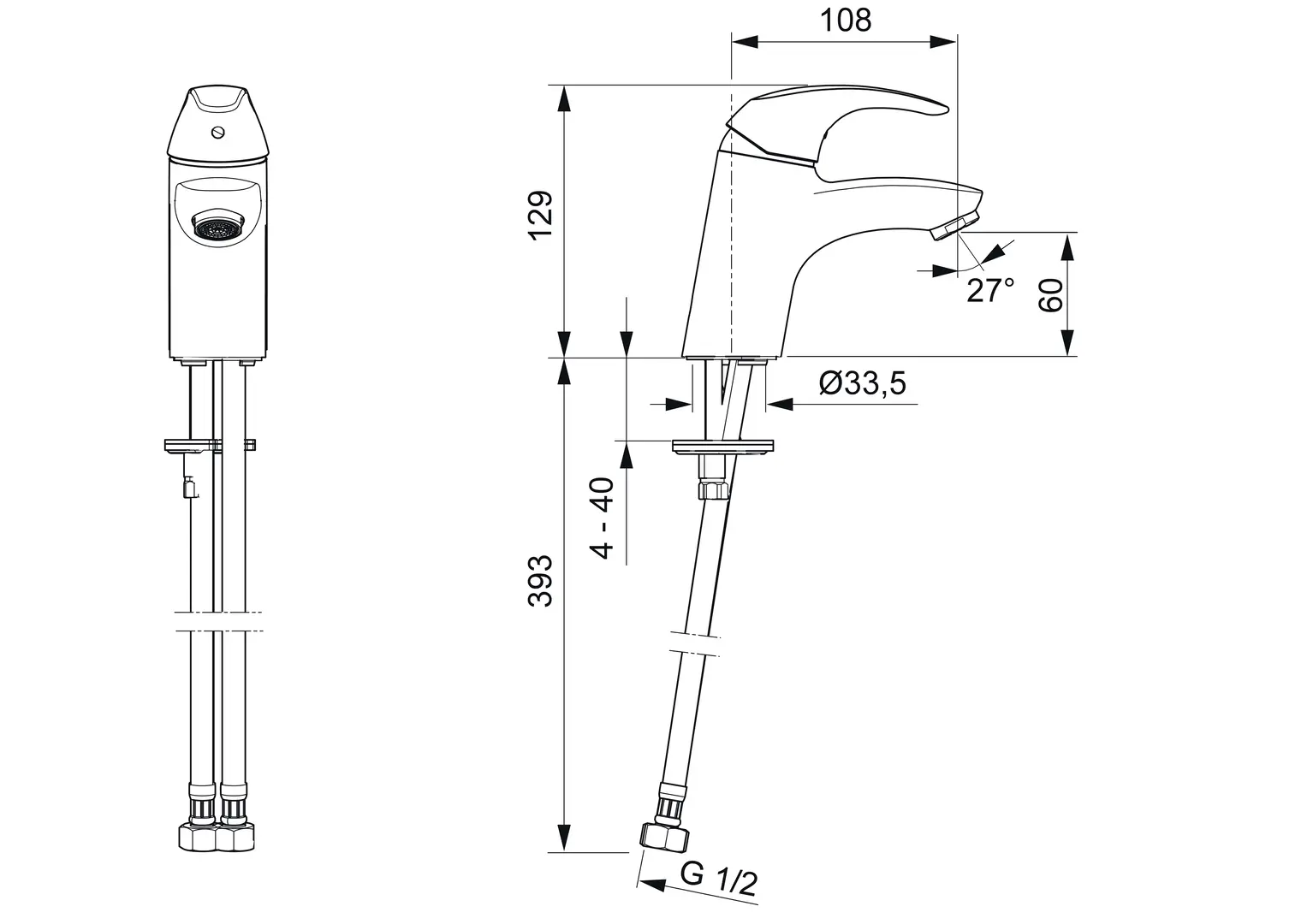

Projection
108 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
Spare Parts
Related products
HANSA
HANSA HANSAPICO Lever #59913678
Further option:
Warehouse
HANSA
HANSA Fixing screw, M8x1, L=140 #59912474
Further option:
Warehouse
HANSA
HANSA Aerator, M24x1, 6 l/min #59913727
Further option:
Warehouse
HANSA
HANSA Fixing set #59910749
HANSA
HANSA Cartridge, 3.5 Classic #59913075
Further option:
Warehouse
HANSA
HANSA Covering cap, 33x3 mm #59912504
Further option:
Warehouse
HANSA
HANSA Pop-up waste, (2019-) #59914763
Further option:
Warehouse
HANSA
HANSA Pop-up operating rod #59913214
Further option:
Warehouse
HANSA
HANSA Temperature adjustment limiter #59912325
Further option:
Warehouse
