Features
Additional features
grease without Silicon
Connection
Flexible inlet pipes
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
3S-installation system for safe and simple mounting, Inner body made of DZR brass
Spout
Swivel spout, Swivel range limiting option
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

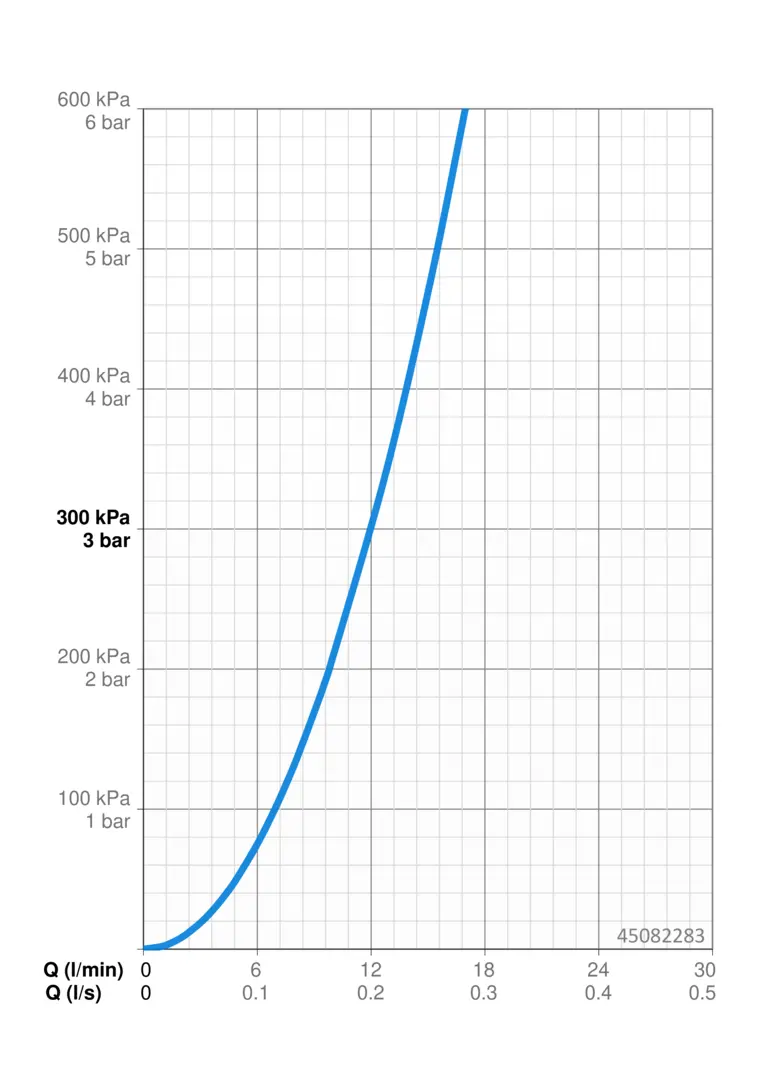

Flow attributes
Flow-rate at 3 bar
12 l/min
Technical properties
Connection size
G3/8
DN-size (nominal dimension)
DN15
Hot water supply
max. +70°C
Material
Brass

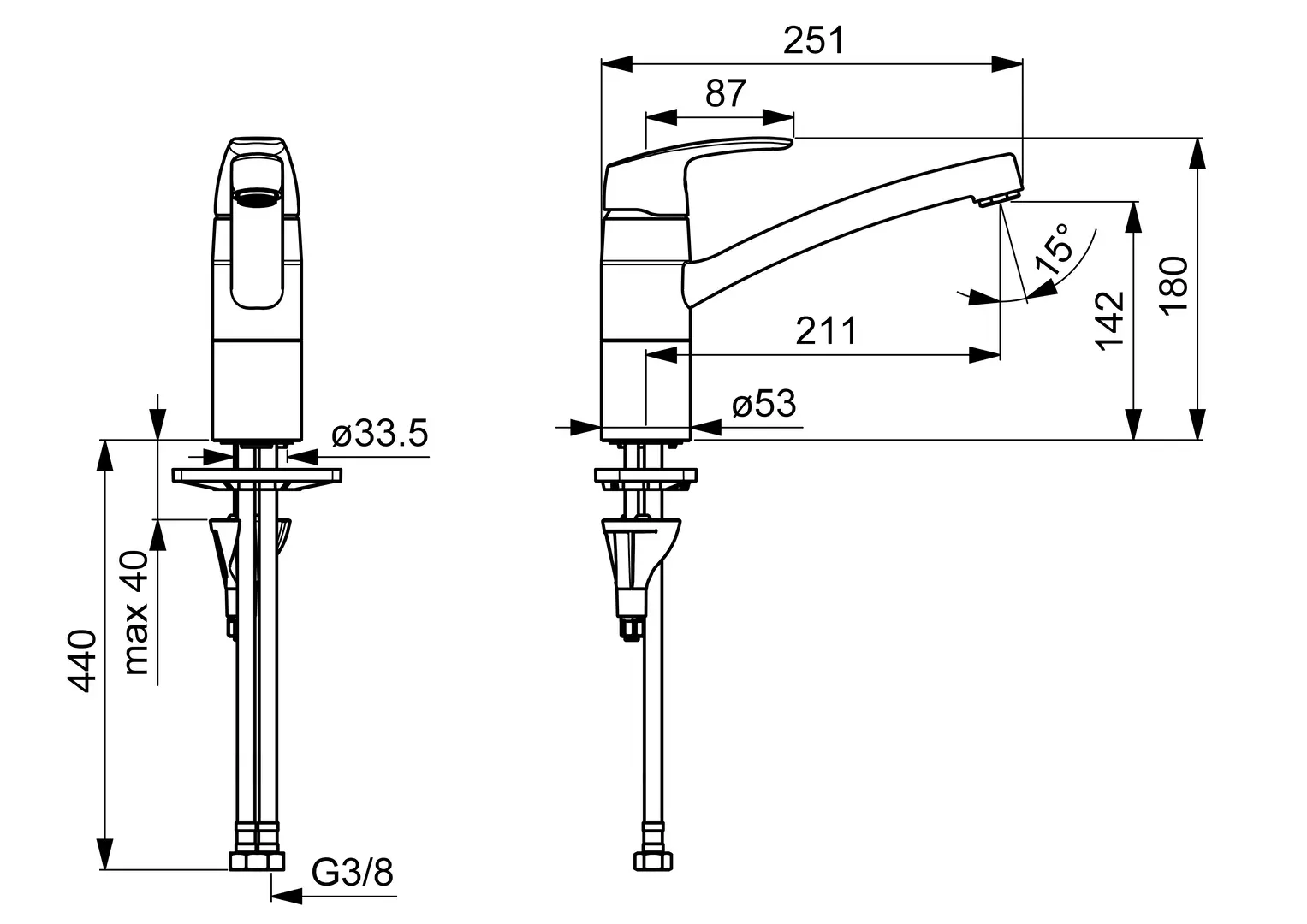

Projection
211 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822) Oras lab.
Approvals and Declarations
KIWA
K6116/08
