Features
Additional features
grease without Silicon
Aerator
Standard aerator
Connection
Flexible inlet pipes
Electronic parts
Solenoid valve, External control unit, Power supply
Lever/Handle
Single operating lever/handle, Hot/Cold symbols
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
3S-installation system for safe and simple mounting, Software settings adjustable via App
Spout
Swivel spout, Swivel range limiting option, Profile construction
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate
Software settings
Automatic flush
24 h (off/1-120 h)
Automatic flush period
30 s (1-1800 s)

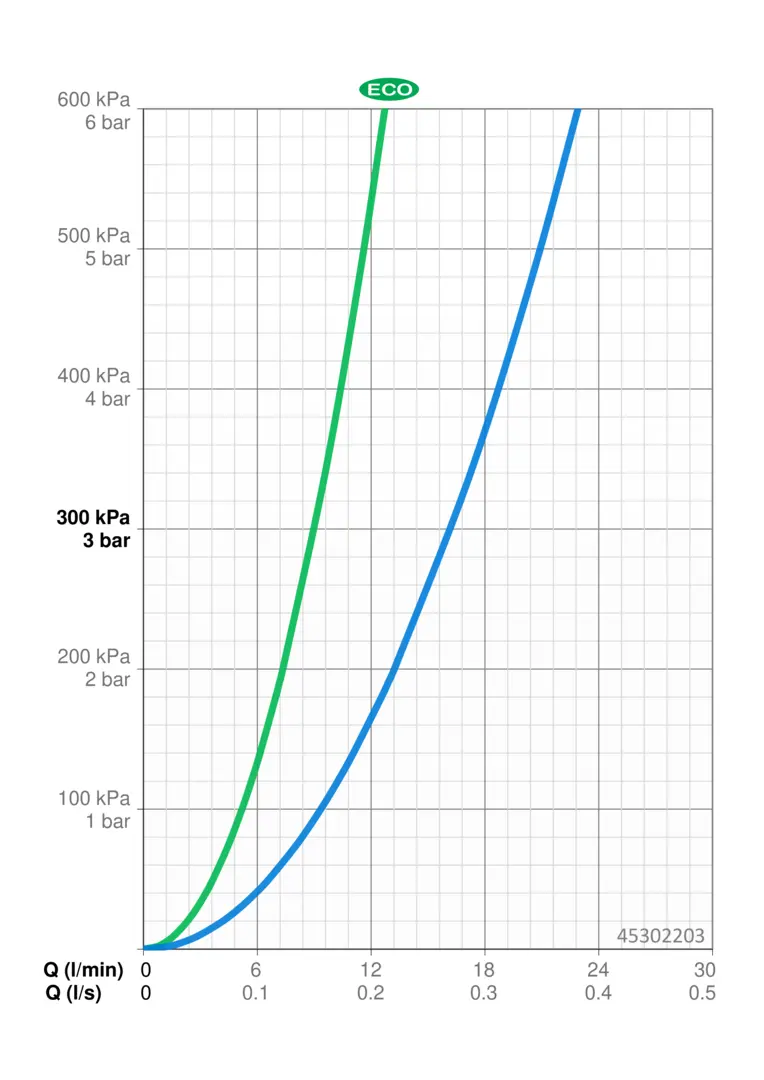

Flow attributes
Eco-flow at 3 bar
9 l/min
Flow-rate at 3 bar
16.2 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
Hot water supply
max. +70°C
Material
Brass
Projection
178 mm
Working pressure
0.5 - 5 bar
Electronics
Bluetooth version
5.x (D060576)
Electrical Connection
230 / 12 V
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 817, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
