Features
Aerator
Standard aerator
Connection
Eccentric coupling(s)
Lever/Handle
Hot/Cold symbols, Single operating lever/handle
Mechanical parts
ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Spout
Swivel spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable), The housing of the fittings conducts minimal heat
Flow attributes

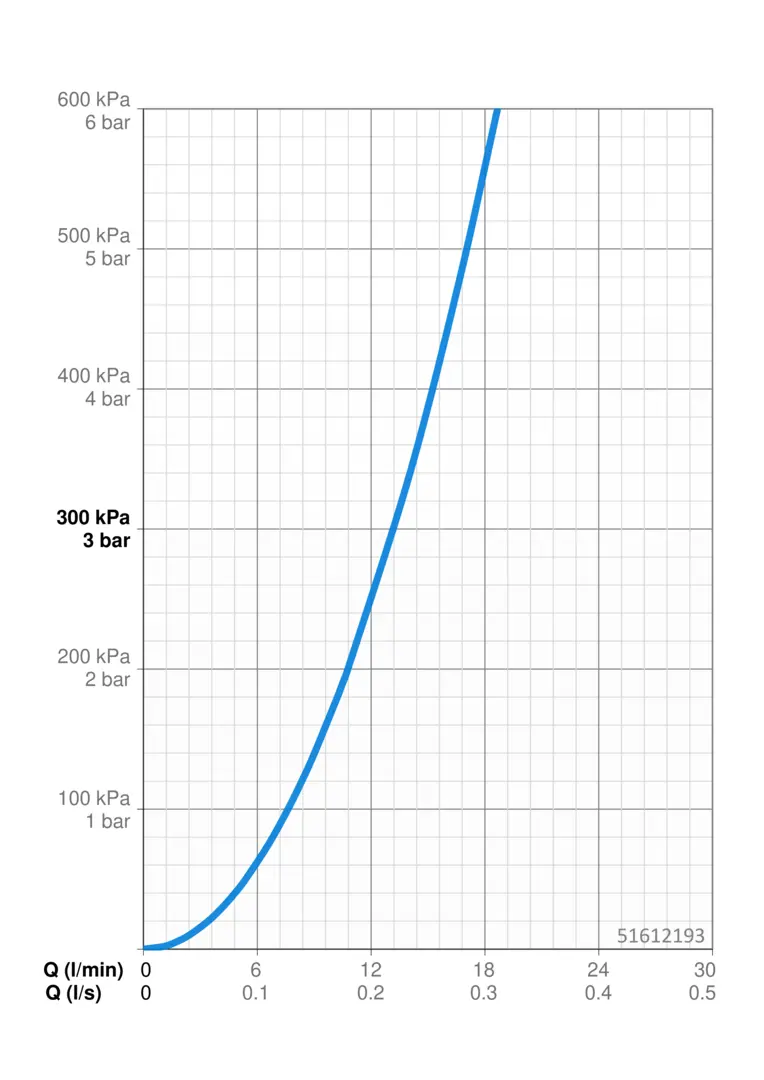

Flow-rate at 3 bar
13.2 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/4
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

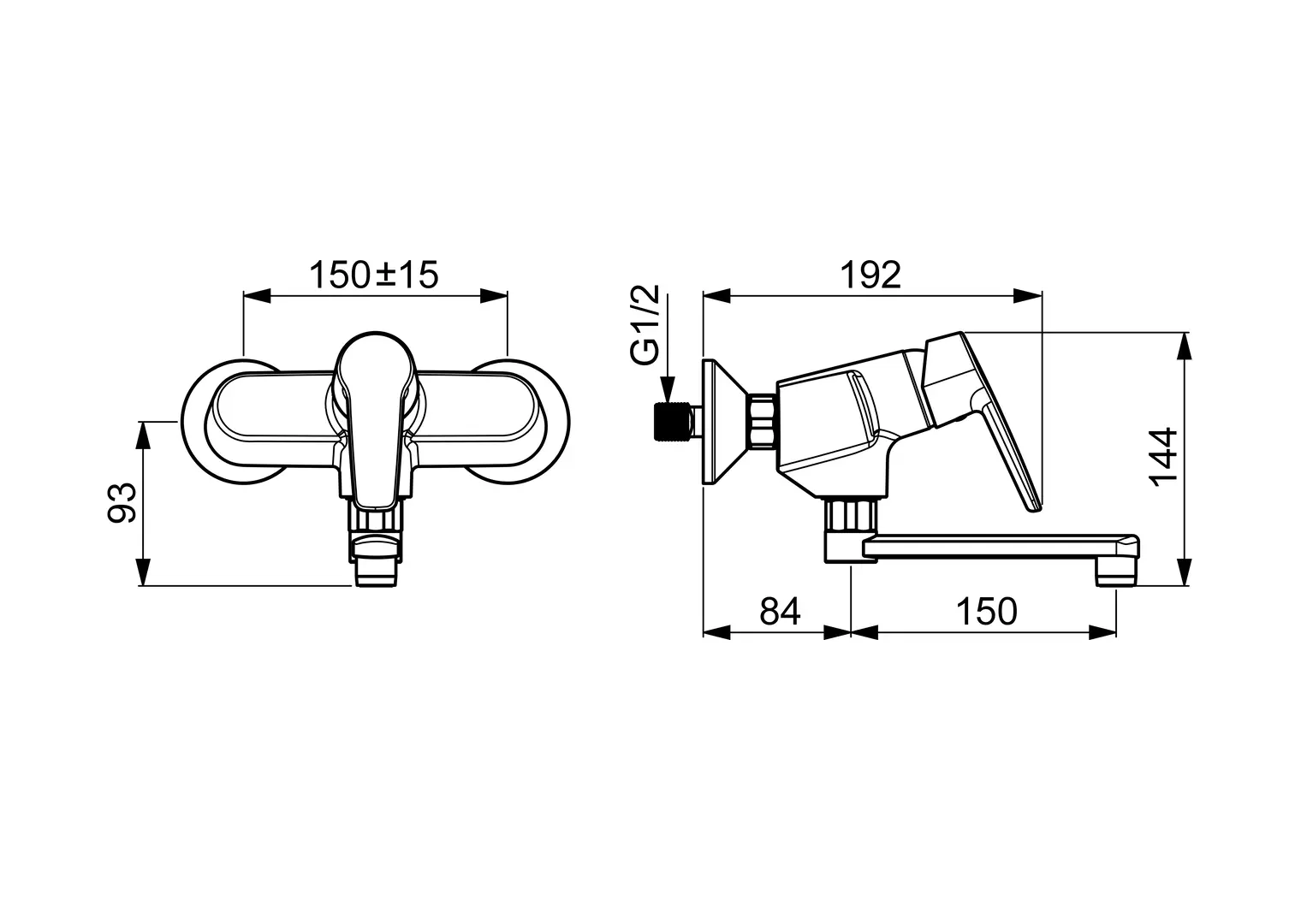

Installation width
150 ± 15 mm
Material
Brass
Projection
234 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822) HANSA lab.
Sustainability
EPD module A1 (kg CO2 eq.)
7,03
EPD module A1-A3 (kg CO2 eq.)
8,03
EPD module A2 (kg CO2 eq.)
0,34
EPD module A3 (kg CO2 eq.)
0,66
EPD module A4 (kg CO2 eq.)
0,22
EPD module B7 (kg CO2 eq.)
4078,80
EPD module C2 (kg CO2 eq.)
0,01
EPD module C3 (kg CO2 eq.)
0,02
EPD module C4 (kg CO2 eq.)
0,06
EPD module D (kg CO2 eq.)
-5,71
