Description
Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Connection
Eccentric coupling(s), Cover plate(s), Silencer(s)
Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow
Mechanical parts
Thermostatic cartridge for automatic temperature control, Litter filter(s), Ceramic head part for flow control, Non-return valve(s)
Number of spray functions
1 spray function
Shower parts
Soap dish, Shower hose (1750 mm), Eco flow control
Shower spray
Normal - Even and soft water stream
Advanced features
Inner body made of DZR brass, Thermal disinfection without cartridge readjustment, Flexible length / can be shortened
Color
Chrome
Temperature
Adjustable hot water stop (included, retrofittable), Safety stop against scalding at 38°C

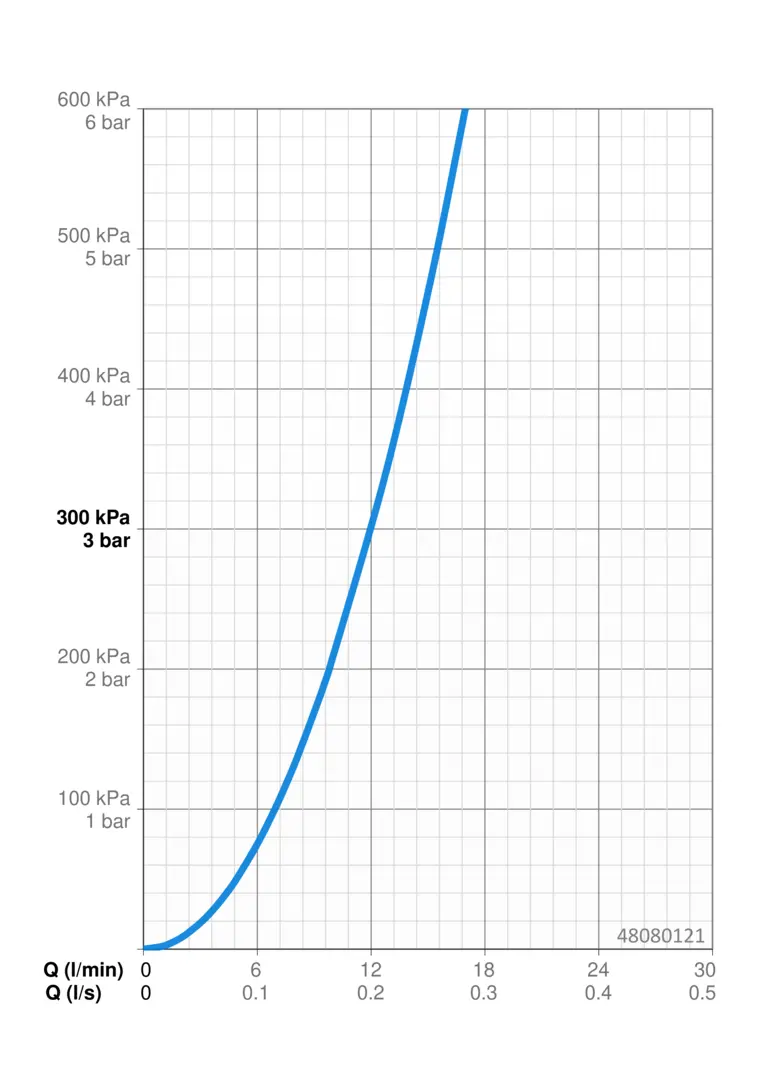

Flow attributes
Flow-rate at 3 bar
12 l/min
Technical properties
Backflow prevention (EN1717)
EB
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

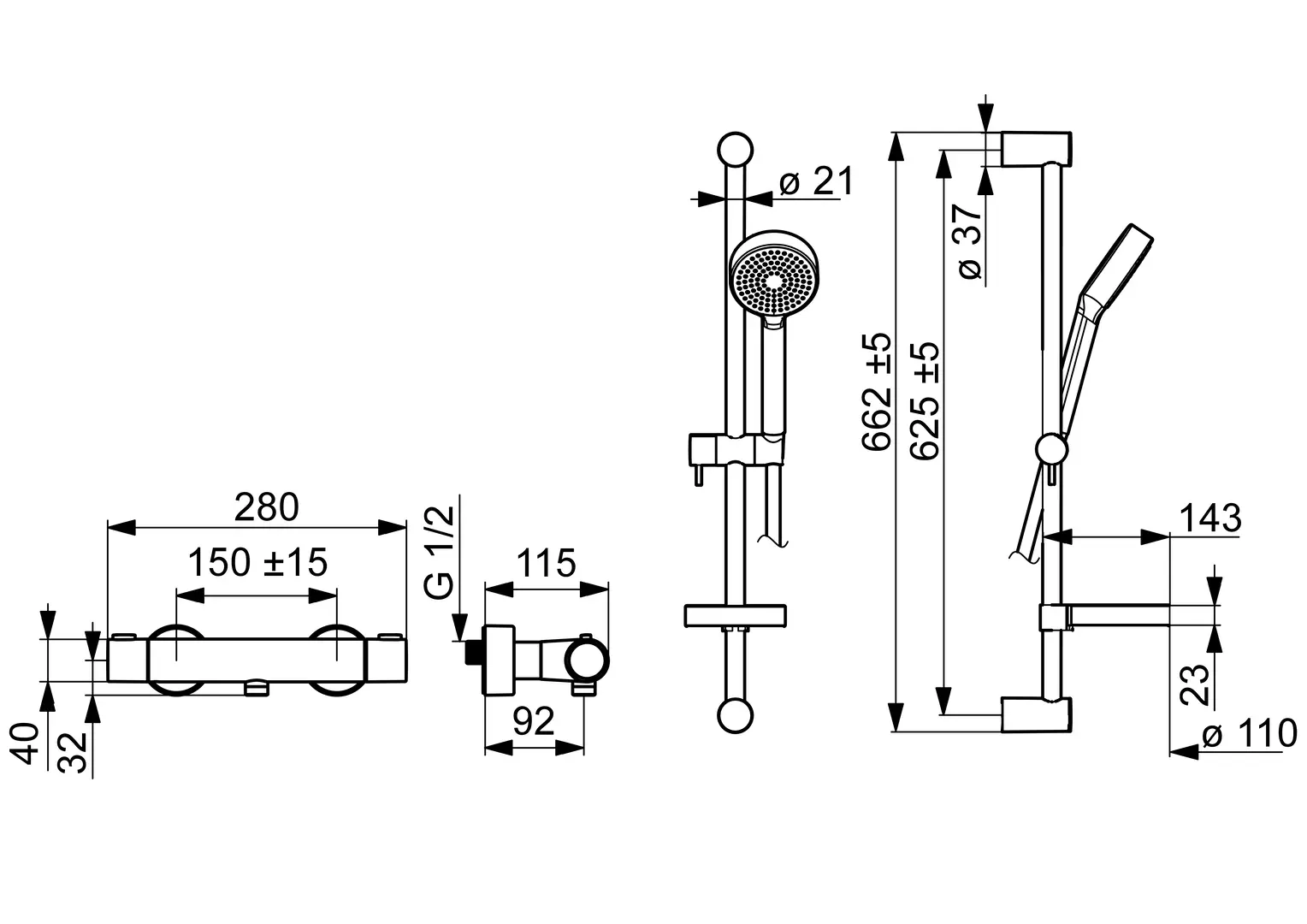

Installation width
150 ± 15 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111, EN 1112, EN 1113
