Features
Connection
Eccentric coupling(s), Cover plate(s), Silencer(s)
Lever/Handle
Temperature control handle, Flow control handle, Hot/Cold symbols, Eco feature for water flow
Mechanical parts
Ceramic head part for flow control, Thermostatic cartridge for automatic temperature control, Non-return valve(s), Litter filter(s)
Number of spray functions
3 spray functions
Shower parts
Hand shower, Shower rail, Adjustable shower rail bracket, Soap dish, Shower hose (1750 mm), Variable fixing points, Anti limescale technology (easy to clean), Twist guard for shower hose
Shower spray
Pulsating - Strong water stream for massage or body treatment, Intense - invigorating water stream, Relaxing - Soft water stream, pleasant for entire body
Advanced features
Inner body made of DZR brass, Flexible length / can be shortened, Anti-twist hose connector
Color
Chrome
Temperature
Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

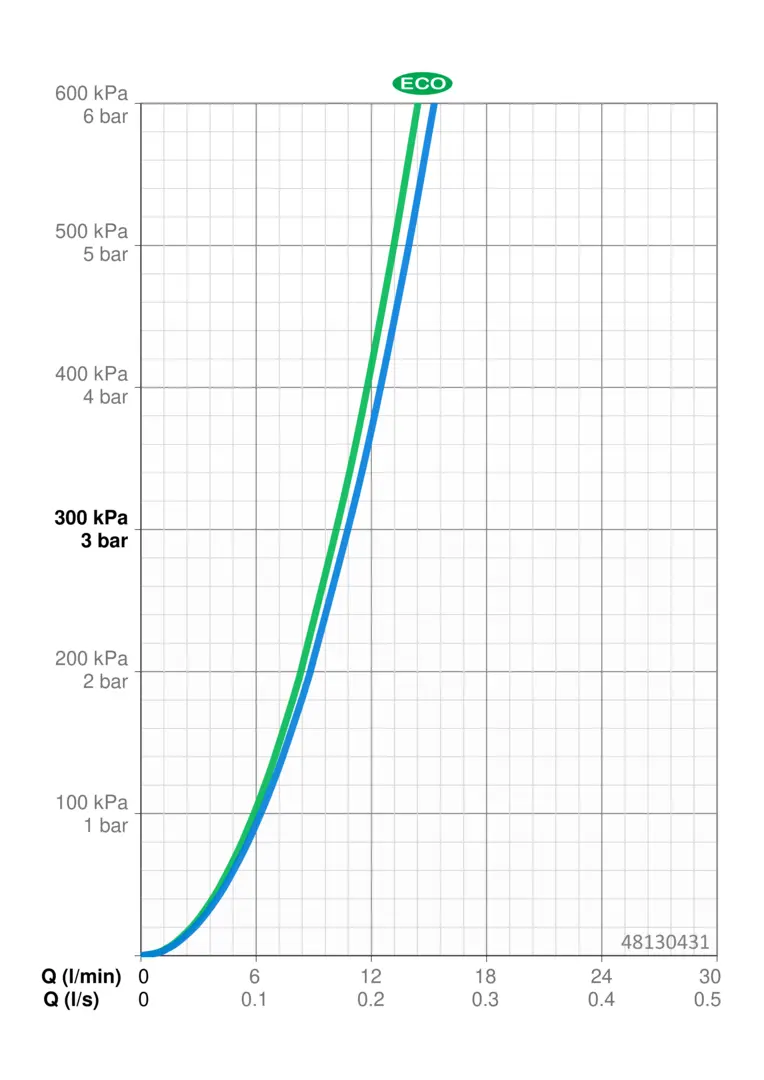

Flow attributes
Eco-flow at 3 bar
10.2 l/min
Flow-rate at 3 bar
10.8 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
Hot water supply
max. +65°C
Installation width
150 ± 15 mm
Length / Height
970 mm
Material
Brass/Plastic
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111, EN 1112, EN 1113
Noise class
I (ISO 3822)
Sustainability
EPD module A1 (kg CO2 eq.)
13,68
EPD module A1-A3 (kg CO2 eq.)
15,84
EPD module A2 (kg CO2 eq.)
0,71
EPD module A3 (kg CO2 eq.)
1,44
EPD module A4 (kg CO2 eq.)
0,42
EPD module B7 (kg CO2 eq.)
1968,60
EPD module C2 (kg CO2 eq.)
0,03
EPD module C3 (kg CO2 eq.)
0,03
EPD module C4 (kg CO2 eq.)
0,87
EPD module D (kg CO2 eq.)
-10,35
