Features
Diverter
Turn operated diverter
Concealed parts
BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º, Function unit, Fastening of the function unit with screws, Sleeve, Soft edge rosette
Lever/Handle
Single operating lever/handle, Hot/Cold symbols
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate
Flow attributes

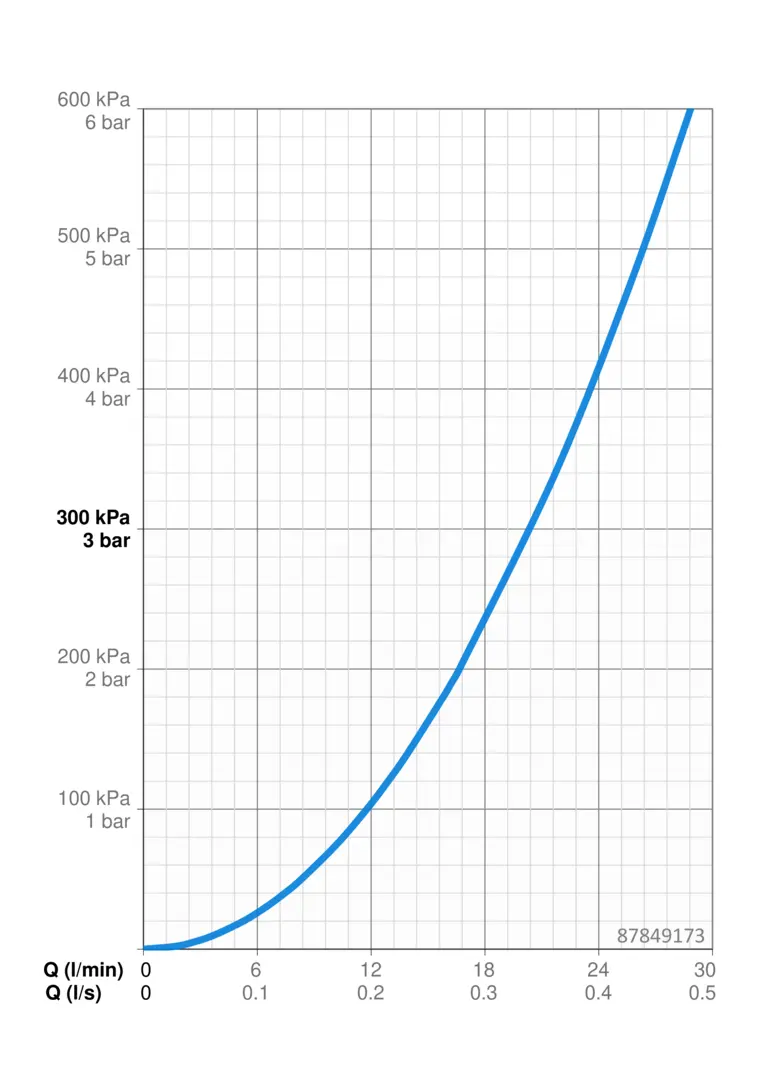

Flow-rate at 3 bar
20.4 / 20.4 l/min
Technical properties
Connection size
G1/2
Hot water supply
max. +80°C
Material
Brass
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
