Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Aerator
Standard aerator
Connection
Eccentric coupling(s)
Diverter
Pull operated diverter, Automatic reset
Lever/Handle
Temperature control handle, Flow control handle, Eco feature for water flow
Mechanical parts
Thermostatic cartridge for automatic temperature control, Ceramic head part for flow control, Non-return valve(s), Litter filter(s)
Shower parts
Eco flow control
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Chrome
Temperature
The housing of the fittings conducts minimal heat, Safety stop against scalding at 38°C

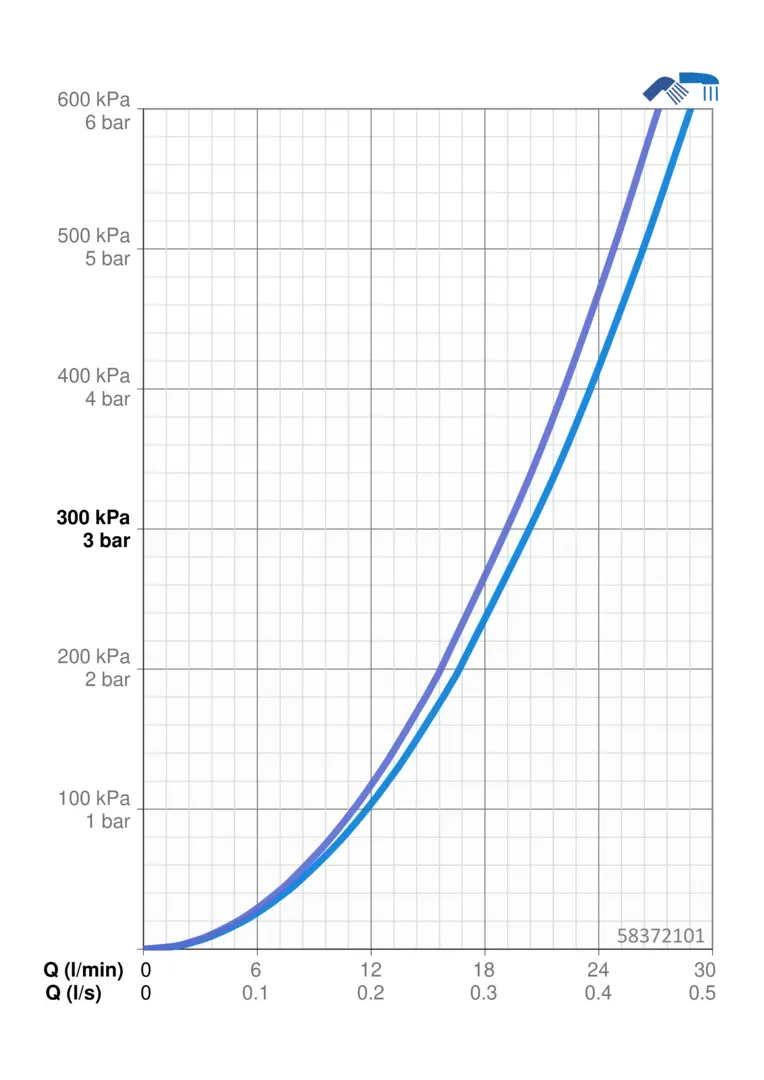

Flow attributes
Flow-rate at 3 bar
20.4 / 19.2 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G1/2
DN-size (nominal dimension)
DN15
Hot water supply
max. +80°C

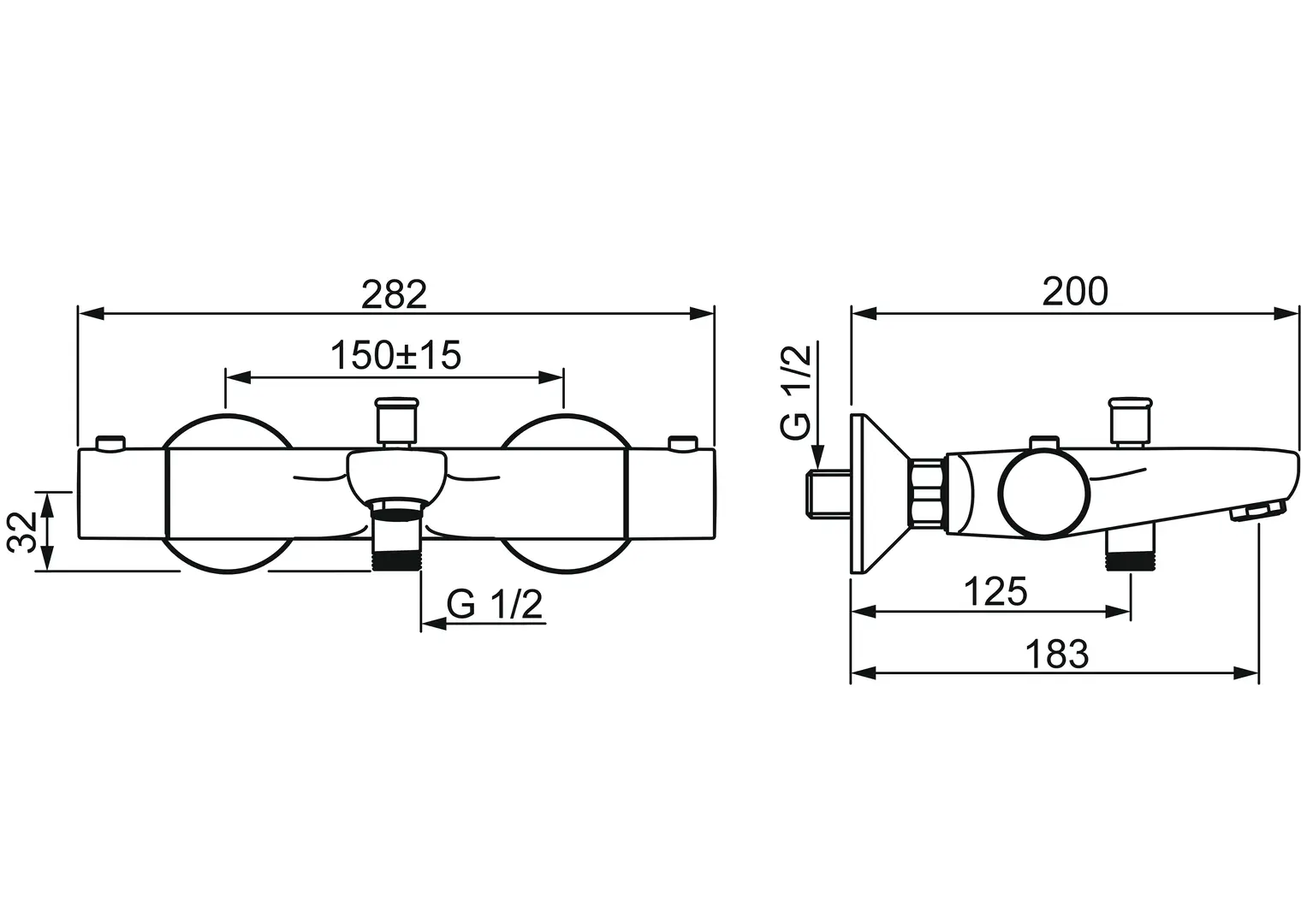

Installation width
cc150 ± 15 mm
Material
Brass
Projection
180 mm
Working pressure
1 - 10 bar
Regulations
EN standard
EN 1111
Noise class
I (ISO 3822)
