Features
Additional features
protected against back-flow in domestic use (according to DIN EN 1717)
Aerator
Standard aerator
Connection
Eccentric coupling(s), Cover plate(s)
Diverter
Pull operated diverter, Automatic reset
Lever/Handle
Single operating lever/handle, Pin shape, Hot/Cold symbols
Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Matt black
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

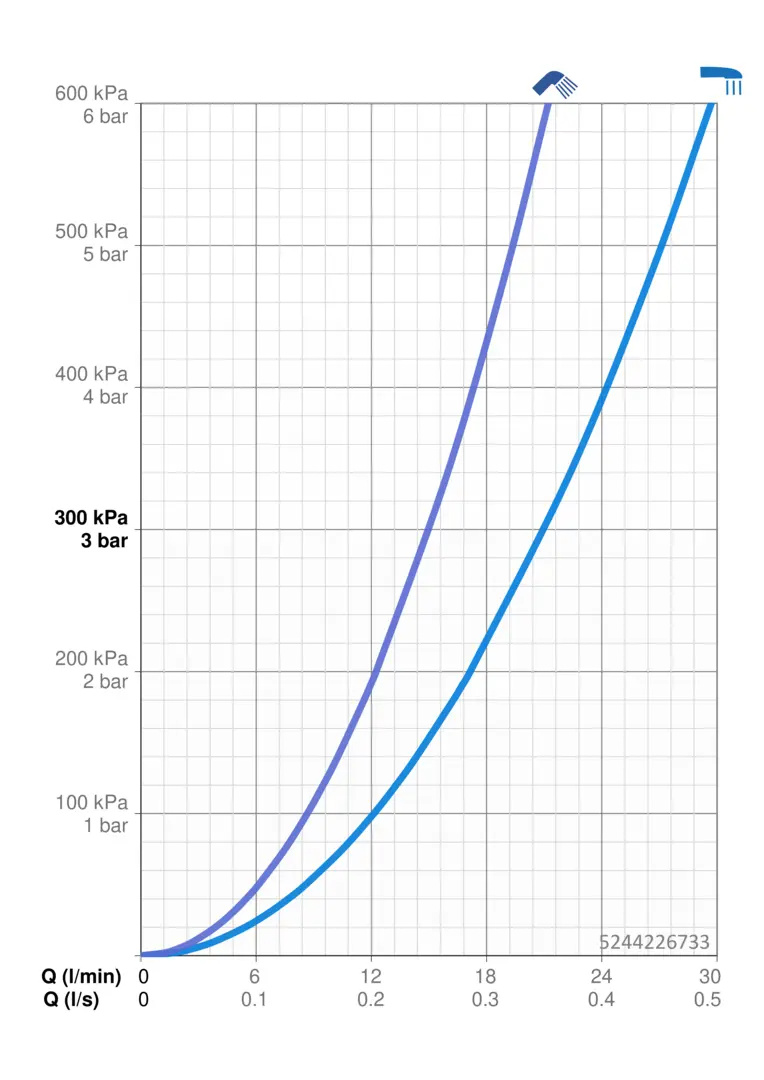

Flow attributes
Flow-rate at 3 bar
21 / 15 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/4
Hot water supply
max. +80°C
Installation width
150 ± 15 mm
Material
Brass
Projection
154 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Noise class
II (ISO 3822)
