Description
Features
Diverter
Turn operated diverter
Concealed parts
Round rosette, Fastening of the function unit with screws, BLUECLICK for an easy, screwless trim plate installation, BLUETUNE alignment after installation of +/- 3,5º
Lever/Handle
Hot/Cold symbols, Pin shape, Single operating lever/handle
Mechanical parts
Vacuum breaker, Non-return valve(s), ø 35 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

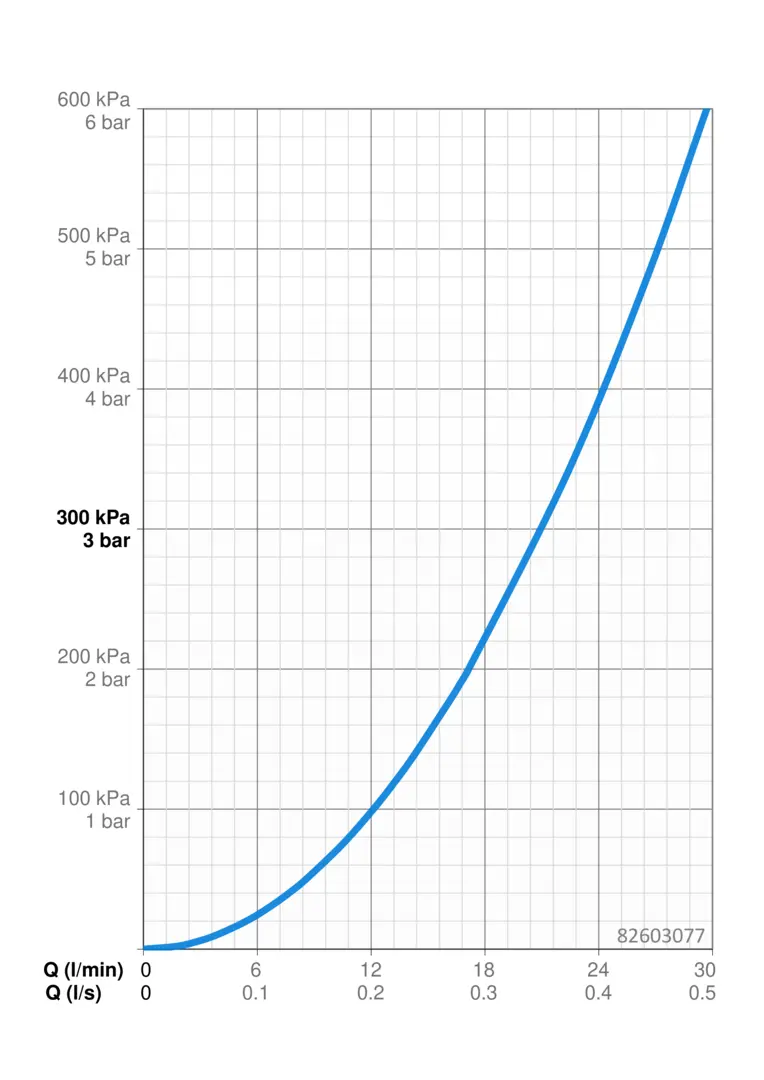

Flow attributes
Flow-rate at 3 bar
21 / 21 l/min
Technical properties
Backflow prevention (EN1717)
HD
Hot water supply
max. +80°C
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
