Features
Aerator
PCA® - constant flow rate regardless of pressure variations
Concealed parts
Rosette plate frame, Square rosette
Lever/Handle
Single operating lever/handle, Pin shape, Hot/Cold symbols
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)

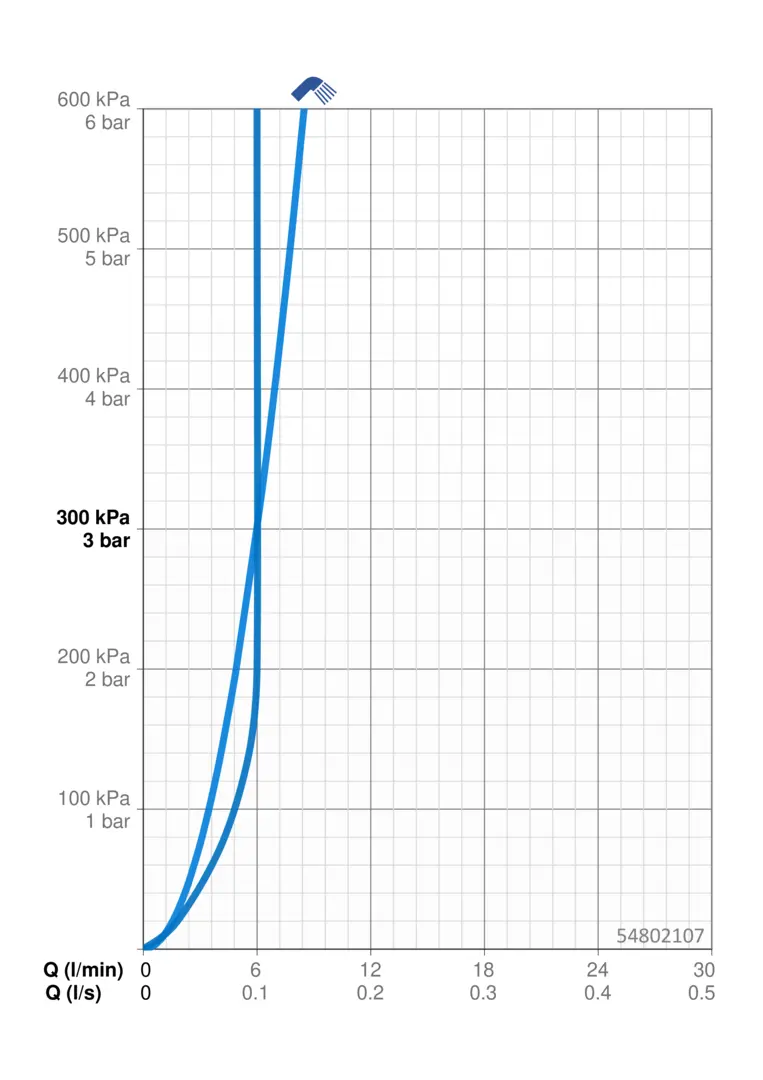

Flow attributes
Flow-rate at 3 bar
6 l/min
Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G1/2
Hot water supply
max. +80°C
Material
Brass

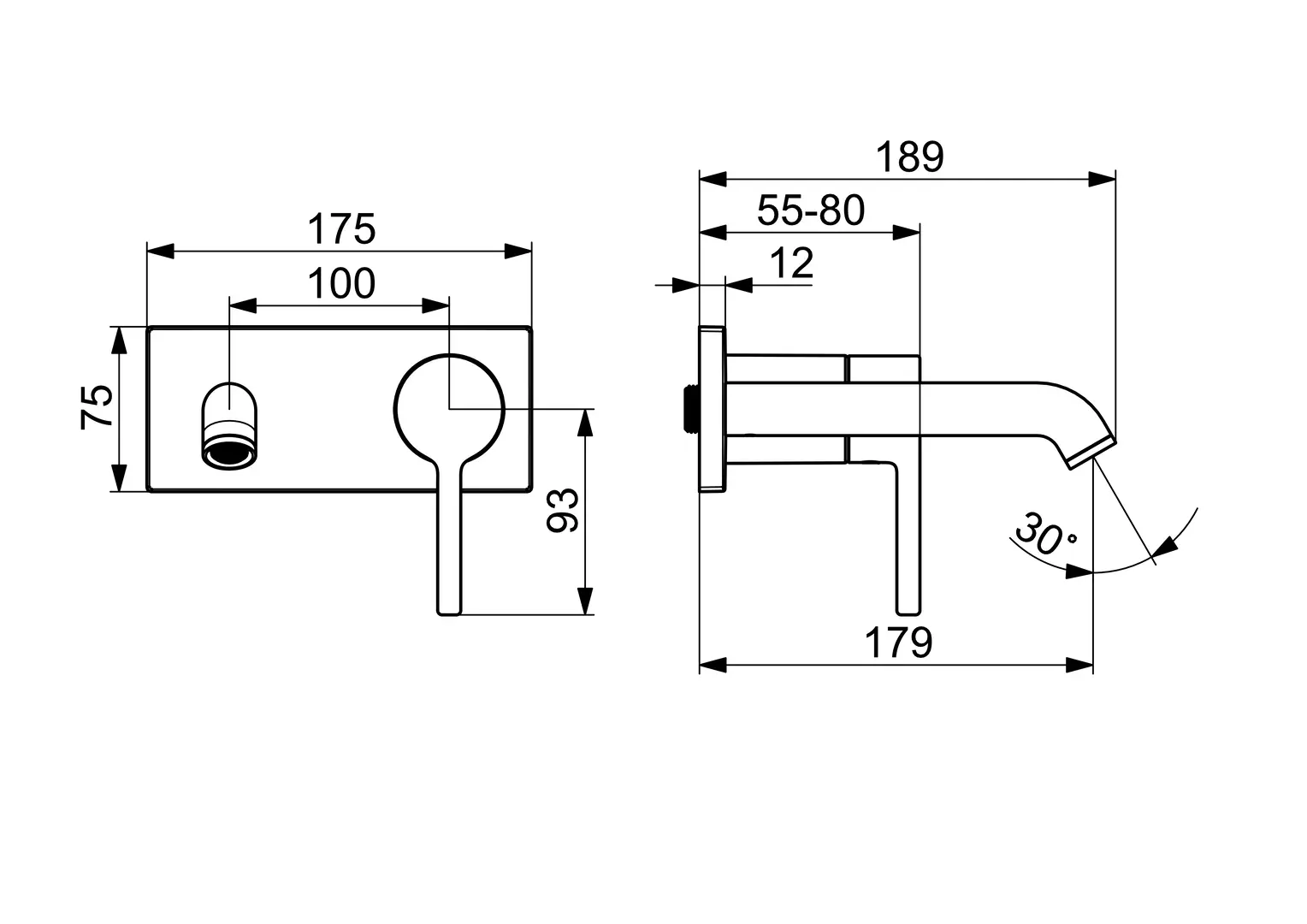

Projection
179 mm
Working pressure
0.5 - 10 bar
Regulations
EN standard
EN 817
Sustainability
EPD module A1 (kg CO2 eq.)
8,31
EPD module A1-A3 (kg CO2 eq.)
13,70
EPD module A2 (kg CO2 eq.)
0,26
EPD module A3 (kg CO2 eq.)
5,18
EPD module A4 (kg CO2 eq.)
0,23
EPD module B7 (kg CO2 eq.)
1158,00
EPD module C2 (kg CO2 eq.)
0,01
EPD module C3 (kg CO2 eq.)
0,01
EPD module C4 (kg CO2 eq.)
0,18
EPD module D (kg CO2 eq.)
-4,24
