Features
Aerator
Standard aerator, PCA® - constant flow rate regardless of pressure variations
Connection
Flexible inlet pipes
Electronic parts
Advanced PSD sensor, Solenoid valve, Low battery indicator
Lever/Handle
Single operating lever/handle, Hot/Cold symbols
Mechanical parts
ø 30 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Spout
Swivel spout
Color
Matt black
Temperature
Limitation option for maximum temperature and flow-rate, Adjustable hot water stop (included, retrofittable)
Software settings
Automatic flush
off (off/1-120 h)
Automatic flush period
30 s (1-1800 s)
Max. flow period
10 s (1-1800s)
Flow attributes

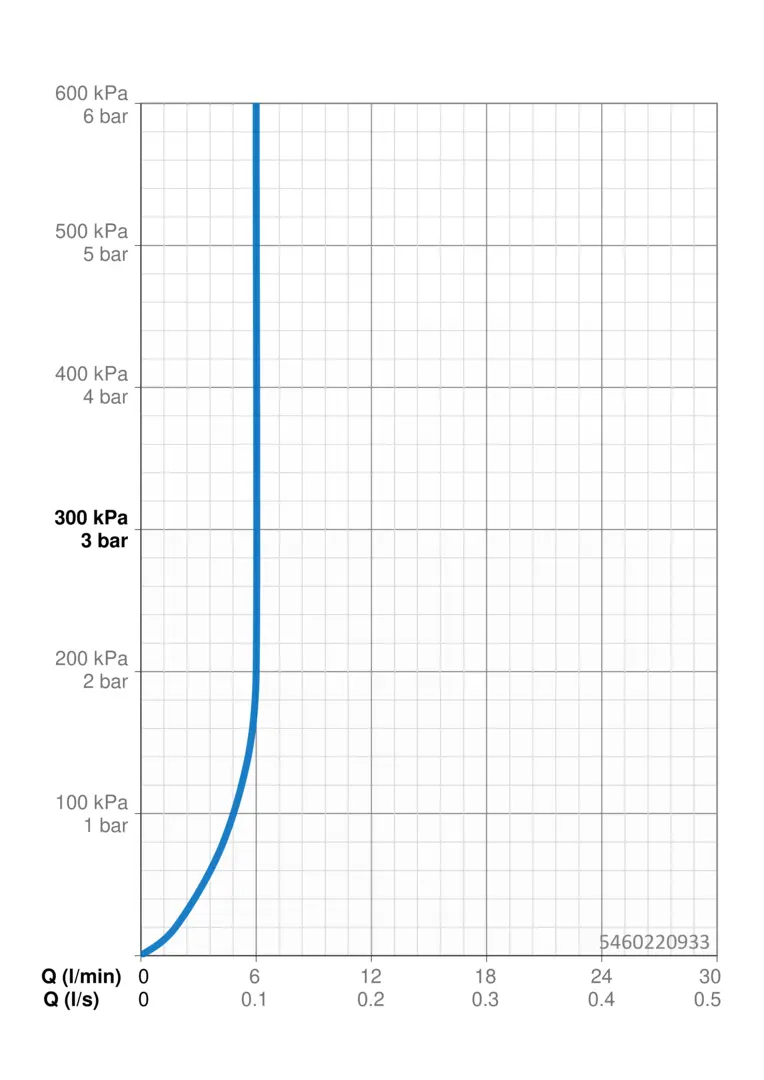

Flow-rate at 3 bar (with flow controller)
6 l/min
Technical properties
Backflow prevention (EN1717)
EB
Connection size
G3/8
Hot water supply
max. +70°C
Material
Brass
Projection
147 mm
Working pressure
1 - 10 bar
Electronics
Battery
AA 1.5 V Lithium x 2
Bluetooth version
5.x (D060576)
Regulations
EU Directives
Radio Equipment Directive 2014/53/EU , Low Voltage Directive 2014/35/EU , EMC Directive 2014/30/EU , RoHS Directive 2011/65/EU
EN standard
EN 817, EN 15091, ETSI EN 301 489-1 V1.9.2 , ETSI EN 300 328 v2.2.2 , EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011+AC:2012 , EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
Noise class
I (ISO 3822)
Protection class
IP 55
Sustainability
EPD module A1 (kg CO2 eq.)
13,32
EPD module A1-A3 (kg CO2 eq.)
14,51
EPD module A2 (kg CO2 eq.)
0,65
EPD module A3 (kg CO2 eq.)
0,53
EPD module A4 (kg CO2 eq.)
0,40
EPD module B7 (kg CO2 eq.)
930,00
EPD module C2 (kg CO2 eq.)
0,03
EPD module C3 (kg CO2 eq.)
0,03
EPD module C4 (kg CO2 eq.)
0,52
EPD module D (kg CO2 eq.)
-9,79
