Features
Aerator
Standard aerator, Laminar stream
Connection
Flexible inlet pipes
Extensions
Pop-up waste with draw-rod
Lever/Handle
Single operating lever/handle, Pin shape, Hot/Cold symbols
Mechanical parts
ø 30 mm ceramic cartridge for flow and temperature control
Advanced features
Inner body made of DZR brass
Spout
Fixed spout
Color
Chrome
Temperature
Limitation option for maximum temperature and flow-rate
Technical properties
Backflow prevention (EN1717)
AA
Connection size
G3/8
Hot water supply
max. +70°C
Material
Brass

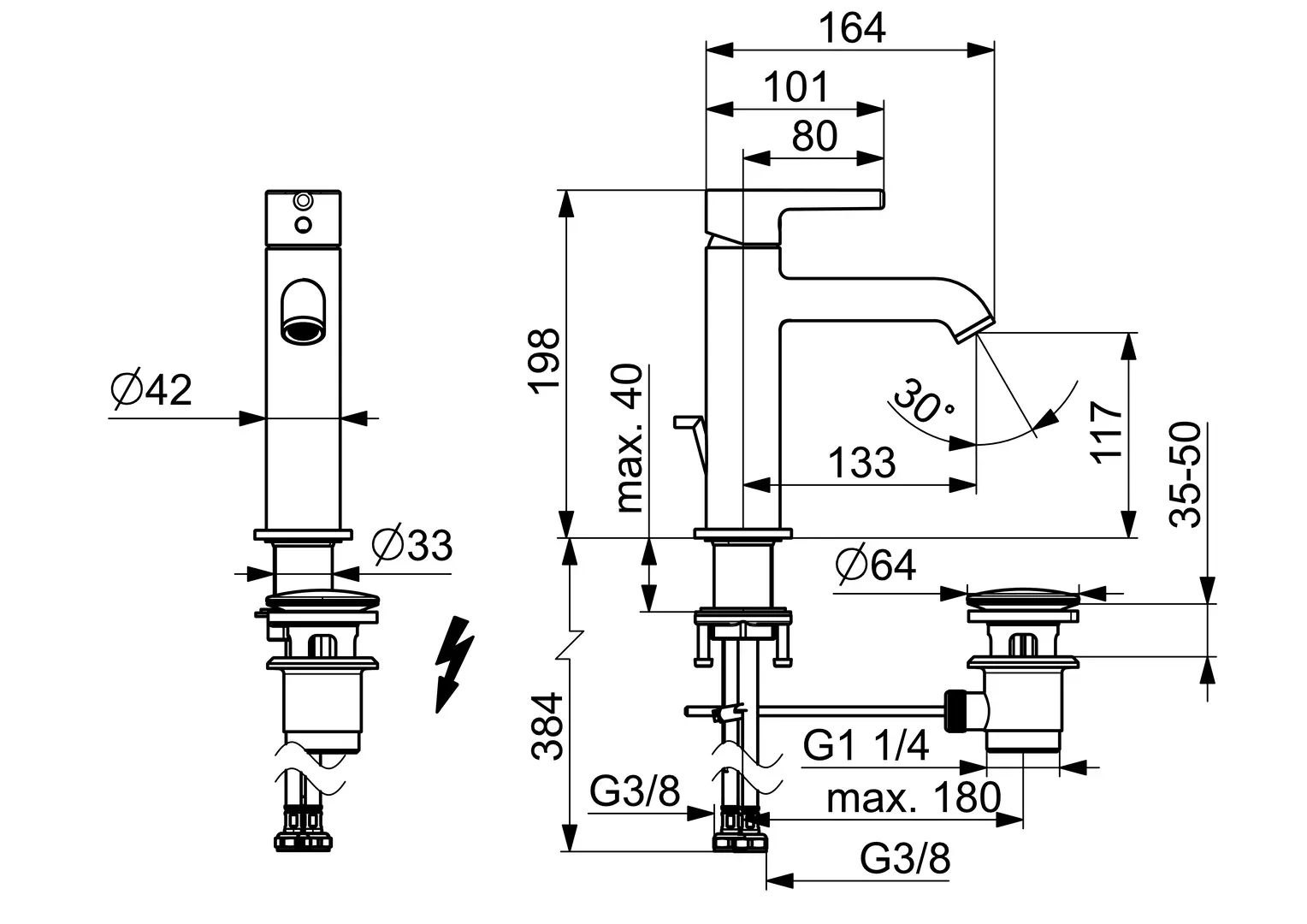

Projection
133 mm
Working pressure
0.5 - 5 bar
Regulations
EN standard
EN 817
Noise class
I (ISO 3822)
