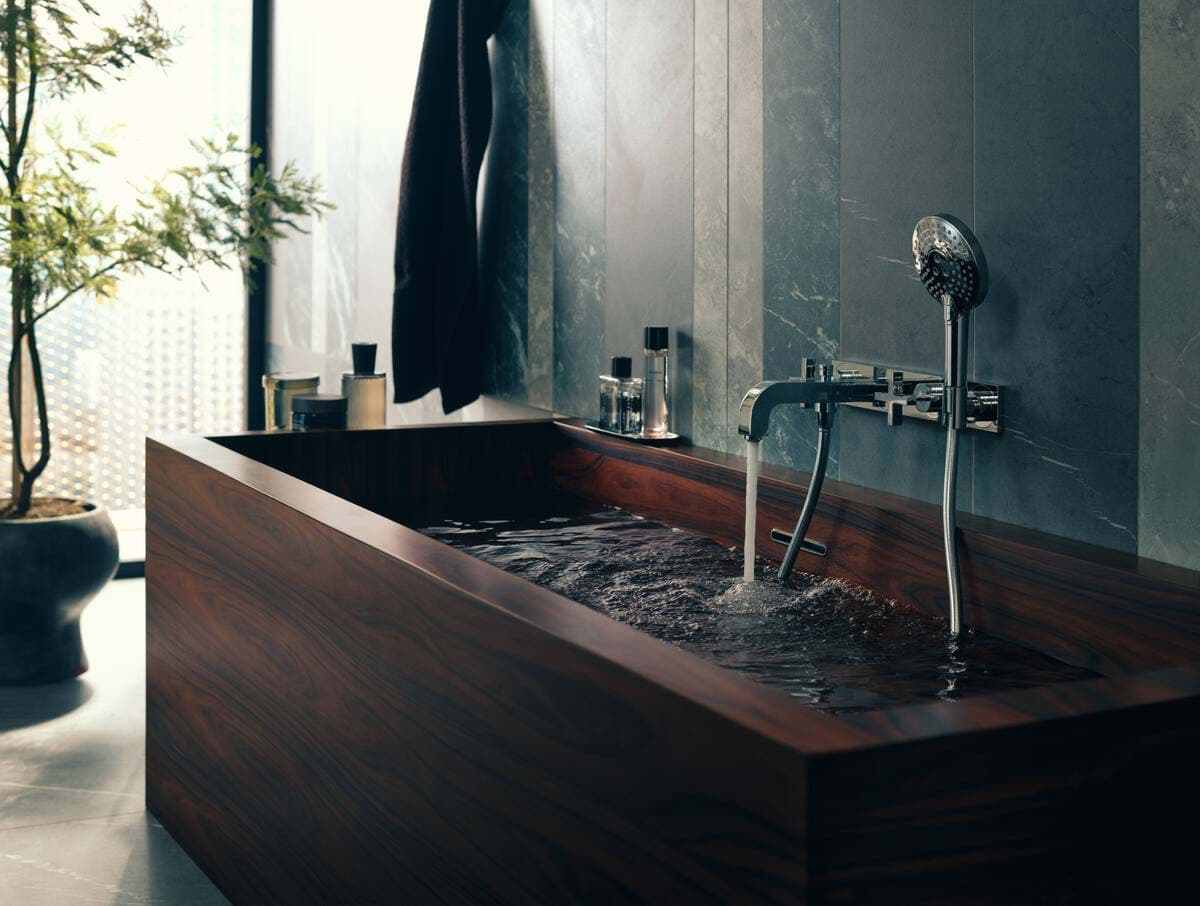

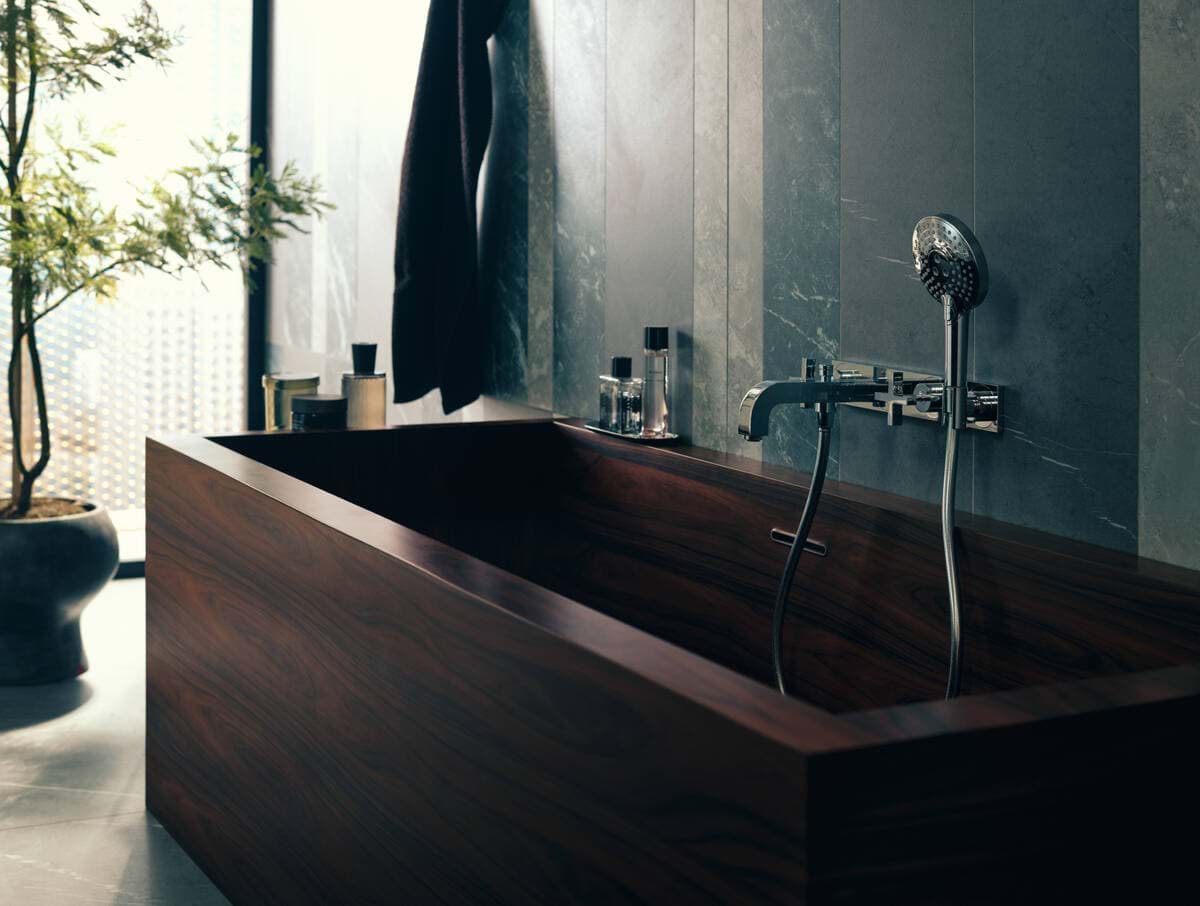

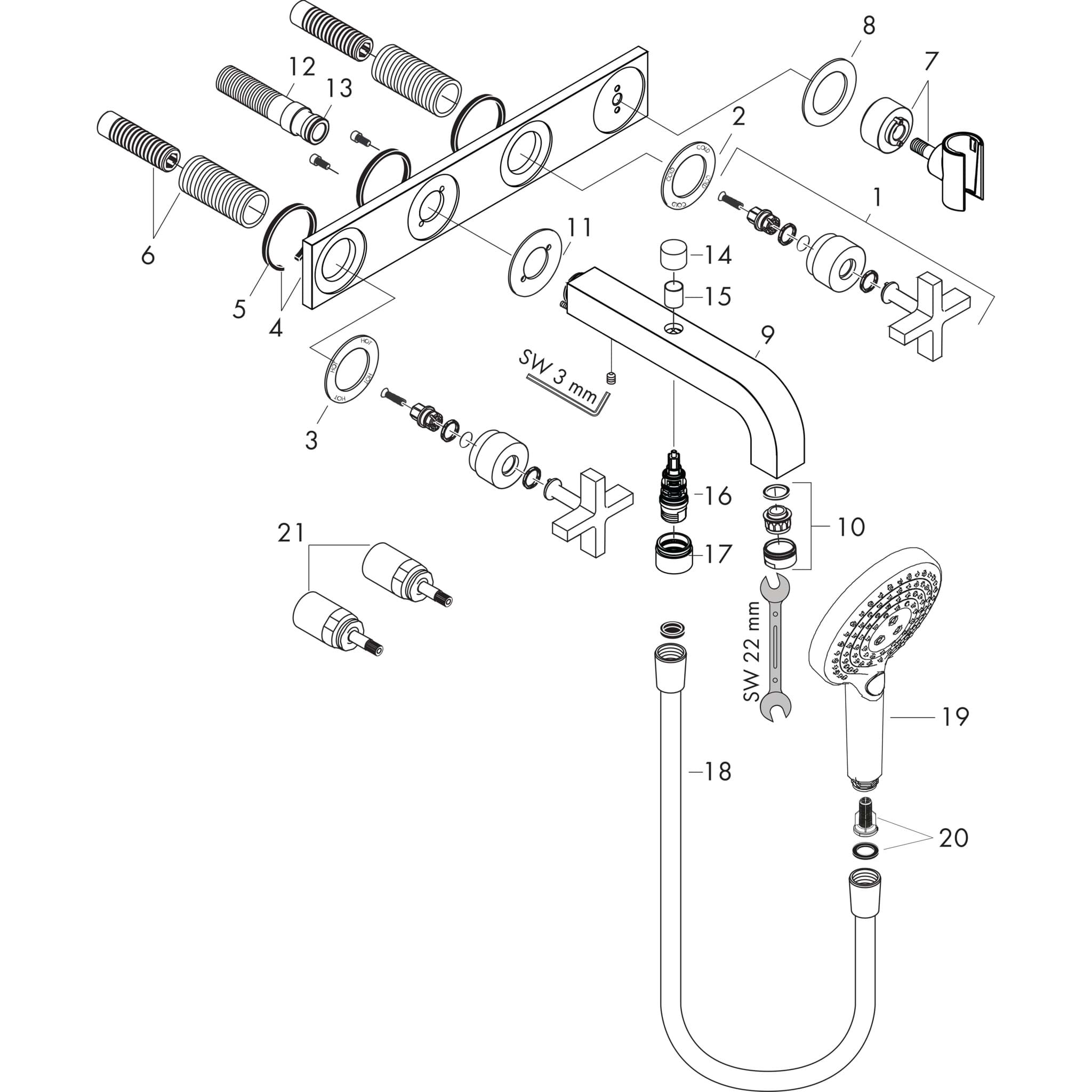

consists of: 3-hole bath mixer, hand shower, shower holder, shower hose
2 functions
projection: 222 mm
spray type mixer: normal spray
spray type hand shower: Rain, RainAir, WhirlAir
maximum flow rate at 3 bar: 22,5 l/min
flow rate for bath spout at 3 bar: 22,5 l/min
flow rate of hand shower at 3 bar: 20 l/min

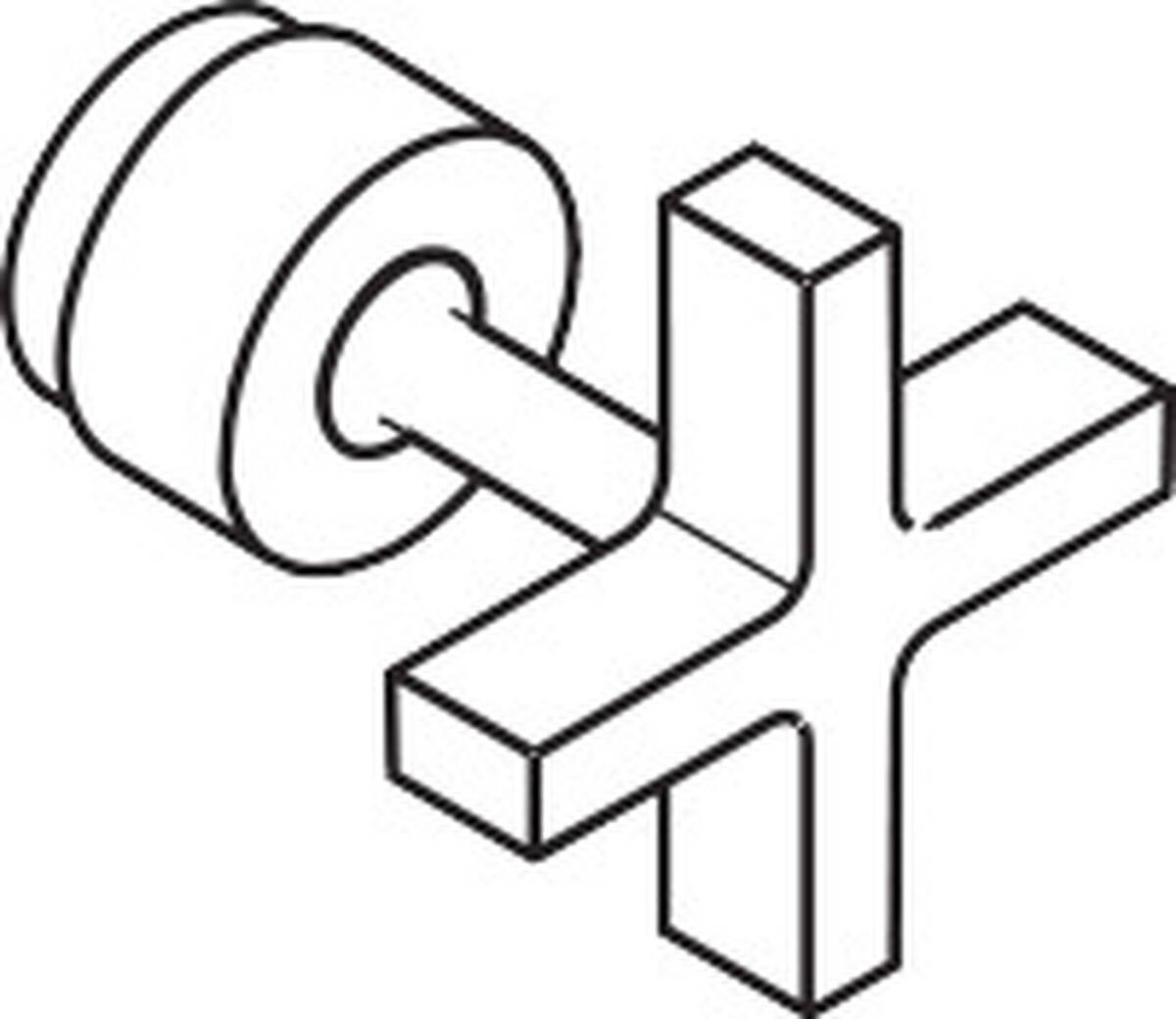

ceramic valves hot/cold 90°
diverter with automatic resetting
non-return valve
connection dimension: DN15
connection type: basic set
wall-mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar
no additional maintenance opening required
