Description
consists of: bath thermostat floor standing, baton hand shower, shower hose, shower holder
projection 190 mm
2 functions
diversion between outlets via diverter knob
thermostat cartridge, ceramic valves 180°
spray type mixer: laminar spray
maximum flow rate at 3 bar: 19 l/min
flow rate for bath spout at 3 bar: 19 l/min
flow rate of hand shower at 3 bar: 15 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
with automatic resetting
connection dimension: DN15
connection type: basic set
deck mounted
spray type hand shower: Rain, MonoRain

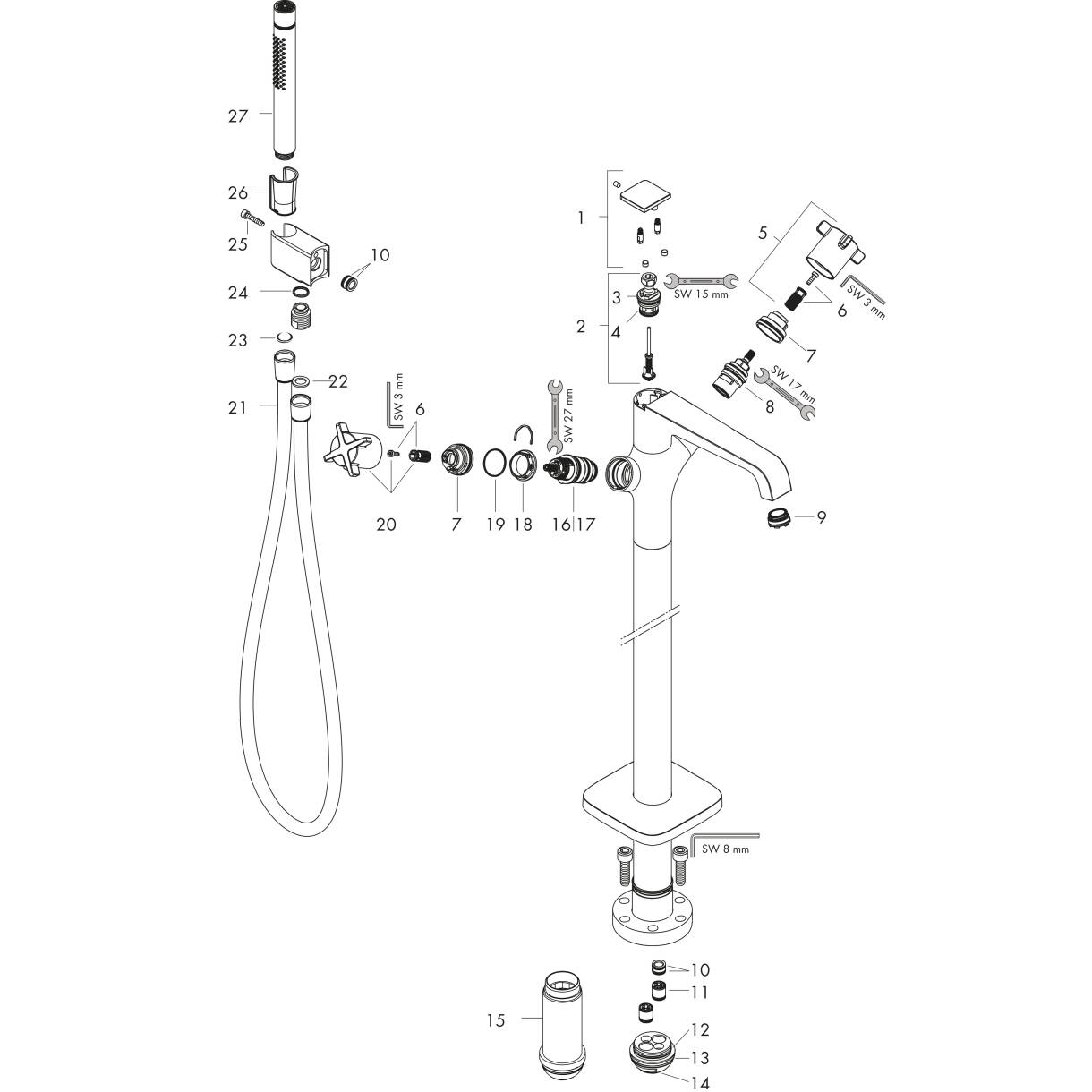

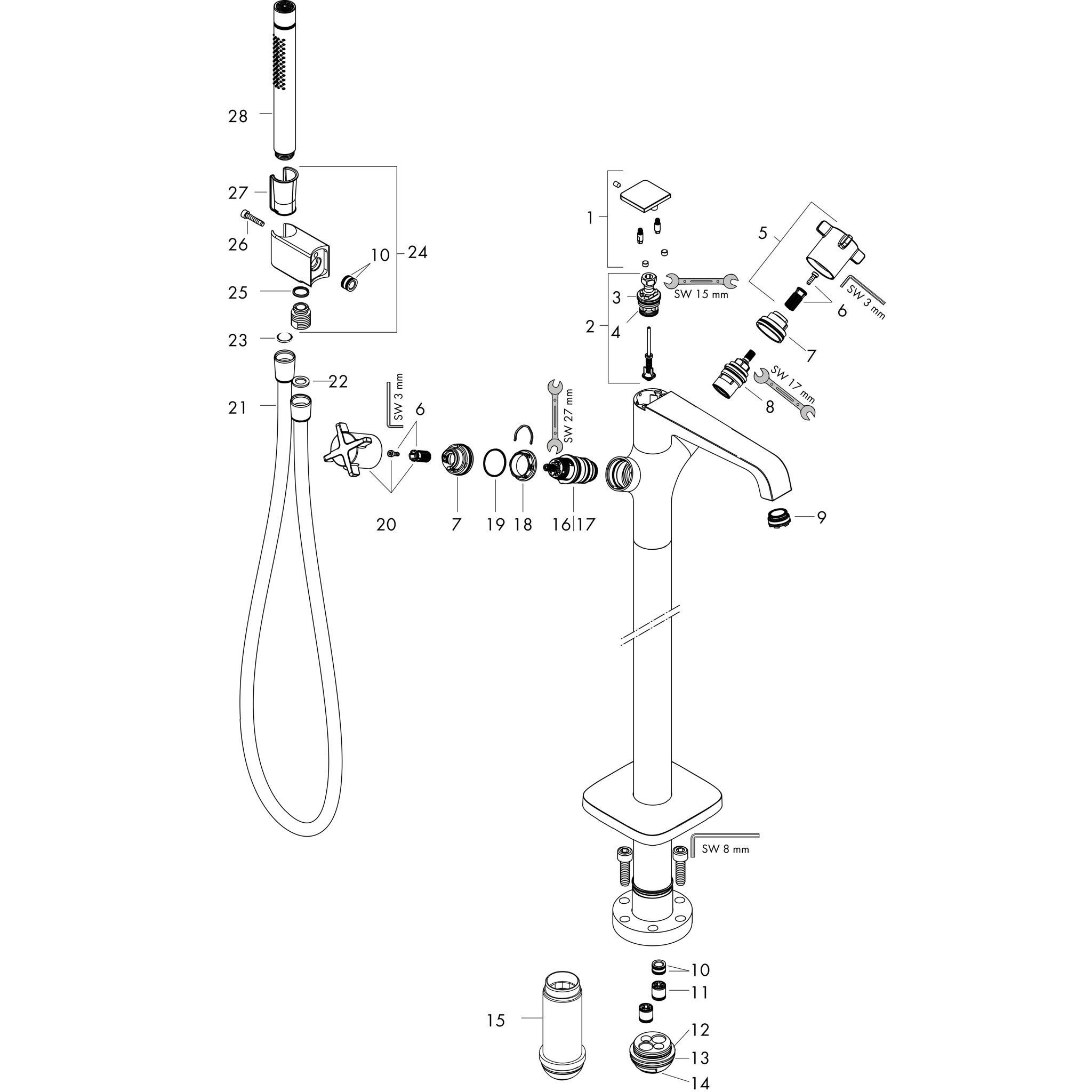

Spare Parts
Related products
Hans Grohe
HANSGROHE Extension 60 mm #92135000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Screw M5x25mm #97664000
Further option:
Warehouse
Hans Grohe
HANSGROHE Pull knob #92364820 - Brushed nickel
Hans Grohe
HANSGROHE Changeover unit #92365000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Schnappeinsatz mit Schraube #98290000
Further option:
Warehouse
Hans Grohe
HANSGROHE handle for thermostat #92363820 - Brushed Nickel
Hans Grohe
HANSGROHE Handle #92362820 - Brushed nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Anschlagscheibe #98289000 - Light Grey
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring seal 11x2mm #98127000
Further option:
Warehouse
