Description
2 functions
spray type mixer: normal spray
maximum flow rate at 3 bar: 24 l/min
flow rate for bath spout at 3 bar: 24 l/min
ceramic cartridge
temperature limitation adjustable
diverter with automatic resetting
non-return valve
with silencer
suitable for continous flow water heaters
with integrated safety combination EN 1717
connection type: basic set
wall-mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar

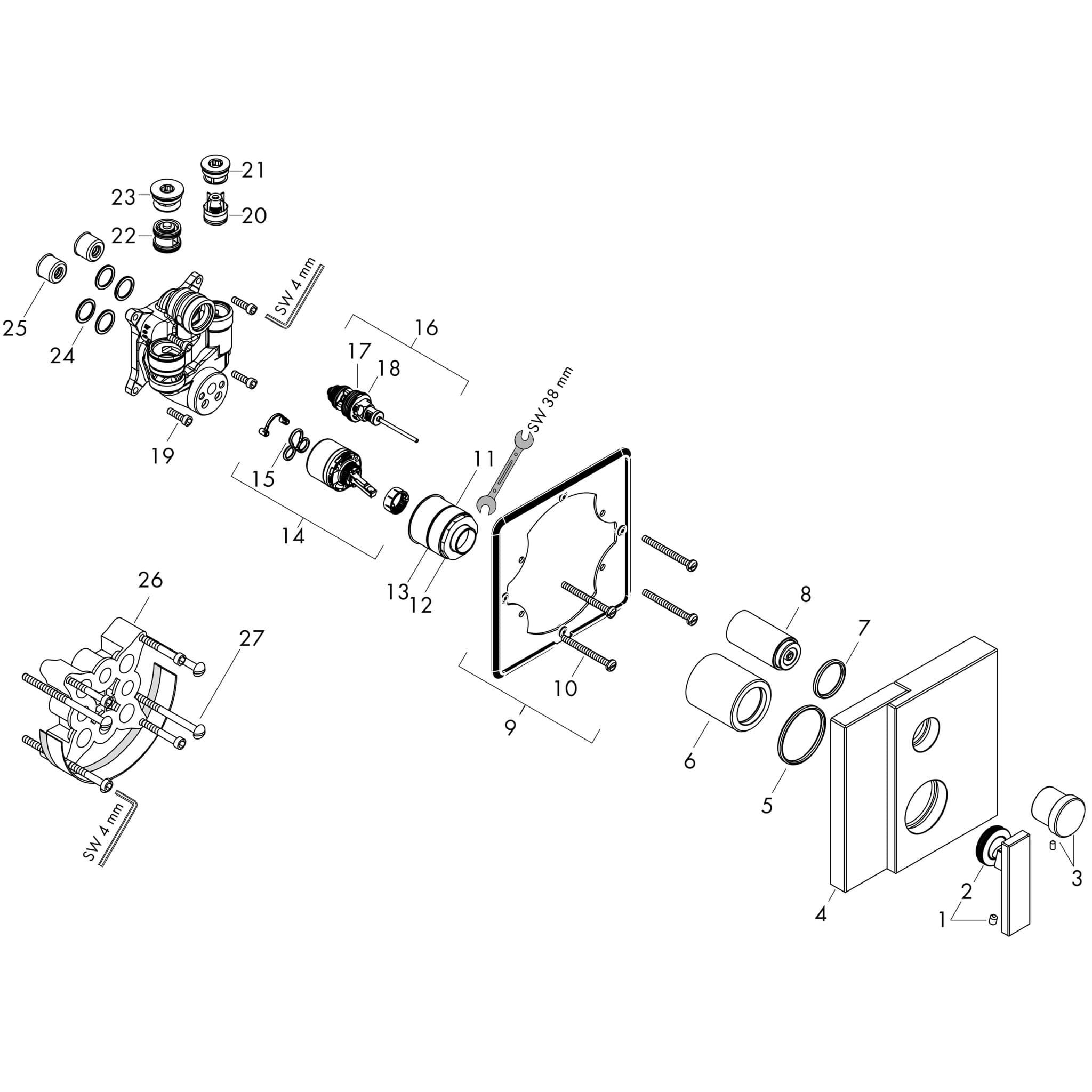

Spare Parts
Related products
Hans Grohe
HANSGROHE Sleeve #93581000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 19x2 #98426000
Further option:
Warehouse
Hans Grohe
HANSGROHE Tube aerator #96753000
Further option:
Warehouse
Hans Grohe
HANSGROHE Cartridge cpl. #93185000
Further option:
Warehouse
Hans Grohe
HANSGROHE Handle #93565000
Further option:
Warehouse
Hans Grohe
HANSGROHE Sleeve #93580000
Further option:
Warehouse
Hans Grohe
HANSGROHE Backflow preventer #96655000
Further option:
Warehouse
Hans Grohe
HANSGROHE Rosette 170 / 170 mm #93570000
Further option:
Warehouse
Hans Grohe
HANSGROHE Carrier rosette #93604000
Further option:
Warehouse
Hans Grohe
HANSGROHE Mother #93564000
Further option:
Warehouse
Hans Grohe
HANSGROHE Pull knob #93566000
Further option:
Warehouse
Hans Grohe
