Description
3 functions
simultaneous use of several outlets
Select push-button on/off control for 3 functions
depending on volume flow and installation situation approx. 50% flow rate reduction
thermostat cartridge
flow rate of hand shower at 3 bar: 13 l/min
maximum flow rate at 1 bar: 12 l/min
maximum flow rate at 3 bar: 21 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
shelf made of safety glass
surface shelf: frosted grey glass
connection dimension: DN15
connection type: basic set
Thermostat is delivered with buttons handshower, PowderRain, Rain large

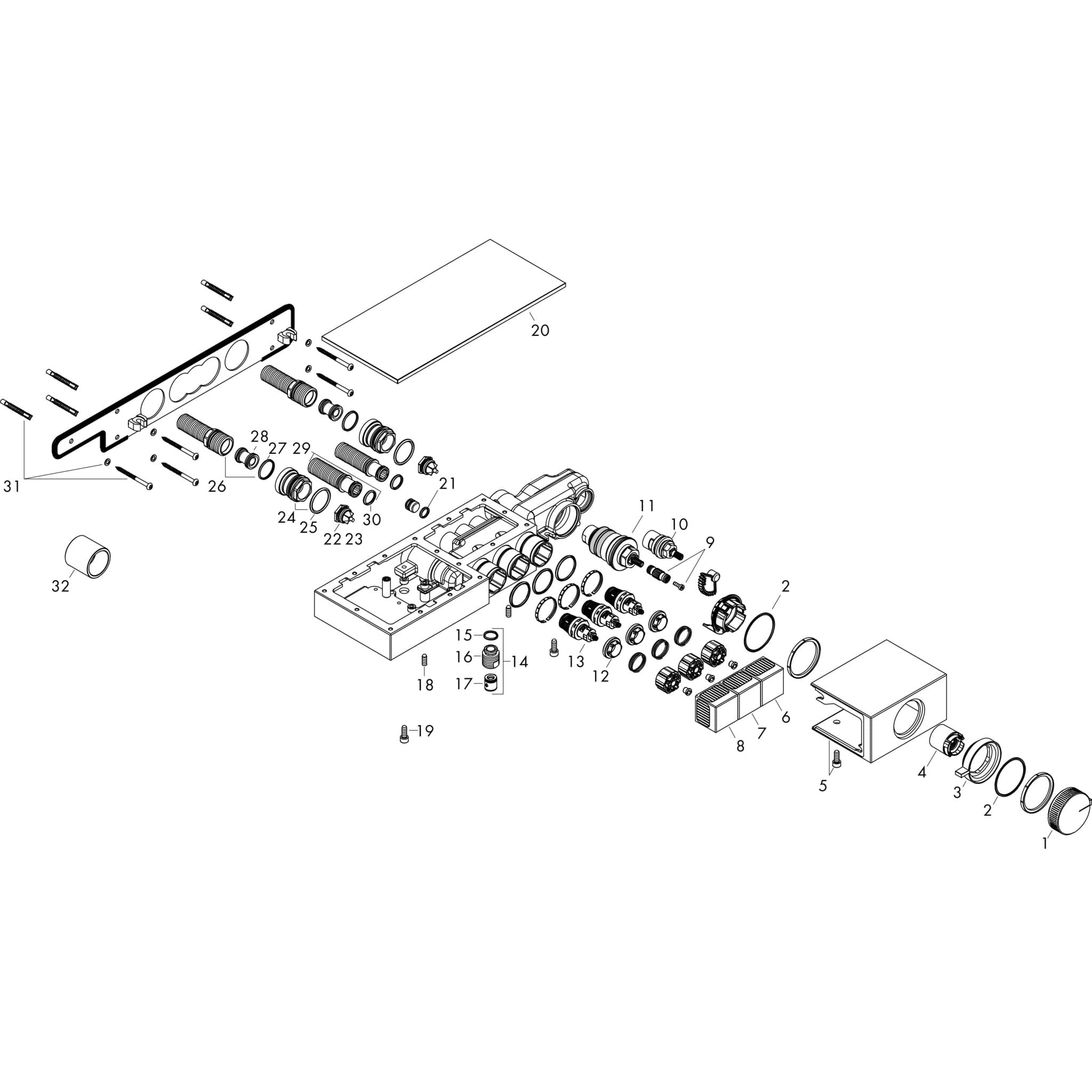

Spare Parts
Related products
Hans Grohe
HANSGROHE HG cover #93615000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Cheese head screw M6x16 #92857000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG sleeve for termostatic mixer iBox #93613000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Elbow AXOR DN20 with connecting #93231000
Further option:
Warehouse
Hans Grohe
HANSGROHE Symbol handshower #93607000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG hose connection chrome #96044000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Symbol handshower #93609000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG connecting thread AXOR #95392000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 50x2mm #98187000
Further option:
Warehouse
Hans Grohe
HANSGROHE Adapter (spindle) thermostat finish set for handle iBox universal #93611000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG handle AXOR Montreux thermostat mixer #93614000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Elbow AXOR DN20 with connecting #93232000
Further option:
Warehouse
Hans Grohe
HANSGROHE Assembly aid #93612000
Further option:
Warehouse
Hans Grohe
HANSGROHE Symbol handshower #93608000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG handle AXOR Montreux thermostat mixer #93610000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Glass shelf #93616000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring seal 11x2mm #98127000
Further option:
Warehouse
