Description
consists of: 4-hole tile mounted bath mixer, hand shower, shower hose, shower holder
2 functions
projection: 196 mm
spray type mixer: normal spray
maximum pull-out length of hand shower: 1.10 m
maximum flow rate at 3 bar: 21 l/min
flow rate for bath spout at 3 bar: 21 l/min
flow rate of hand shower at 3 bar: 15 l/min
ceramic valves hot/ cold 180°
non-return valve
connection dimension: DN15
connection type: basic set
tile mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar
spray type hand shower: RainAir

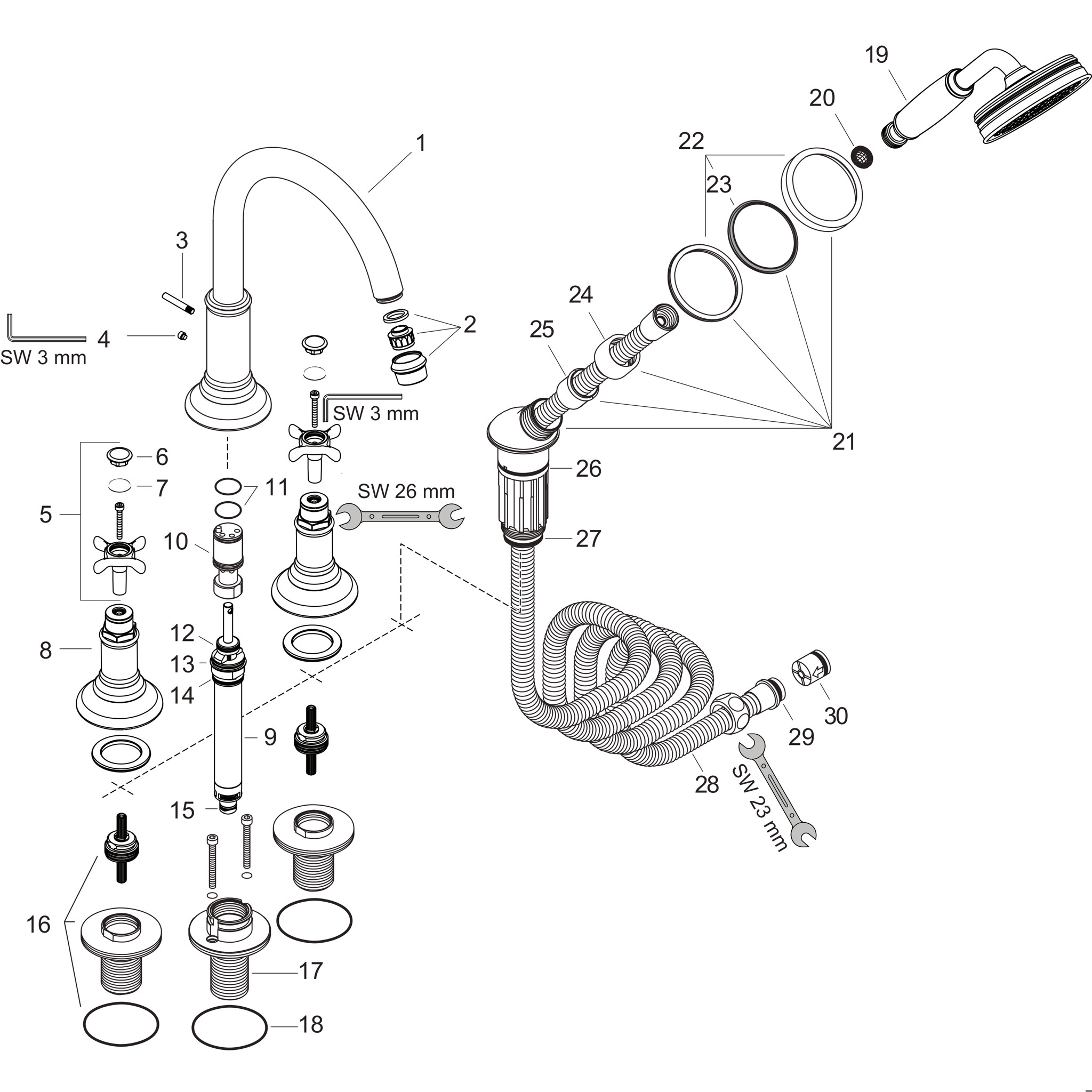

Spare Parts
Related products
Hans Grohe
HANSGROHE Secuflex metal shower hose for 4-hole rim mounted/ tile mounted bath mixer #94148820 - Brushed Nickel
Hans Grohe
HANSGROHE escutcheon for shower holder #96237820 - Brushed Nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Wheel flange AXOR shut off valve #97656000
Further option:
Warehouse
Hans Grohe
HANSGROHE concealed item #14444180
Hans Grohe
HANSGROHE escutcheon #98605820 - Brushed Nickel
Hans Grohe
HANSGROHE HG Diverter knob AXOR Montreux 4-hole #98607820 - Brushed Nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE Insert for shower holder 3-hole and 4-hole rim-mounted mixers #96942000
Further option:
Warehouse
Hans Grohe
HANSGROHE Guide sleeve #92214000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Handle hot/cold AXOR Montreux #16291820 - Brushed Nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 23x2,5mm #98183000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG o-ring seal 9x2,5mm #98217000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Shower holder for 4-hole bath mixer #96433820 - Brushed Nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE HG aerator AXOR Montreux bath spout #98575820 - Brushed Nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE HG selector assy AXOR 4-hole bath mixer #96777000
Further option:
Warehouse
Hans Grohe
HANSGROHE spout cpl. #98606820 - Brushed Nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Nut AXOR for shower holder chrome #97584820 - Brushed Nickel
Further option:
Warehouse
Hans Grohe
HANSGROHE SPANNHALS (+ 90365310) #97225000
Further option:
Warehouse
Hans Grohe
HANSGROHE Secuflex Secuflex set #94109000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring seal 11x2mm #98127000
Further option:
Warehouse
