Description

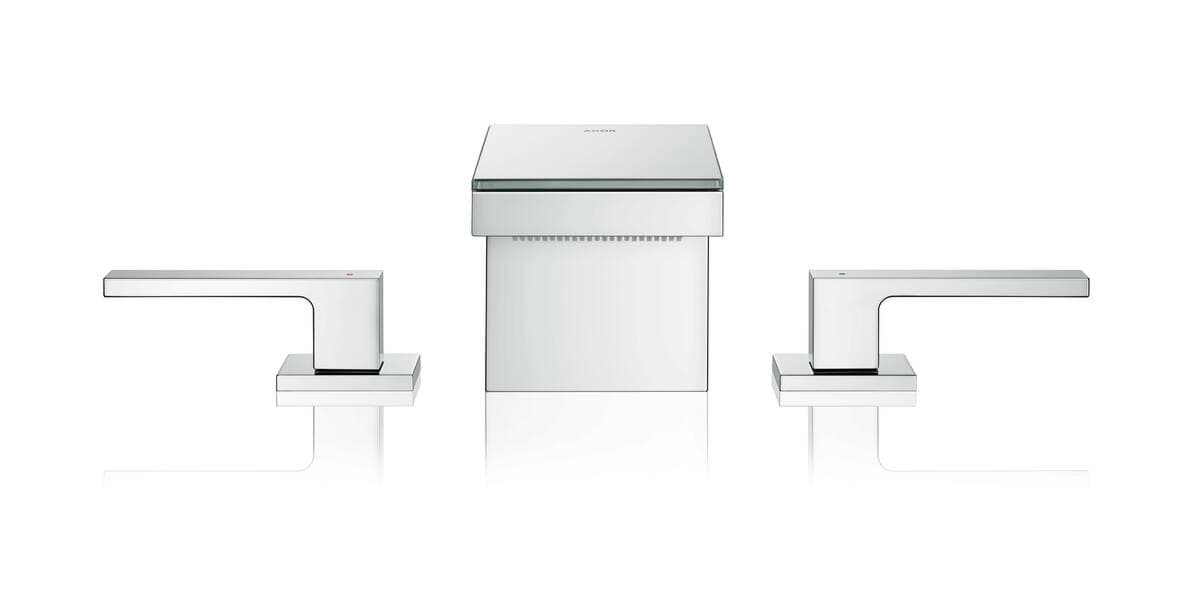

consists of: 3-hole basin mixer, plate, waste set
ComfortZone: 70
projection: 151 mm
spout height: 70 mm
handle variant: lever handle
plate of glass made of safety glass
spray type: PowderRain
maximum flow rate at 3 bar: 5 l/min
ceramic valves hot/cold 90°
with isolated water conduction - without contact with nickel and lead
suitable for continuous flow water heaters
push-open waste set G 1¼
connection type: G ⅜ hose connections
connection dimension: DN15
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

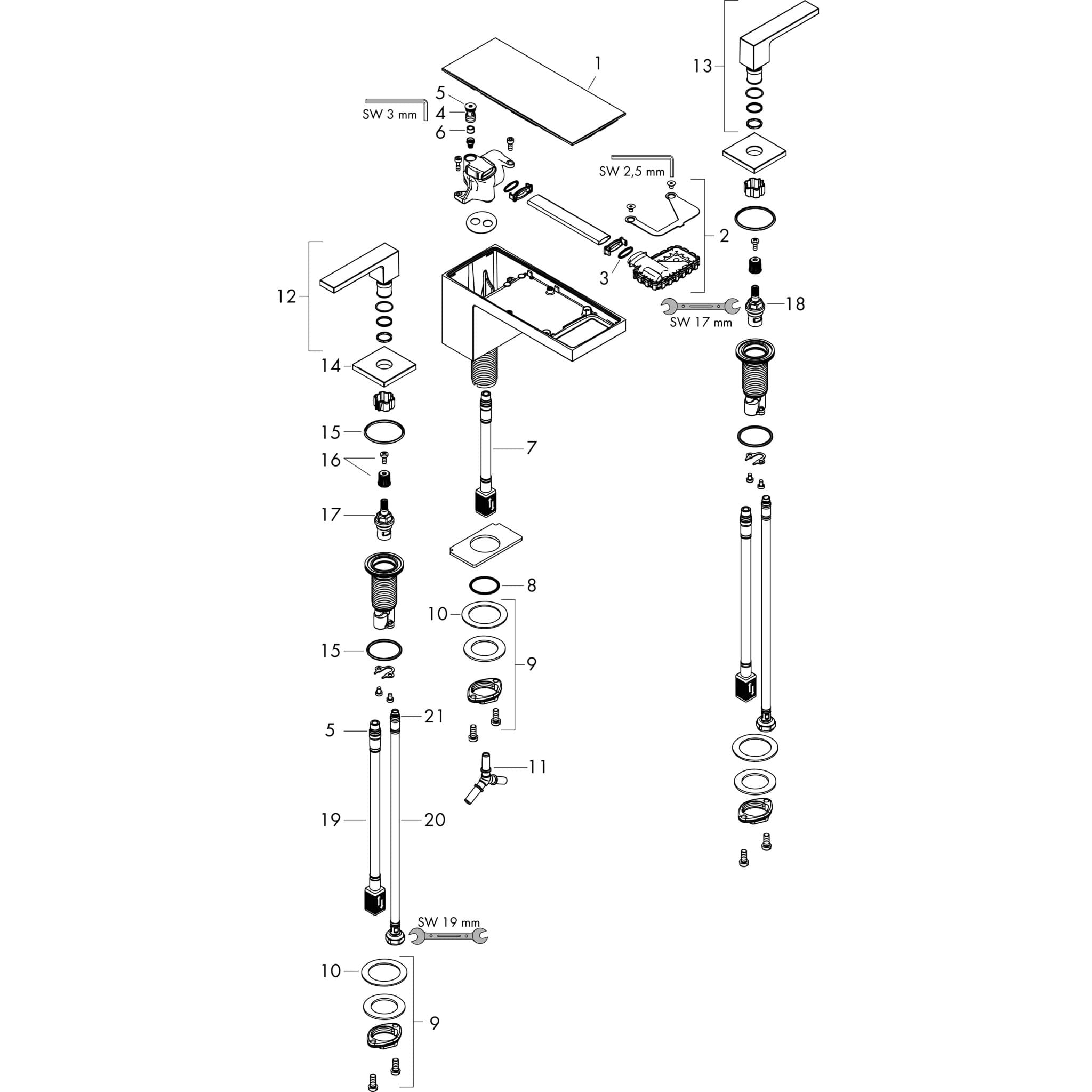

Spare Parts
Related products
Hans Grohe
HANSGROHE AXOR MyEdition Plate 200 Metal #47903000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG flow limiter 5 l/min #95311000
Further option:
Warehouse
Hans Grohe
HANSGROHE Connection hose 400 mm M10x1 #92914000
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR MyEdition Plate 200 Marble Lasa Covelano Vena Oro #47909000 - Marble Lasa Covelano Vena Oro
Hans Grohe
HANSGROHE Waste set push-open for basin and bidet mixers #51300000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG handle AXOR Citterio M 4-hole bath #93380000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 26x4 #92191000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 33x2mm #92907000
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR MyEdition Plate 200 Leather #47916000 - Leather
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Connection angle AXOR #92905000
Further option:
Warehouse
Hans Grohe
HANSGROHE Shaft fixation set for mixer #92909000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG shut off upper part DN10 left #95366000
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR MyEdition Plate 200 Black Walnut #47906000 - Black Walnut
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 13x1.5 #98475000
Further option:
Warehouse
Hans Grohe
HANSGROHE Connection hose 200 mm M10x1 #92913000
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR MyEdition Plate 200 Glass #47900000 - Mirror
Hans Grohe
HANSGROHE HG escutcheon AXOR d: 60mm chrome #93381000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG shut off upper part 3/8 right #98817000
Further option:
Warehouse
Hans Grohe
HANSGROHE Service unit #93384007
Further option:
Warehouse
Hans Grohe
HANSGROHE HG handle AXOR Citterio M 4-hole bath #93379000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG seat AXOR Citterio 3-hole basin #98932000
Further option:
Warehouse
