Description
consists of: single lever bidet mixer, plate, waste set
projection: 121 mm
spout height: 83 mm
plate of glass made of safety glass
aerator with ball pivot
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
ceramic cartridge
temperature limitation adjustable
isolated water conduction - without contact with nickel and lead
suitable for continous flow water heaters
push-open waste set G 1¼
connection type: G ⅜ hose connections
connection dimension: DN15
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

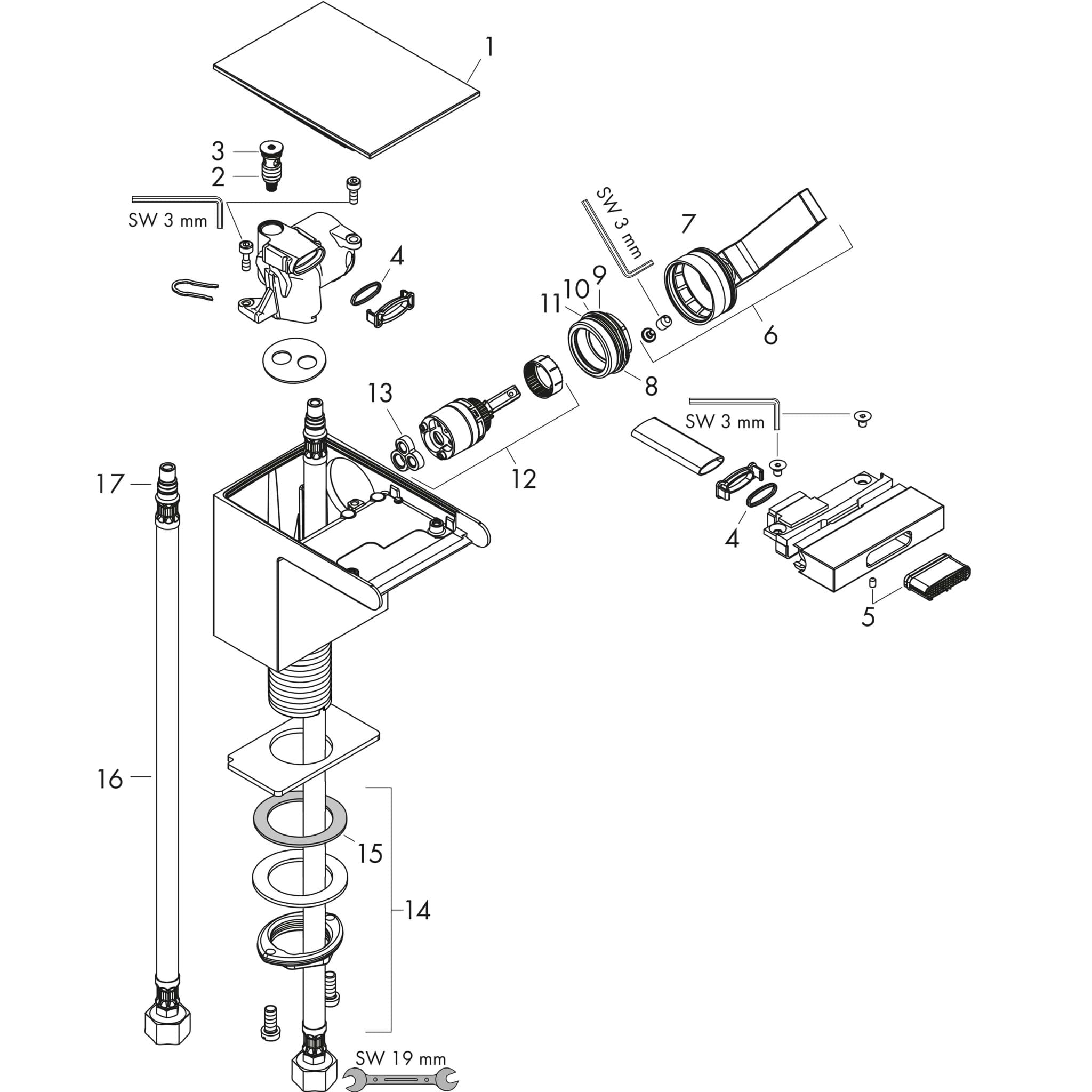

Spare Parts
Related products
Hans Grohe
HANSGROHE O-ring 13x1.5 #98475000
Further option:
Warehouse
Hans Grohe

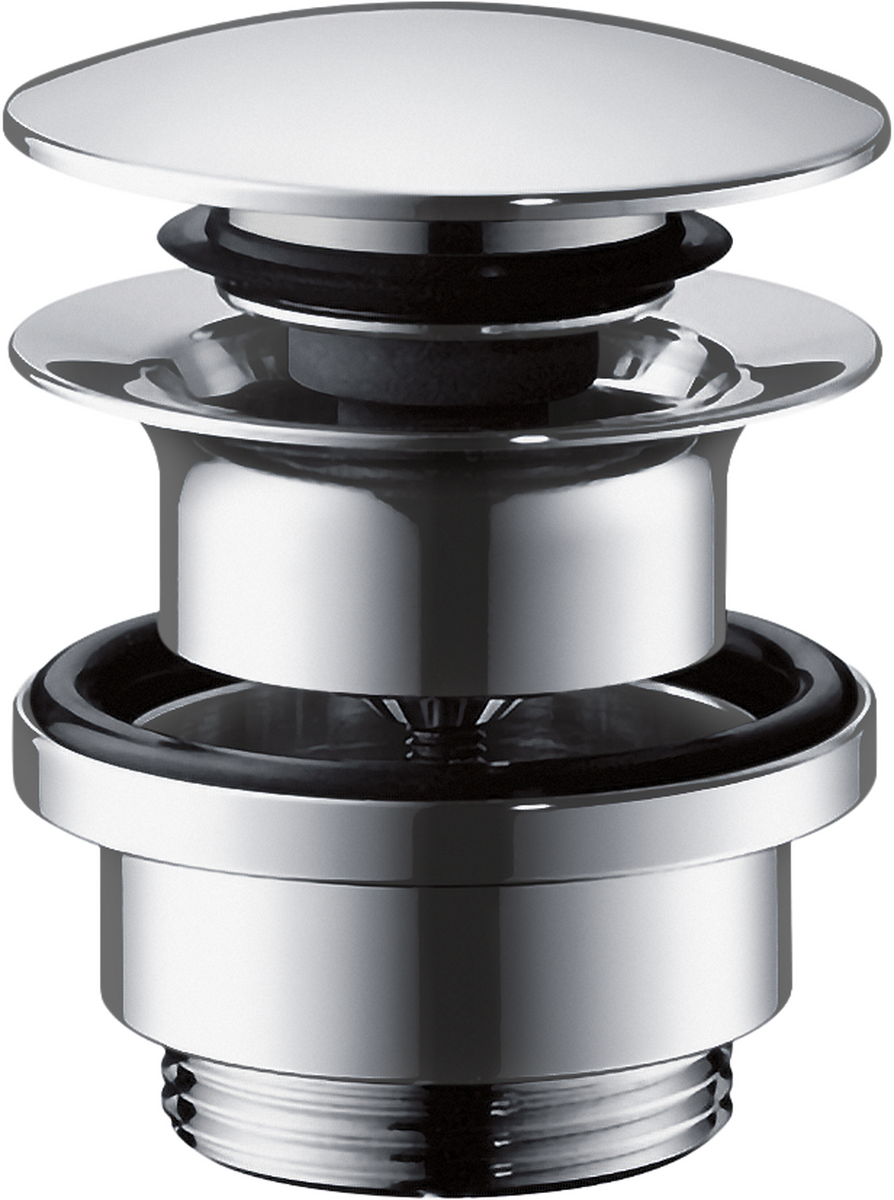

HANSGROHE Waste set push-open for basin and bidet mixers #51300000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Spray insert cpl.AXOR basin mixer 100 #93382000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Kartusche kpl. #92900000
Further option:
Warehouse
Hans Grohe
HANSGROHE Seal for M3 cartridge #93383000
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR MyEdition Plate 117 Glass #47902000 - Mirror
Further option:
Warehouse
Hans Grohe
HANSGROHE Handle #93386000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Mother #92926000
Further option:
Warehouse
Hans Grohe
HANSGROHE Service unit #93384007
Further option:
Warehouse
