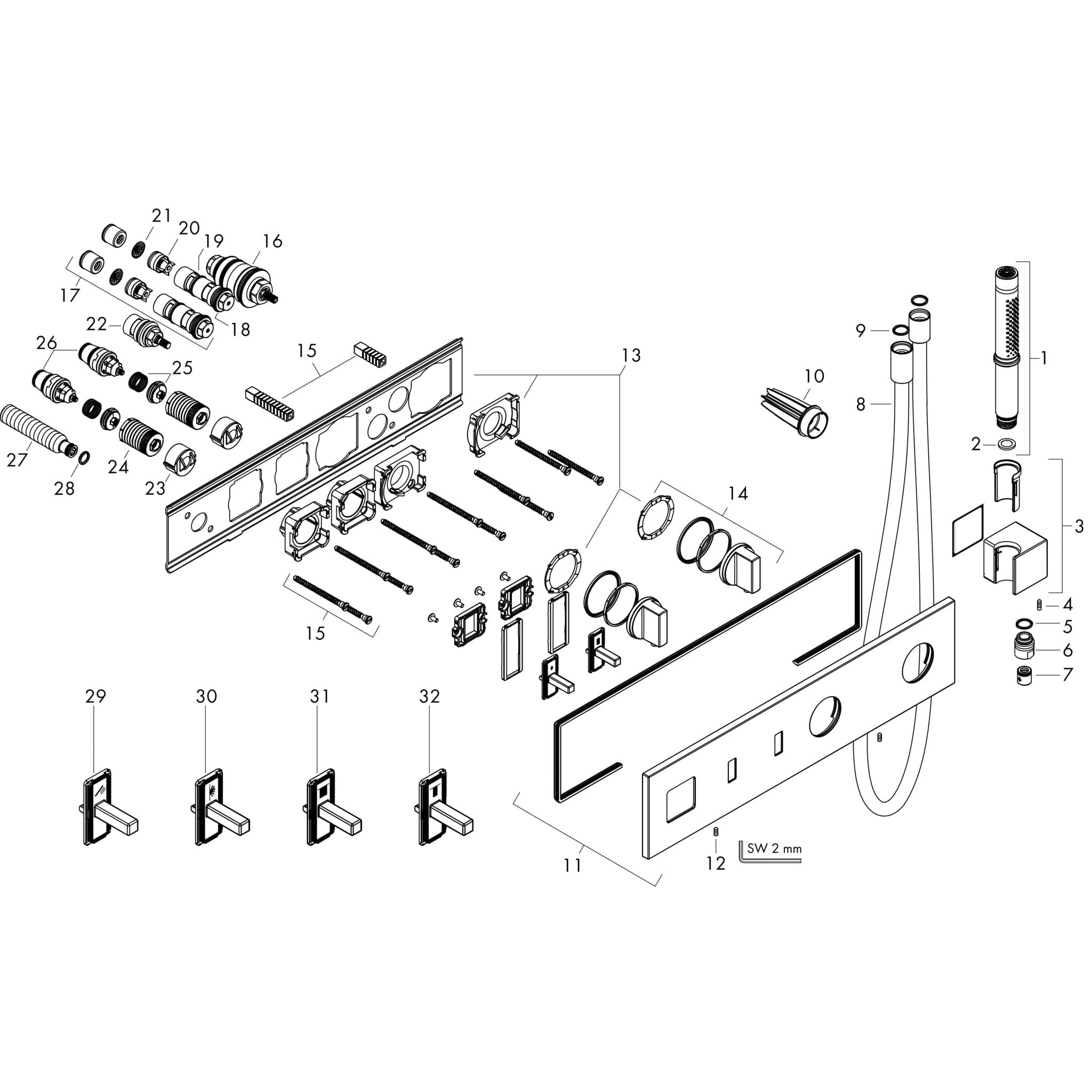

consists of: thermostatic module, shower holder, baton hand shower, textile shower hose
2 functions
simultaneous use of several outlets
sliding movement of handle for switching water on and off, temperature and water flow control
depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
T30LV, AVP
spray type hand shower: Rain, Mono
maximum flow rate at 3 bar: 32,7 l/min
flow rate per outlet: 26 l/min
flow rate by simultaneous use of all outlets: 32,7 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
connection type: basic set
