Description
consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar

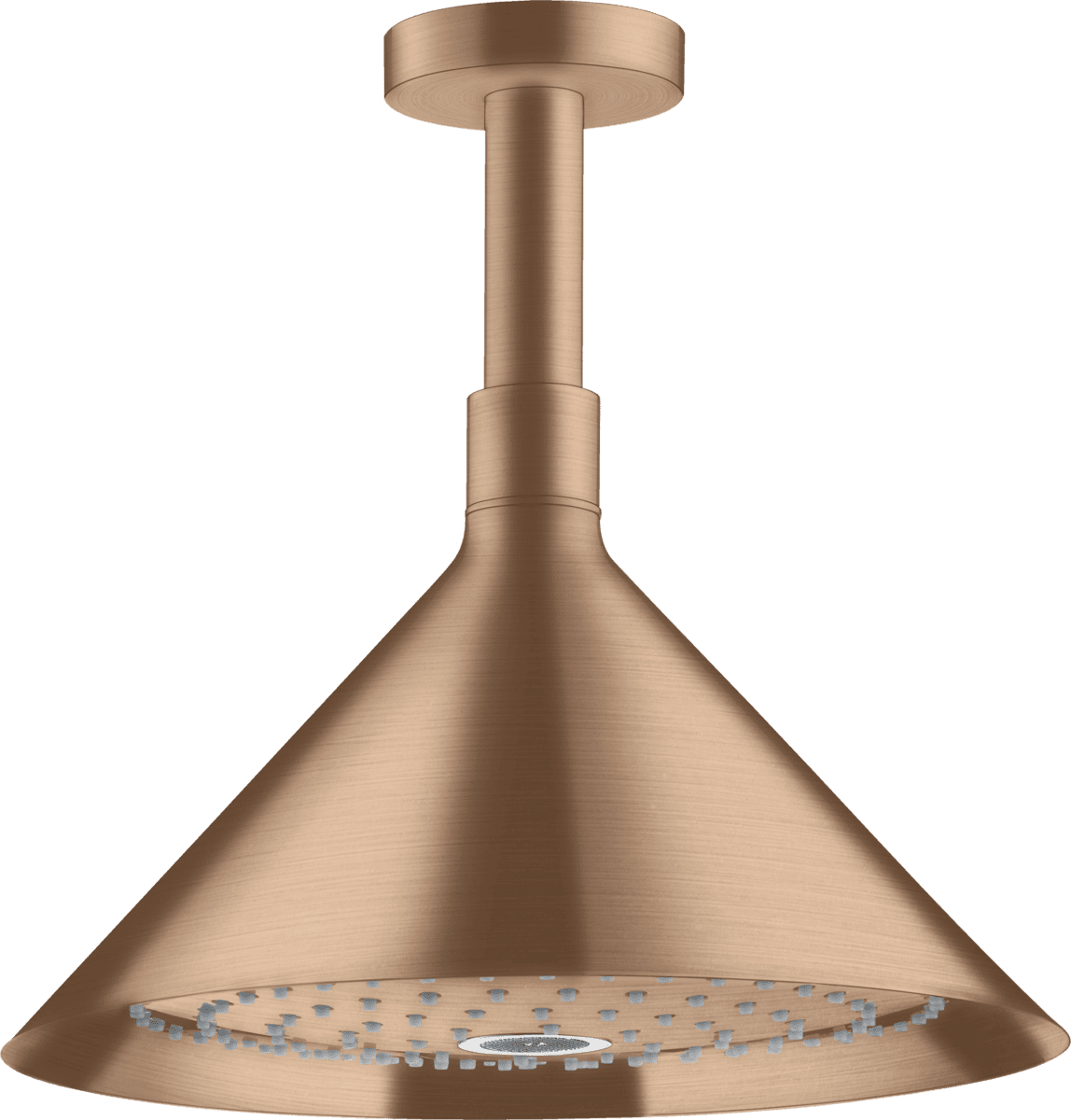

shower head size overhead shower: 279 mm
spray type overhead shower: Rain, RainAir
individually height adjustable shower head with easy-to-use twist lock. Adjustment 300 mm

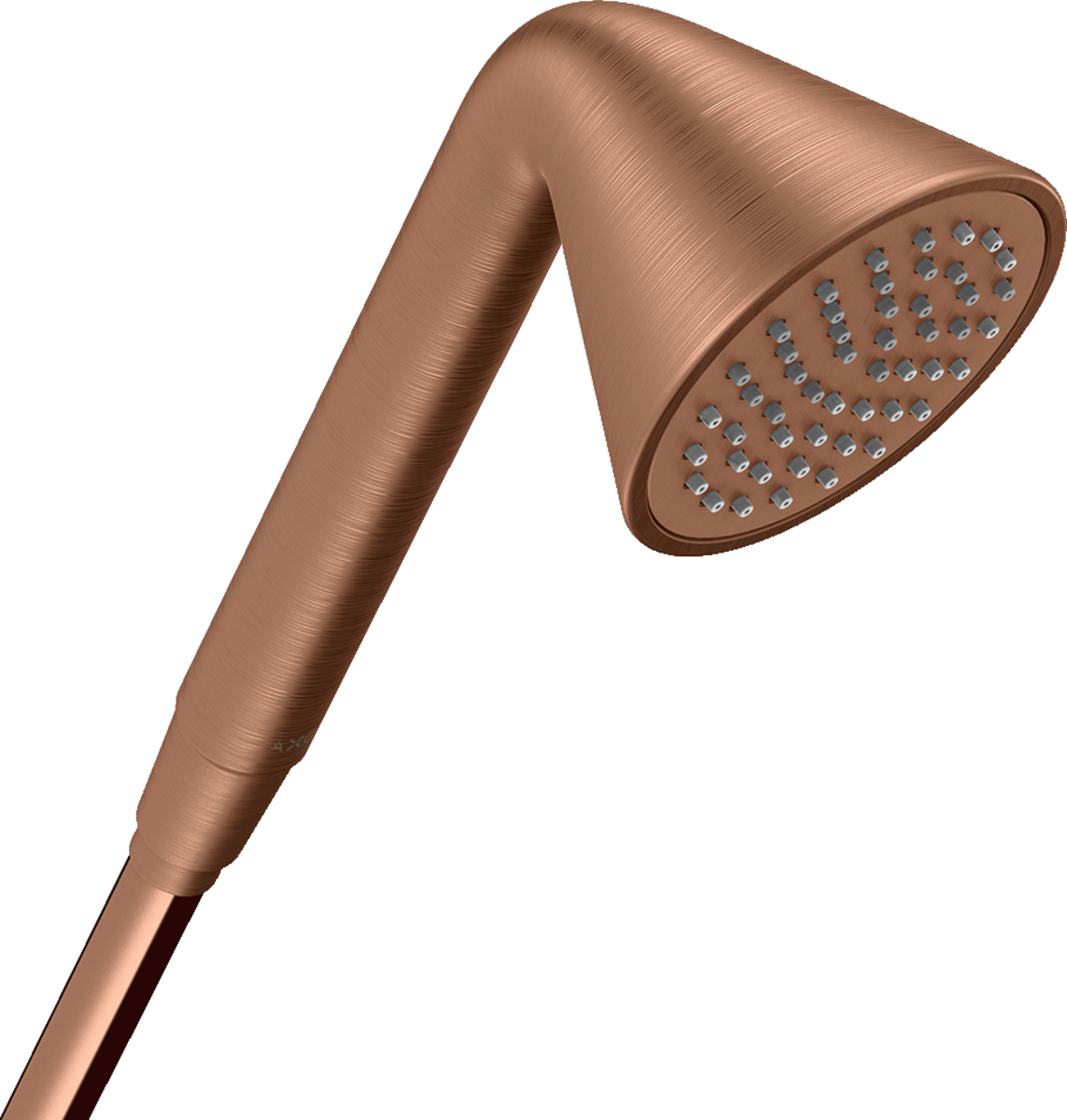

spray type hand shower: Rain
flow rate of hand shower at 3 bar: 8 l/min
maximum flow rate for Showerpipe at 3 bar: 21 l/min
minimum flow pressure: 1 bar
max. operating pressure: 10 bar
convenient spray selection via Select button
ball-joint: overhead shower angle adjustable
height-adjustable slider
shower arm length overhead shower: 470 mm
swivel shower arm
SafetyStop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
intrinsically safe against backflow
shower bar diameter: 25 mm
2 functions
flow rate RainAir spray at 3 bar: 14 l/min
