Description
consists of: Single lever bath mixer, baton hand shower, shower hose, shower holder
2 functions
projection: 156 mm
spray type mixer: normal spray
spray type hand shower: Rain, MonoRain
maximum flow rate at 3 bar: 18 l/min
flow rate for bath spout at 3 bar: 18 l/min
flow rate of hand shower at 3 bar: 15 l/min
ceramic cartridge
temperature limitation adjustable
diverter with automatic resetting
non-return valve
suitable for continous flow water heaters
connection dimension: DN15
connection type: basic set
deck mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar
matching handle design for the AXOR Starck basin mixers with lever handles

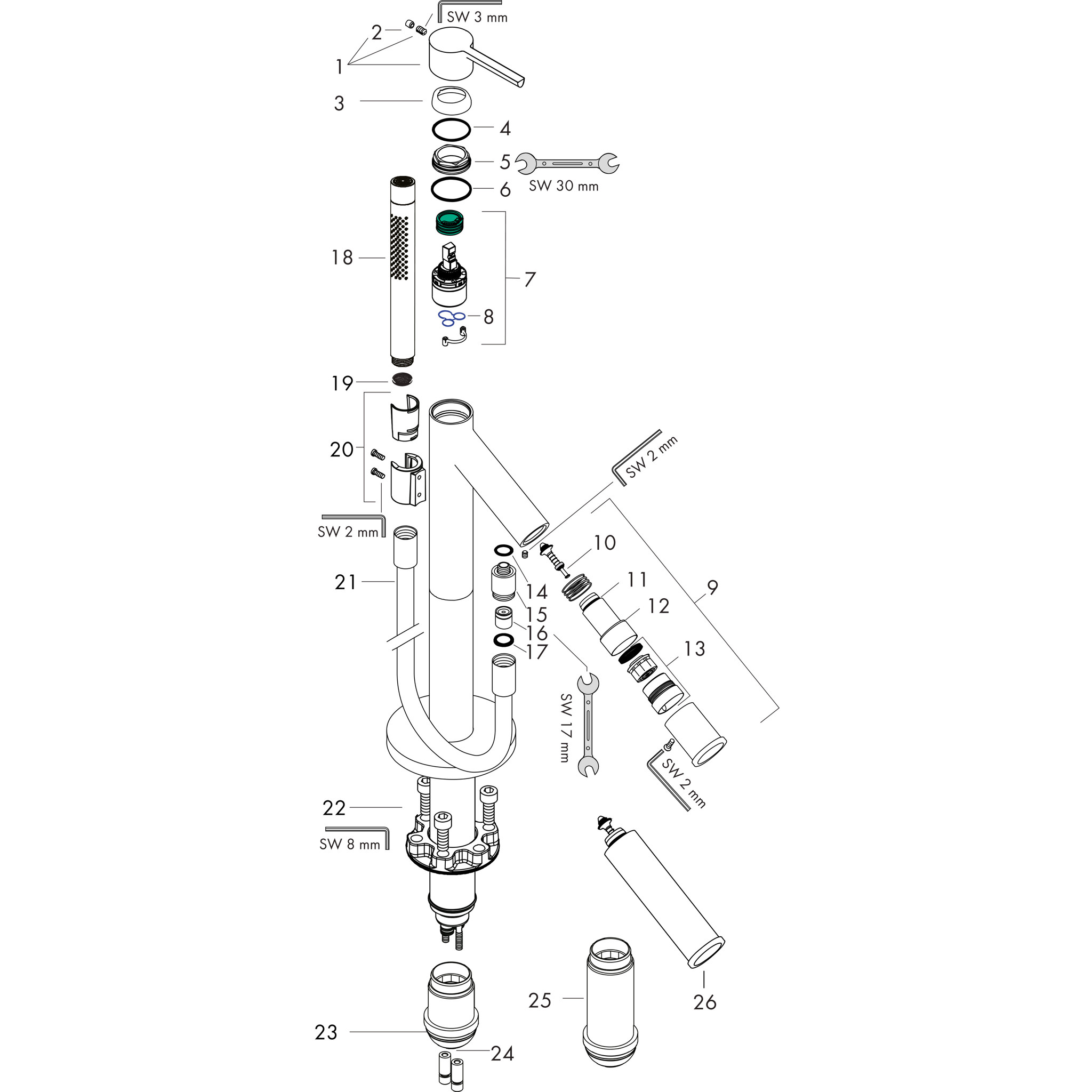

Spare Parts
Related products
Hans Grohe
HANSGROHE Cheese head screw M10x35 #97670000
Further option:
Warehouse
Hans Grohe
HANSGROHE Cap #96763000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG aerator complete AXOR Starck chrome #96296000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 33x2 #98154000
Further option:
Warehouse
Hans Grohe
HANSGROHE Handle #92927000
Further option:
Warehouse
Hans Grohe
HANSGROHE Changeover unit #96297000
Further option:
Warehouse
Hans Grohe

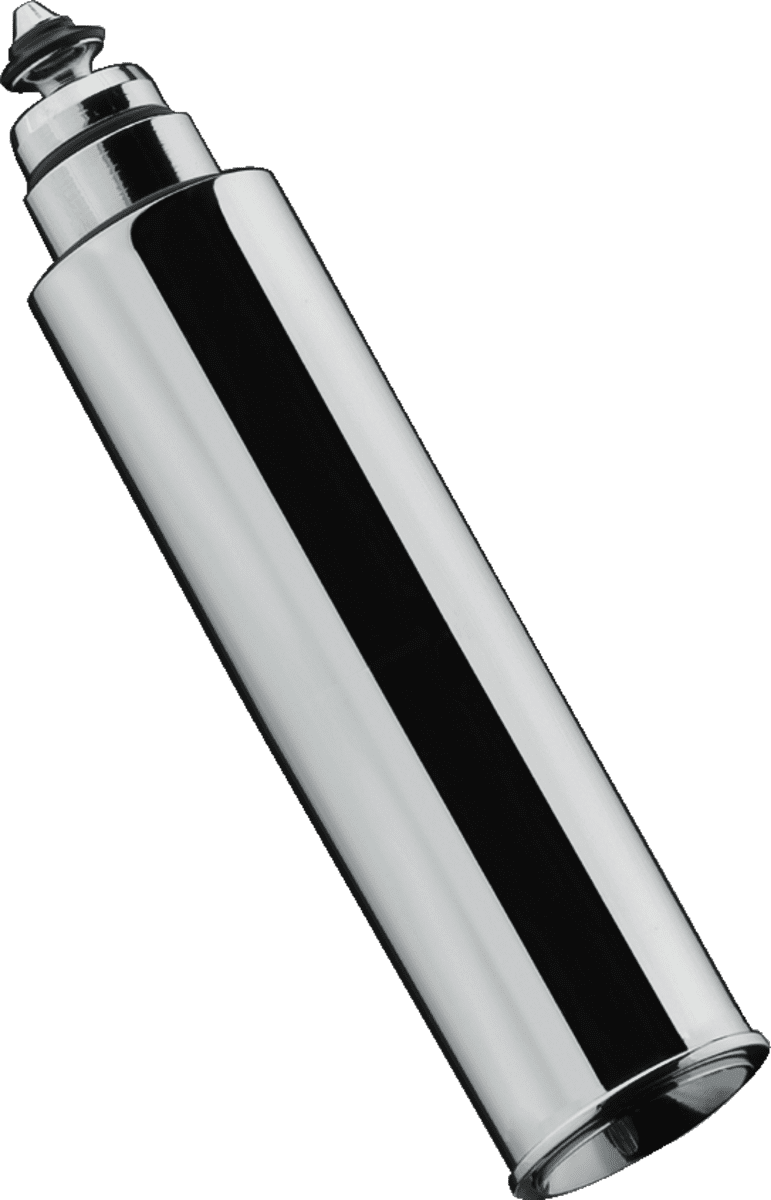

HANSGROHE AXOR Starck Extension 60 mm for spout #10981000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 11x2 #98127000
Further option:
Warehouse
Hans Grohe
HANSGROHE Ceramic cartridge complete M3/ M2 #92730000
Further option:
Warehouse
