Description
consists of: single lever bath mixer floor standing, baton hand shower, shower holder
2 functions
projection: 156 mm
spray type mixer: normal spray
maximum flow rate at 3 bar: 18 l/min
flow rate for bath spout at 3 bar: 18 l/min
flow rate of hand shower at 3 bar: 15 l/min
ceramic cartridge
temperature limitation adjustable
diverter with automatic resetting
non-return valve
suitable for continous flow water heaters
connection dimension: DN15
connection type: basic set
deck mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar
spray type hand shower: MonoRain, Rain

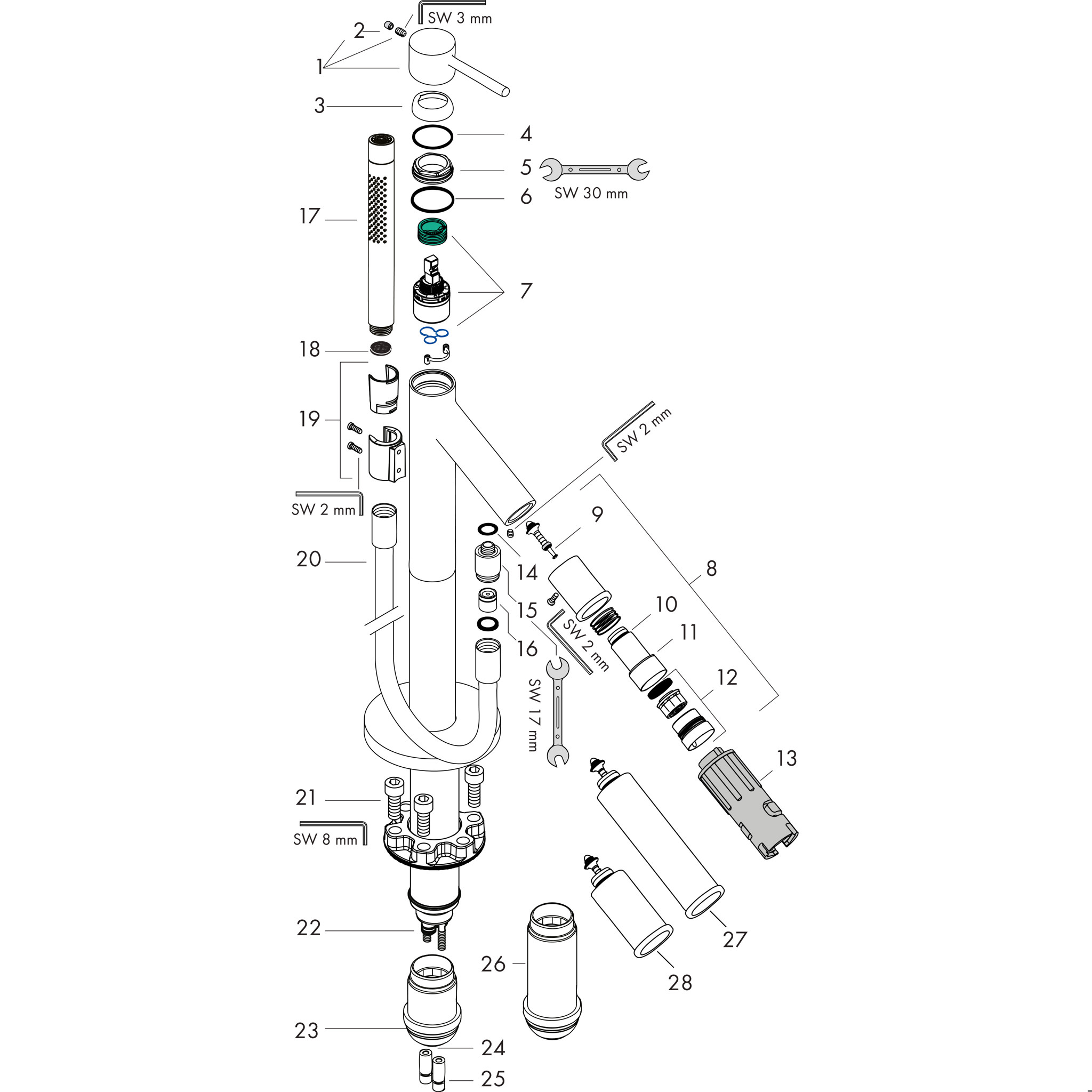

Spare Parts
Related products
Hans Grohe
HANSGROHE HG aerator complete AXOR Starck chrome #96296310 - Brushed Red Gold
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Screw set M10x35mm/A2 DIN 912 #97670000
Further option:
Warehouse
Hans Grohe
HANSGROHE Diverter AXOR Starck 2 complete #96294310 - Brushed Red Gold
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR Starck Extension 60 mm for spout #10981310 - Brushed Red Gold
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR Starck Extension 20 mm for spout #10983310 - Brushed Red Gold
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Thread nipple AXOR Starck chrome #97527310 - Brushed Red Gold
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 33x2mm #98154000
Further option:
Warehouse
Hans Grohe
HANSGROHE Shower holder #96295310 - Brushed Red Gold
Further option:
Warehouse
Hans Grohe
HANSGROHE HG escutcheon AXOR Uno basin mixer #96763310 - Brushed Red Gold
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 9x1,5mm #98117000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG selector AXOR Starck #96297000
Further option:
Warehouse
Hans Grohe
HANSGROHE Ceramic cartridge complete M3/ M2 #92730000
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR Starck Metal effect shower hose 1.25 m with cylindrical nuts #28282310 - Brushed Red Gold
Further option:
Warehouse
