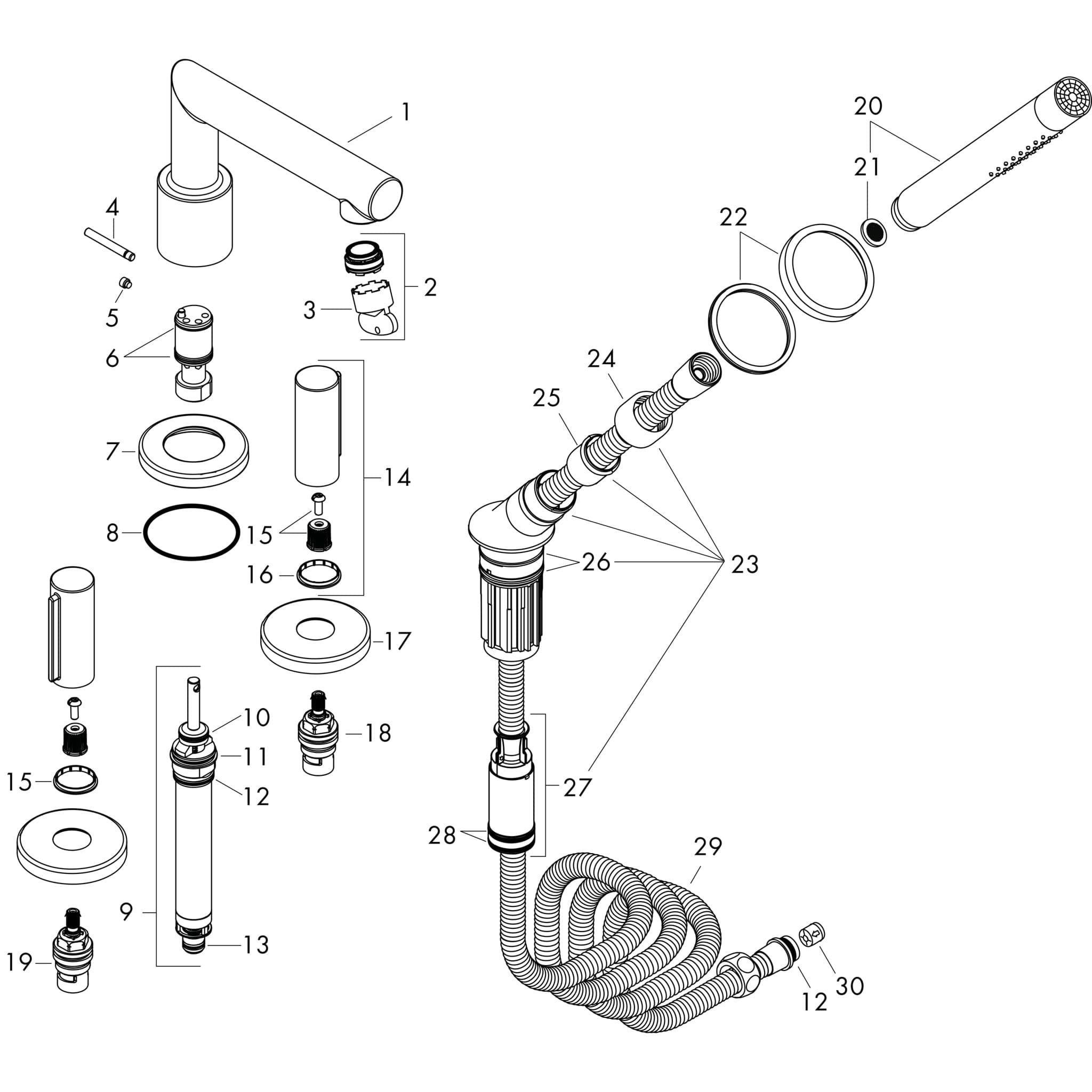

consists of: 4-hole rim mounted bath mixer, baton hand shower, Secuflex hose set, shower holder
2 functions
projection: 152 mm
spray type mixer: normal spray
spray type hand shower: Rain, Mono
maximum pull-out length of hand shower: 1.10 m
maximum flow rate at 3 bar: 22 l/min
flow rate for bath spout at 3 bar: 22 l/min
flow rate of hand shower at 3 bar: 16 l/min
ceramic valves hot/cold 90°
connection dimension: DN15
connection type: basic set
installation on bath rim
min. operating pressure: 1 bar
max. operating pressure: 10 bar
