Description
consists of: 4-hole tile mounted bath mixer, hand shower, shower hose, shower holder
2 functions
projection: 198 mm
spray type mixer: normal spray
maximum pull-out length of hand shower: 1.10 m
maximum flow rate at 3 bar: 22 l/min
ceramic valves hot/cold 90°
diverter with automatic resetting
non-return valve
connection dimension: DN15
connection type: basic set
tile mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar
no additional maintenance opening required
spray type hand shower: Rain, RainAir, WhirlAir

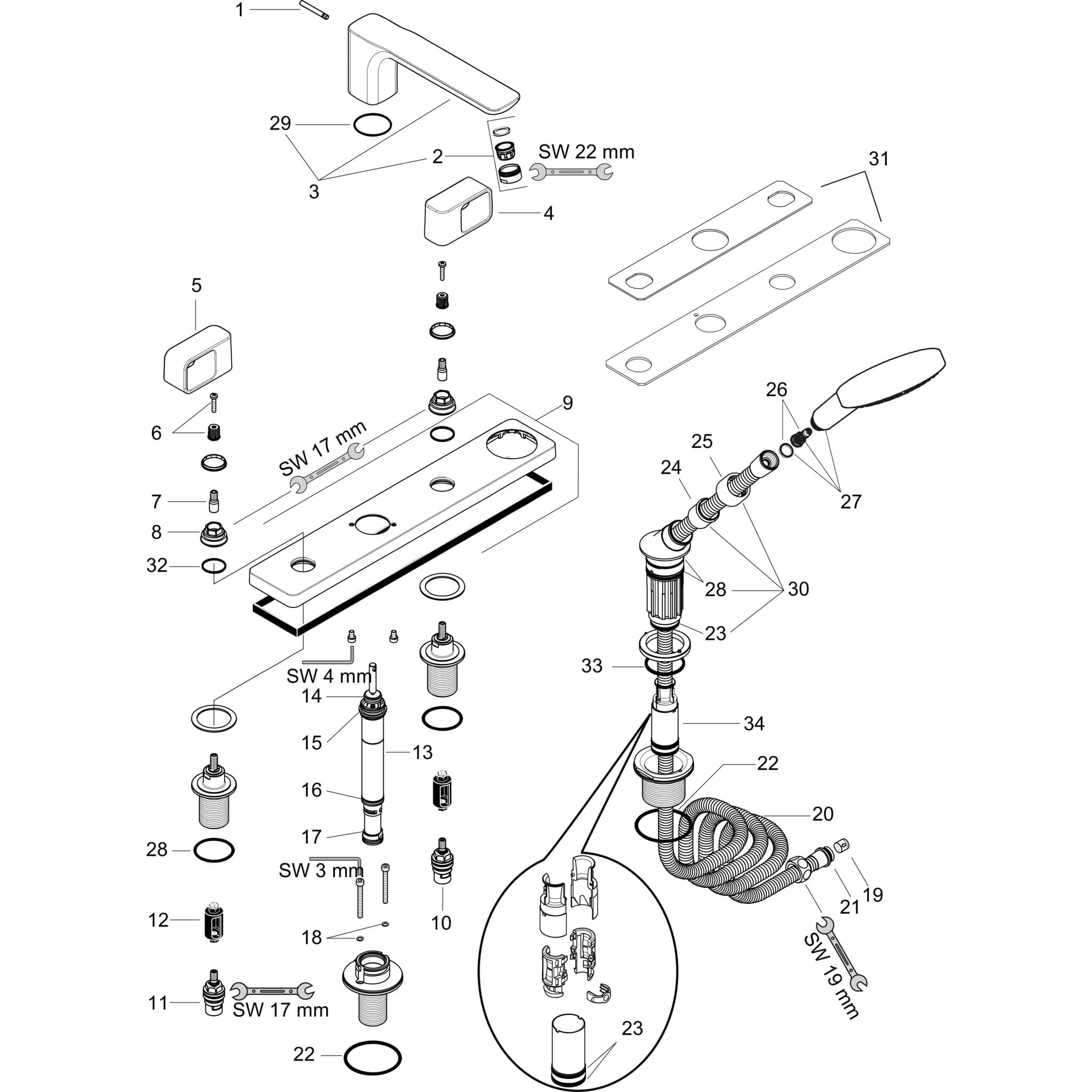

Spare Parts
Related products
Hans Grohe
HANSGROHE HG Nut AXOR for shower holder chrome #97584000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG diverter knob AXOR Massaud 4-hole #98707000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG handle hot water AXOR Urquiola #95611000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG adapter for handle AXOR Urquiola #95615000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG o-ring seal 5x1mm #98196000
Further option:
Warehouse
Hans Grohe
HANSGROHE Insert for shower holder 3-hole and 4-hole rim-mounted mixers #96942000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 18x2,5mm #98139000
Hans Grohe
HANSGROHE HG handle cold water AXOR Urquiola #95612000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 23x2,5mm #98183000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG nut AXOR Urquiola 3-/4-hole mixer #95610000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG base plate AXOR Urquiola 4-hole #95614000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG handle AXOR Urquiola 4-hole #95616000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Hose brake for Secuflex #98656000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG selector assy AXOR 4-hole bath mixer #96777000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 24x1.5 #98434000
Hans Grohe
HANSGROHE HG Shower holder for 3-/4-h.bath mixer #95996000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 54x3 #98436000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG seat AXOR Citterio 3-hole basin #98932000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring seal 11x2mm #98127000
Further option:
Warehouse
