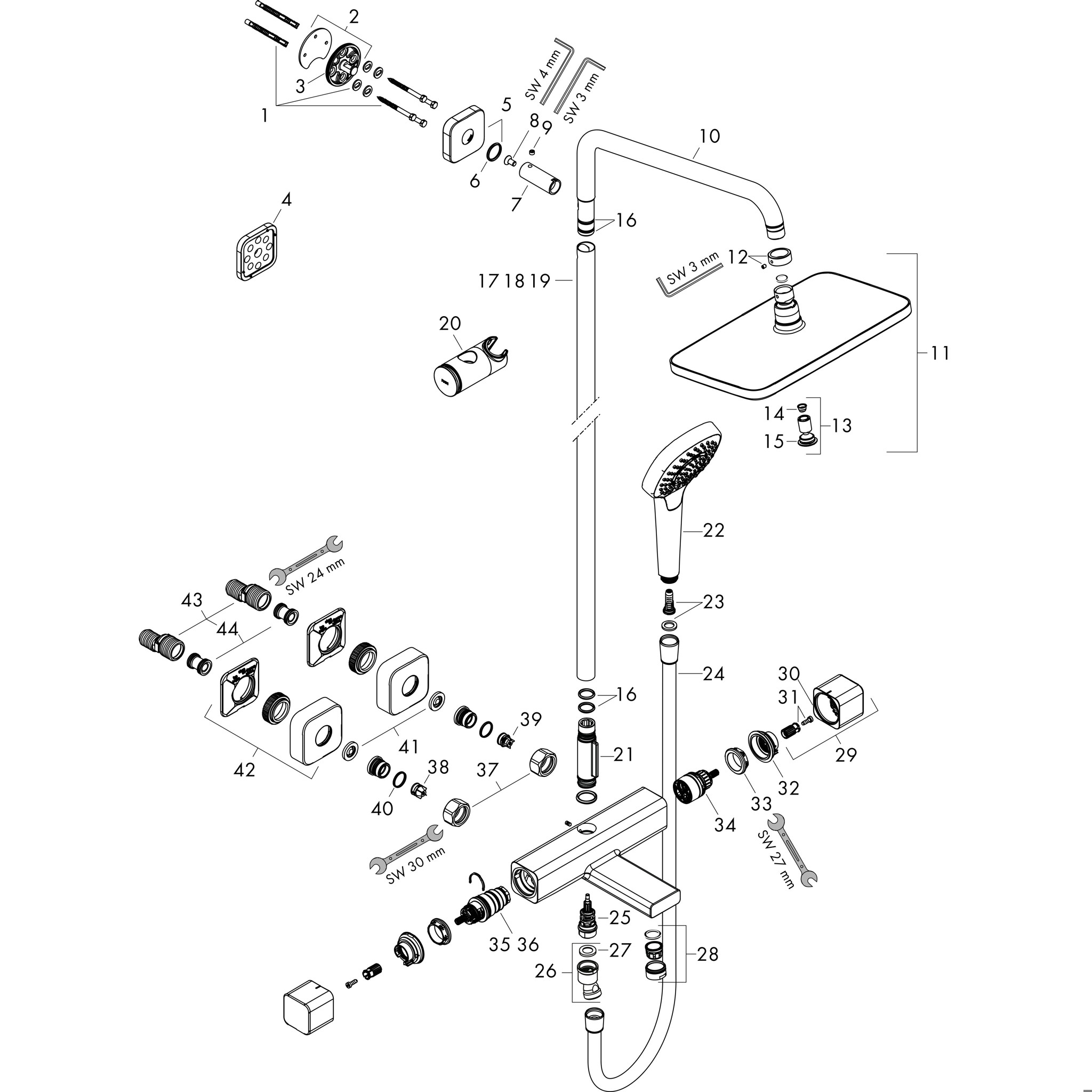

consists of: overhead shower, hand shower, bath thermostat, shower hose, slider, shower bar
shower head size overhead shower: 280 x 170 mm
spray type overhead shower: RainAir
spray disc surface: chrome
flow rate bath filler: 20 l/min
spray type hand shower: Massage spray, IntenseRain, SoftRain
flow rate of hand shower at 3 bar: 13,6 l/min
maximum flow rate for Showerpipe at 3 bar: 20,3 l/min
minimum flow pressure: 1,7 bar
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable

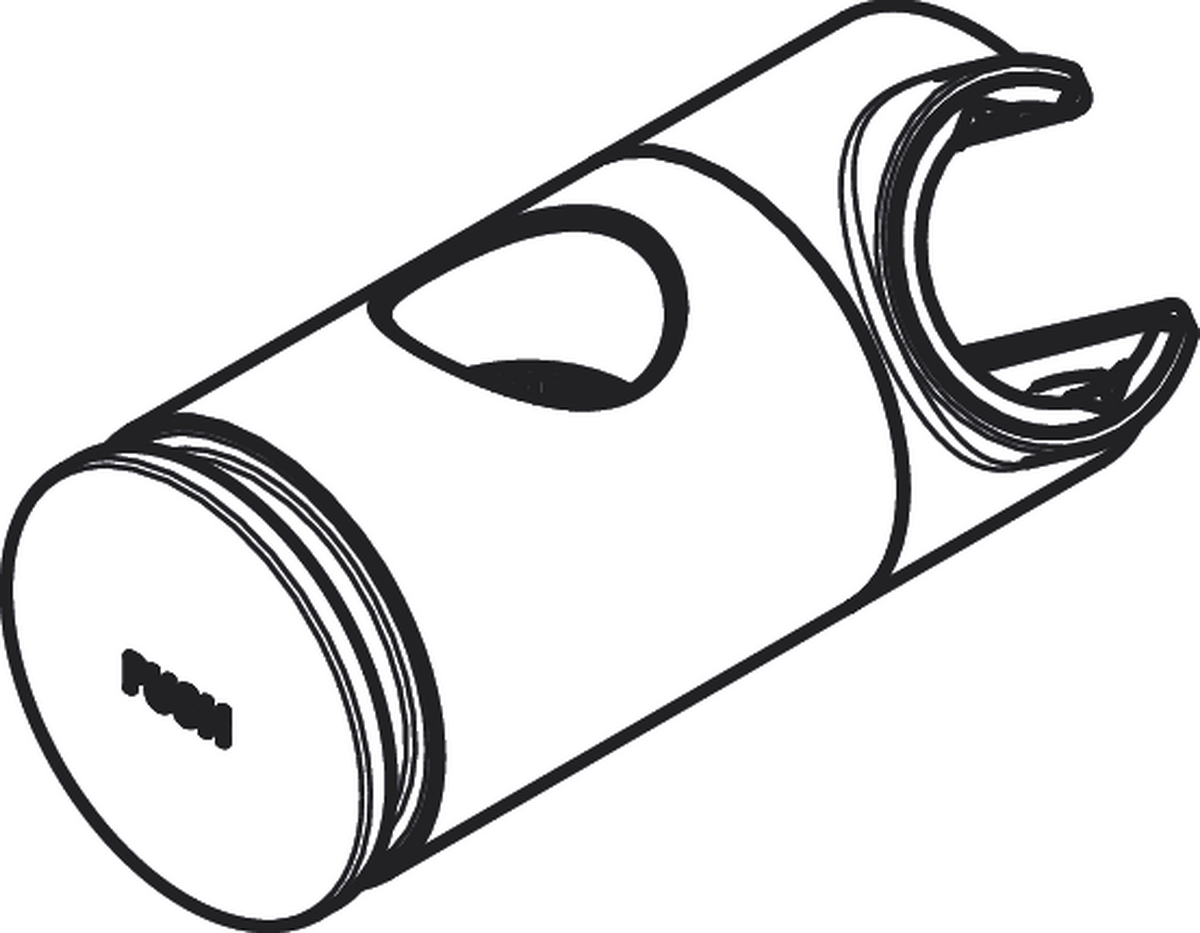

height-adjustable slider with locking push-button slider
swivel shower arm

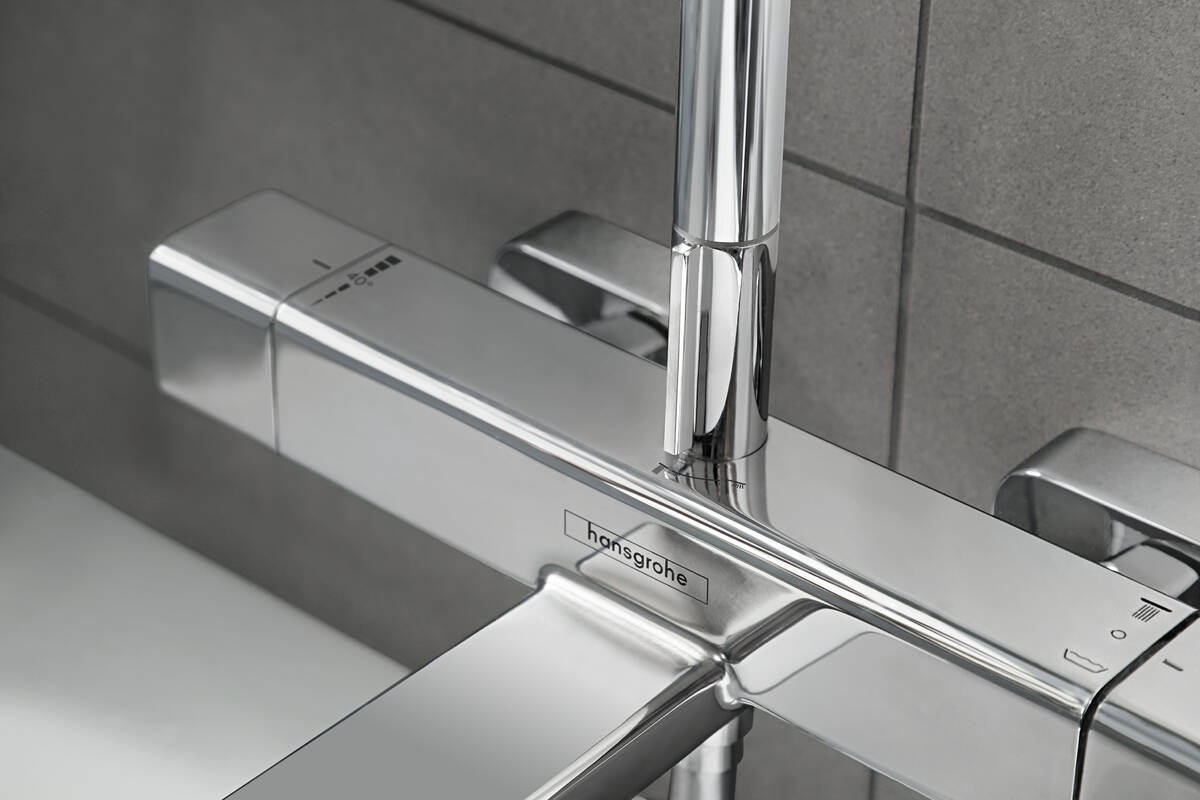

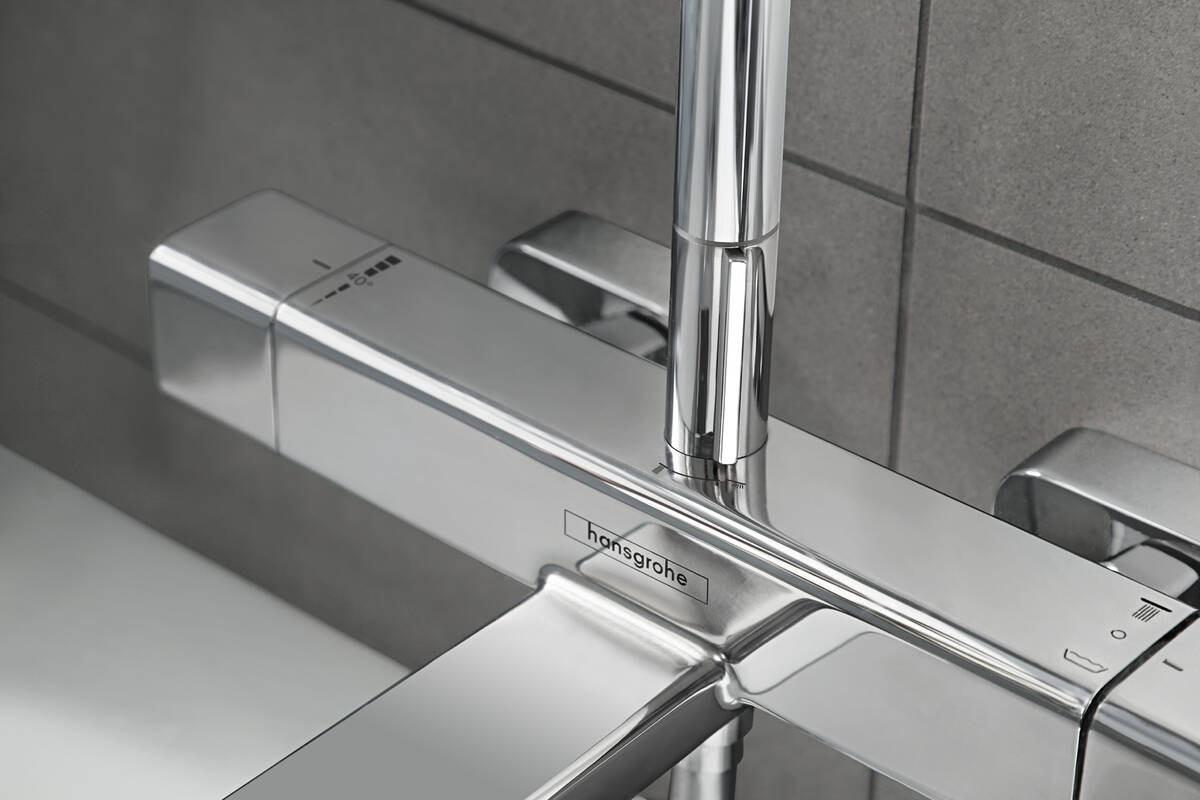

CoolContact thermostat: Prevents the housing from heating up, making showering even safer
thermostat Ecostat E
SafetyStop at 40°C
adjustable hot water limitation
suitable for continuous flow water heaters
mounting type: exposed installation
connection thread: G ½
centre distance: 150 ± 12 mm
pipe can be shortened in height
intrinsically safe against backflow
shower bar diameter: 22 mm
3 functions
flow rate RainAir spray at 3 bar: 15 l/min
