Description

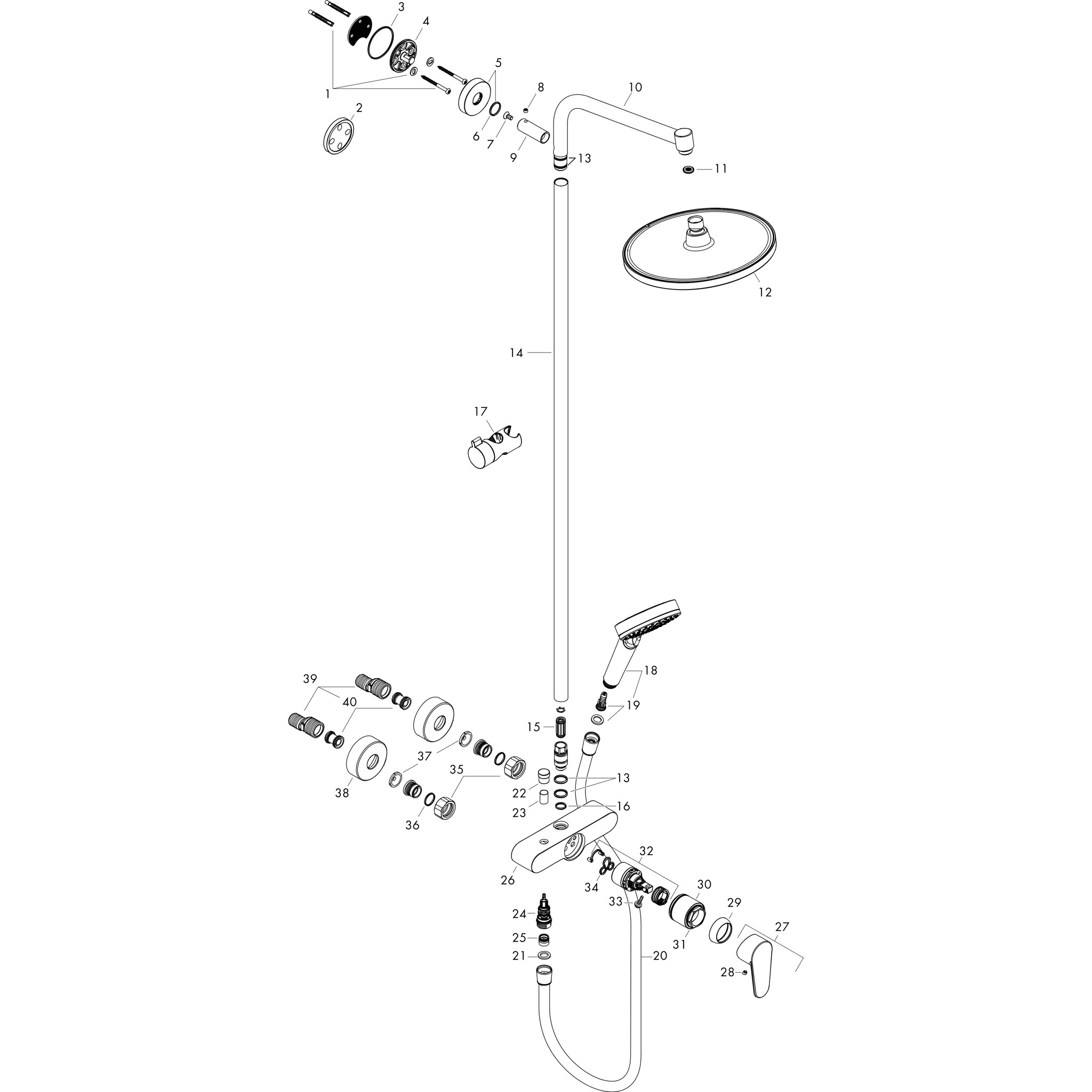

consists of: overhead shower, hand shower, single lever shower mixer, shower hose, slider, shower bar
overhead shower Crometta S 240
shower head size overhead shower: 240 mm
spray type overhead shower: Rain
spray disc surface: chrome
flow rate Rain spray at 3 bar: 15 l/min
spray type hand shower: Rain, IntenseRain
flow rate of hand shower at 3 bar: 13 l/min
maximum flow rate for Showerpipe at 3 bar: 15 l/min
minimum flow pressure: 1,8 bar
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable
slide inclination angle can be adjusted by 45°
pipe can be shortened in height
shower bar diameter: 22 mm
height-adjustable hand shower holder
shower arm length overhead shower: 350 mm
suitable for continuous flow water heaters with an output of 18 kW
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
ceramic cartridge
temperature limitation not adjustable
adjustable hot water limitation
2 functions
