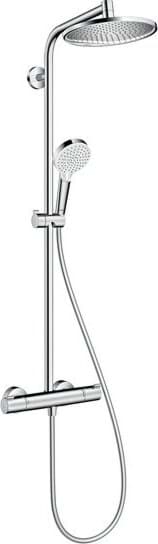

consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
overhead shower Crometta S 240
shower head size overhead shower: 240 mm
spray type overhead shower: Rain
spray disc surface: chrome
spray type hand shower: Rain, IntenseRain
maximum flow rate for Showerpipe at 3 bar: 16 l/min
minimum flow pressure: 1,2 bar
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable
slide inclination angle can be adjusted by 45°
height-adjustable slider
shower arm length overhead shower: 350 mm
thermostat Ecostat 1001 CL
SafetyStop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
pipe can be shortened in height
intrinsically safe against backflow
shower bar diameter: 22 mm
2 functions
