projection 183 mm
2 functions

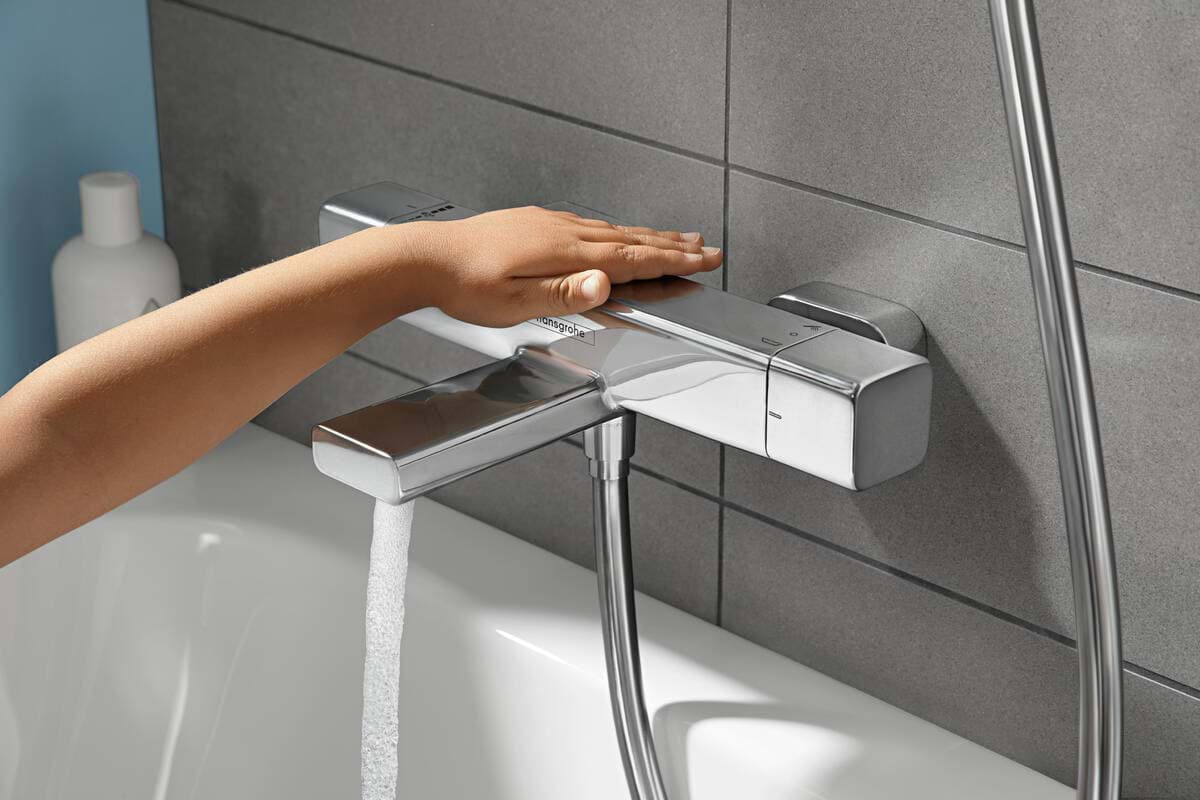

CoolContact thermostat: Prevents the housing from heating up, making showering even safer
thermostat cartridge
maximum flow rate at 3 bar: 18,6 l/min
flow rate for bath spout at 3 bar: 18,6 l/min
flow rate of hand shower at 3 bar: 15,4 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
protected against backflow, according to DIN EN 1717
with silencer
material handles: metal
connection dimension: DN15
connection type: G ½
centre distance: 150 ± 12 mm
dirt filter included
