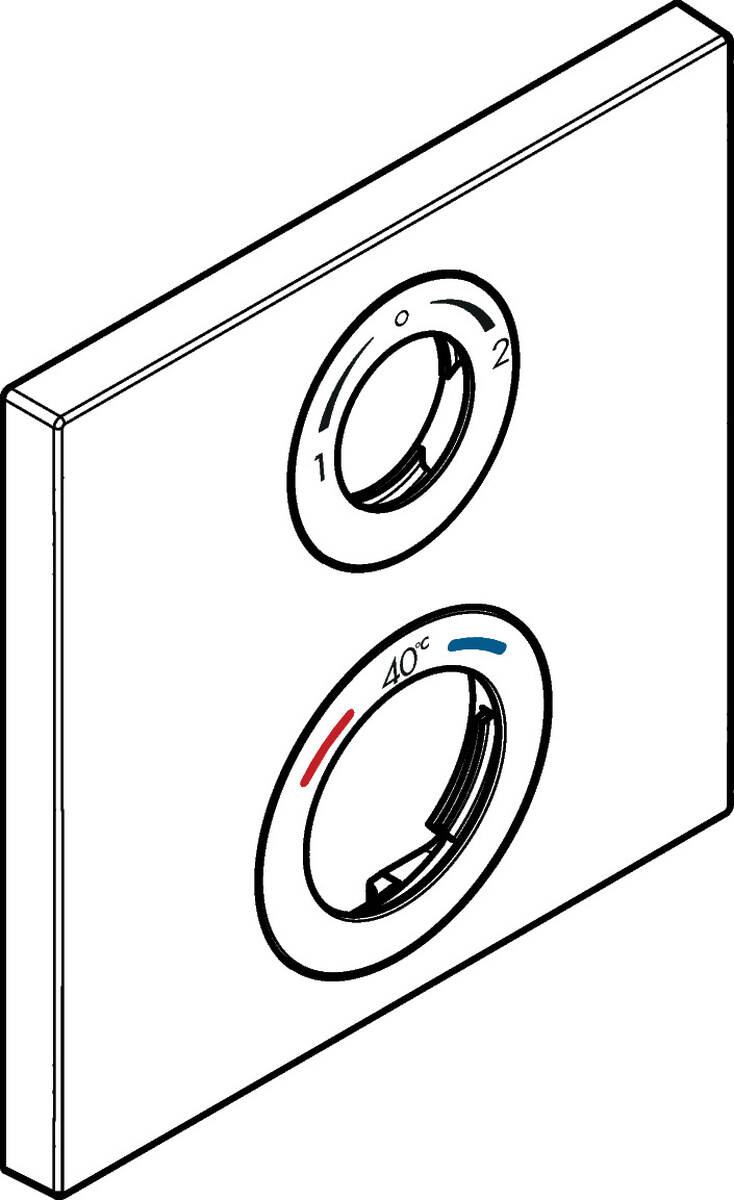

2 functions
volume control and diverter for 2 functions
thermostat cartridge, shut-off/ diverter valve
maximum flow rate at 1 bar: 16 l/min
flow rate upper outlet: 28 l/min
flow rate lower outlet: 25 l/min
maximum flow rate at 3 bar: 29 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar

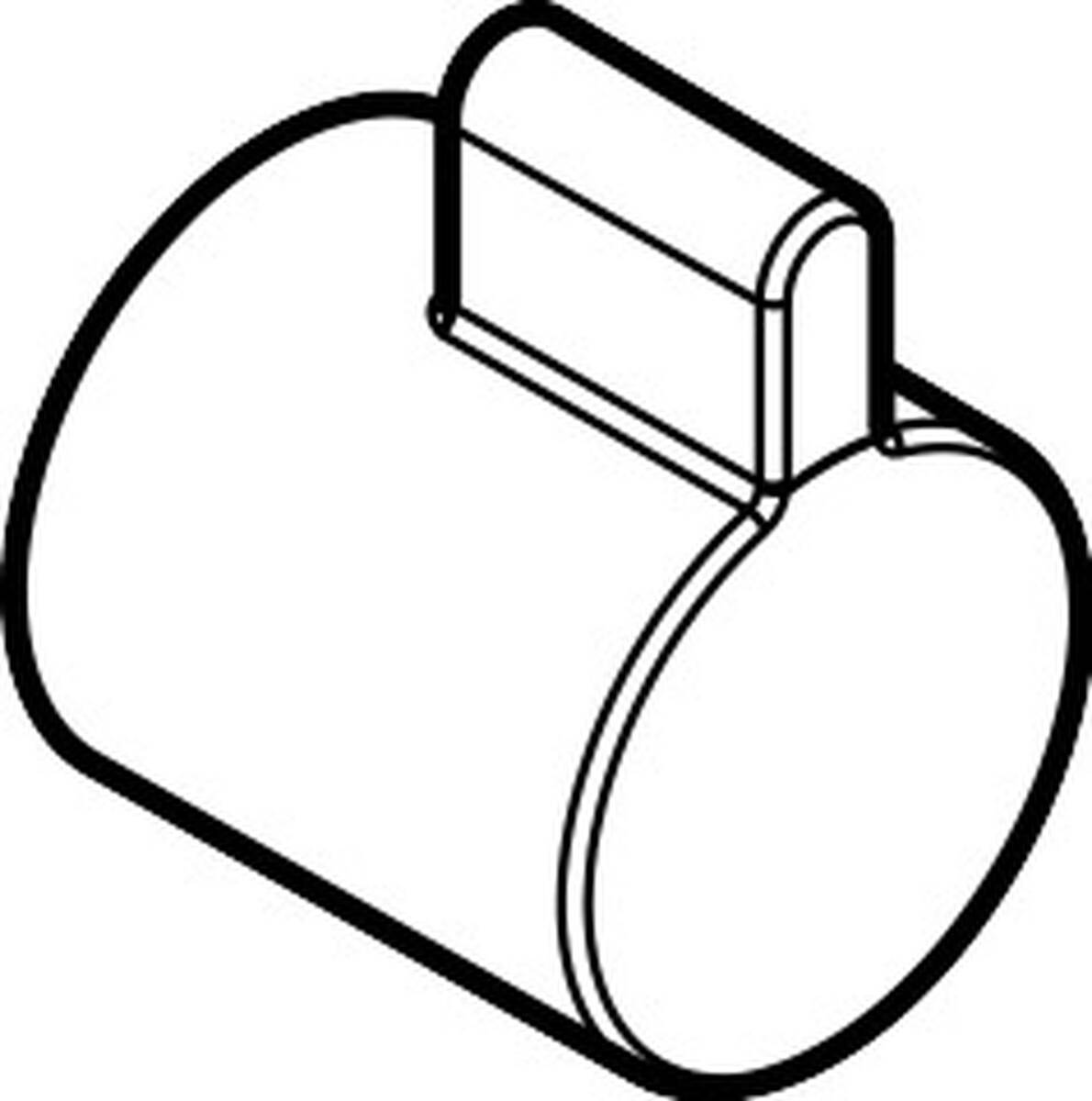

volume control
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
connection type: basic set
