Description
consists of: 4-hole rim mounted bath mixer, hand shower, shower holder, hose box
2 functions
projection: 152 mm
spray type mixer: normal spray
spray type hand shower: PowderRain
maximum pull-out length of hand shower: 1,45 m
maximum flow rate at 3 bar: 23,5 l/min
flow rate for bath spout at 3 bar: 23,5 l/min
flow rate of hand shower at 3 bar: 10,2 l/min
ceramic valves hot/cold 90°
non-return valve
connection dimension: DN15
connection type: basic set
installation on bath rim
min. operating pressure: 1 bar
max. operating pressure: 10 bar

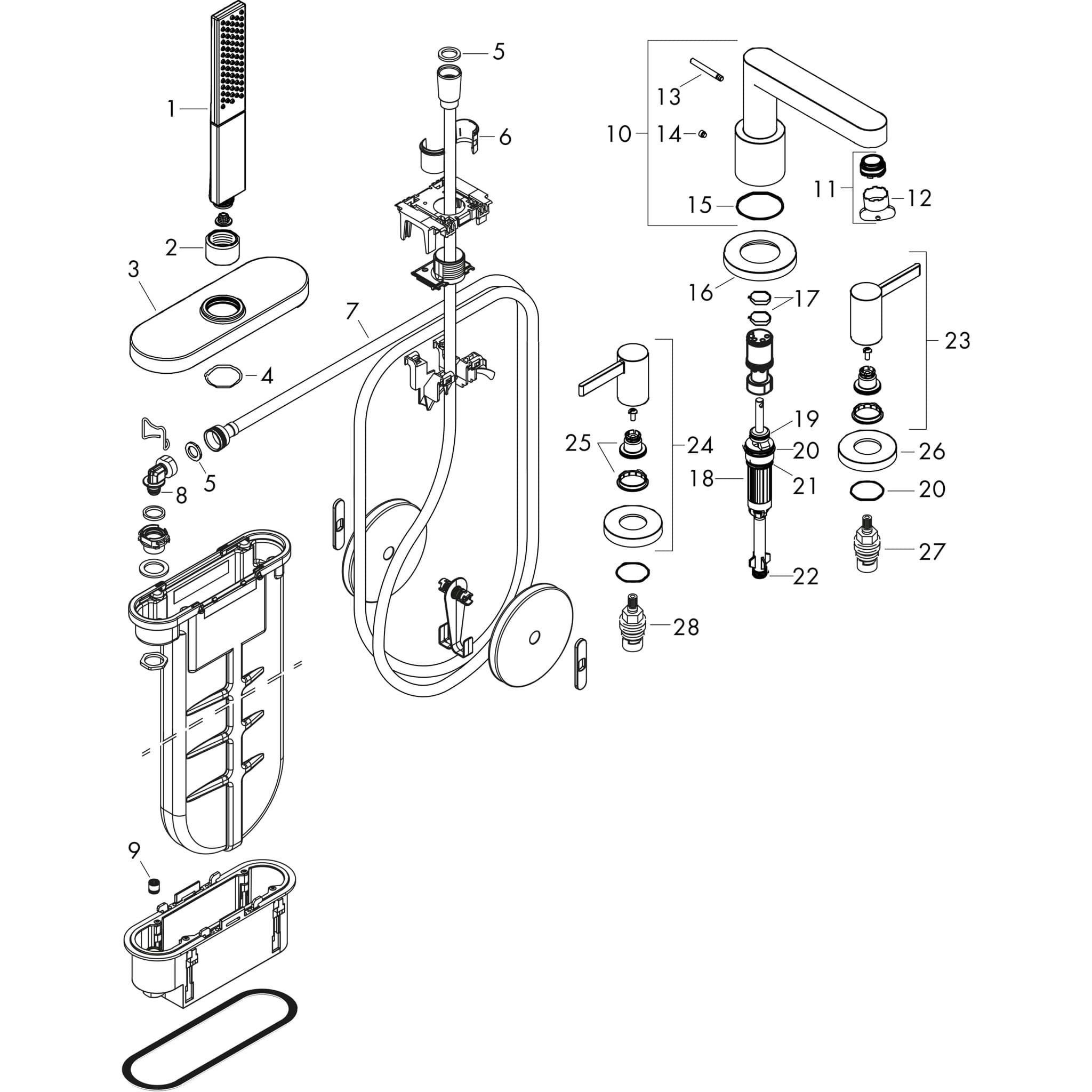

Spare Parts
Related products
Hans Grohe
HANSGROHE shower hose #93506000
Further option:
Warehouse
Hans Grohe
HANSGROHE Pull knob #98707700
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 41x1.5 #98168000
Further option:
Warehouse
Hans Grohe
HANSGROHE Rosette for spout #93978700
Further option:
Warehouse
Hans Grohe
HANSGROHE Rosette for handle #93976700
Further option:
Warehouse
Hans Grohe
HANSGROHE Hose chuck for shower head holder #96942000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 23x2.5 #98183000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 9x2.5 #98217000
Further option:
Warehouse
Hans Grohe
HANSGROHE Handle cold water side #93980700
Further option:
Warehouse
Hans Grohe
HANSGROHE Handle hot water side #93979700
Hans Grohe
HANSGROHE Mother #97584700
Further option:
Warehouse
Hans Grohe
HANSGROHE Outlet cpl. #93977700
Further option:
Warehouse
