Description
consists of: 3-hole rim mounted single lever bath mixer, hand shower, shower holder
2 functions
projection: 197 mm
spray type mixer: normal spray
maximum pull-out length of hand shower: 1.10 m
maximum flow rate at 3 bar: 19 l/min
flow rate for bath spout at 3 bar: 19 l/min
flow rate of hand shower at 3 bar: 15 l/min
ceramic cartridge
temperature limitation adjustable
connection dimension: DN15
connection type: basic set
installation on bath rim
min. operating pressure: 1 bar
max. operating pressure: 10 bar
spray type hand shower: Rain, RainAir, Whirl

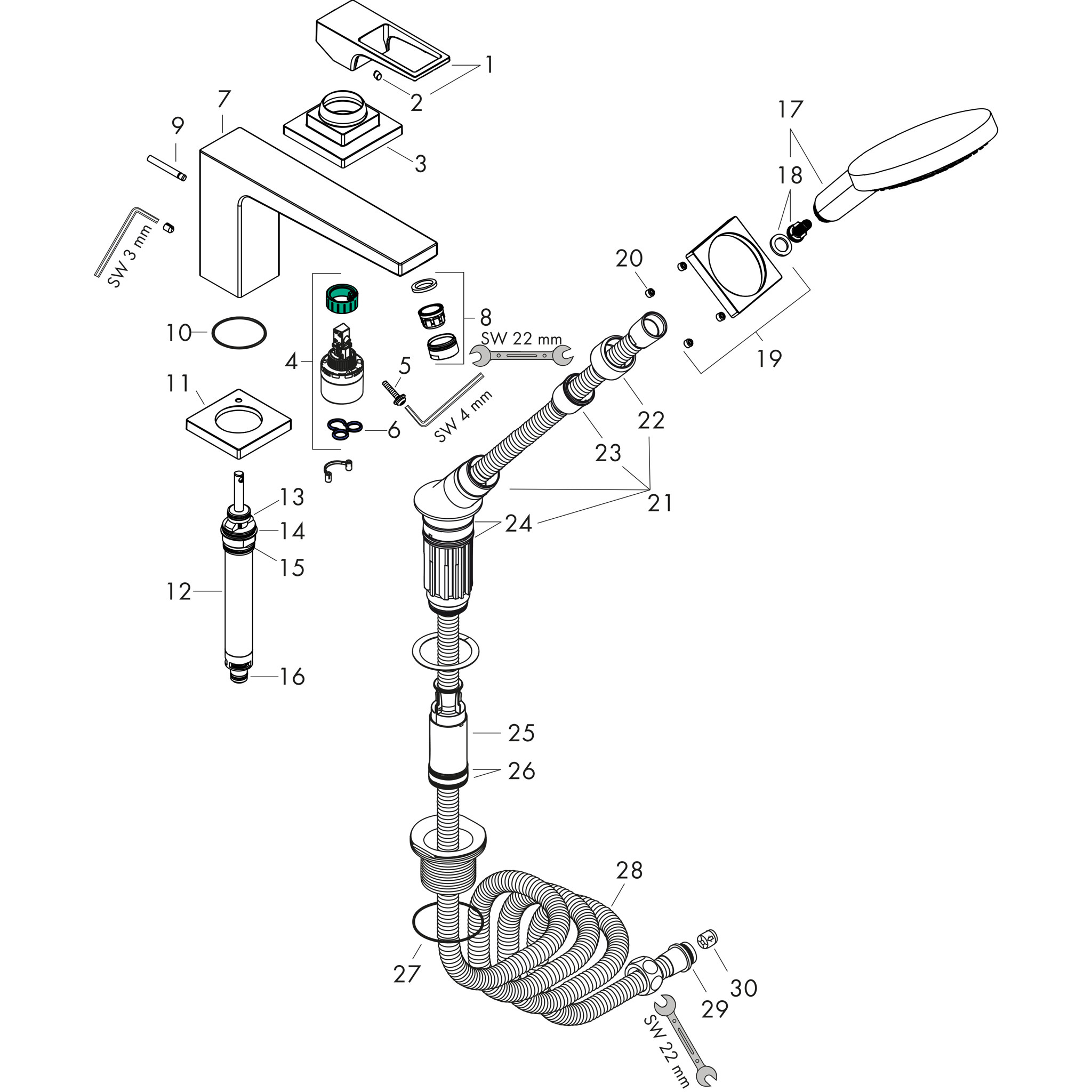

Spare Parts
Related products
Hans Grohe
HANSGROHE HG Nut AXOR for shower holder chrome #97584000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG diverter knob AXOR Massaud 4-hole #98707000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 41x1,5mm #98168000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG Handle PuraVida tap chrome #93076000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG escutcheon spout chrome #93154000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG escutcheon spout chrome #93152000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Insert for shower holder 3-hole and 4-hole rim-mounted mixers #96942000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 23x2,5mm #98183000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG o-ring seal 9x2,5mm #98217000
Further option:
Warehouse
Hans Grohe
HANSGROHE Hose brake for Secuflex #98656000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG escutcheon spout chrome #93138000 - Chrome
Hans Grohe
HANSGROHE HG Shower holder for 3-/4-h.bath mixer #95996000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 38x2 #98396000
Further option:
Warehouse
Hans Grohe
HANSGROHE Spout cpl. #93151000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring seal 11x2mm #98127000
Further option:
Warehouse
Hans Grohe
HANSGROHE Ceramic cartridge complete M3/ M2 #92730000
Further option:
Warehouse
