Description
consists of: single lever basin mixer, waste set
ComfortZone: 230
projection: 165 mm
spout height: 226 mm
handle variant: flat handle
swivel range 120°
spray type: normal spray
maximum flow rate at 3 bar: 5 l/min
ceramic cartridge
temperature limitation adjustable
suitable for continuous flow water heaters
push-open waste set G 1¼
material waste set: metal
connection type: G ⅜ hose connections
connection dimension: DN15
handle position on the side: bottom-side at the base body (not suitable for wash bowls)
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

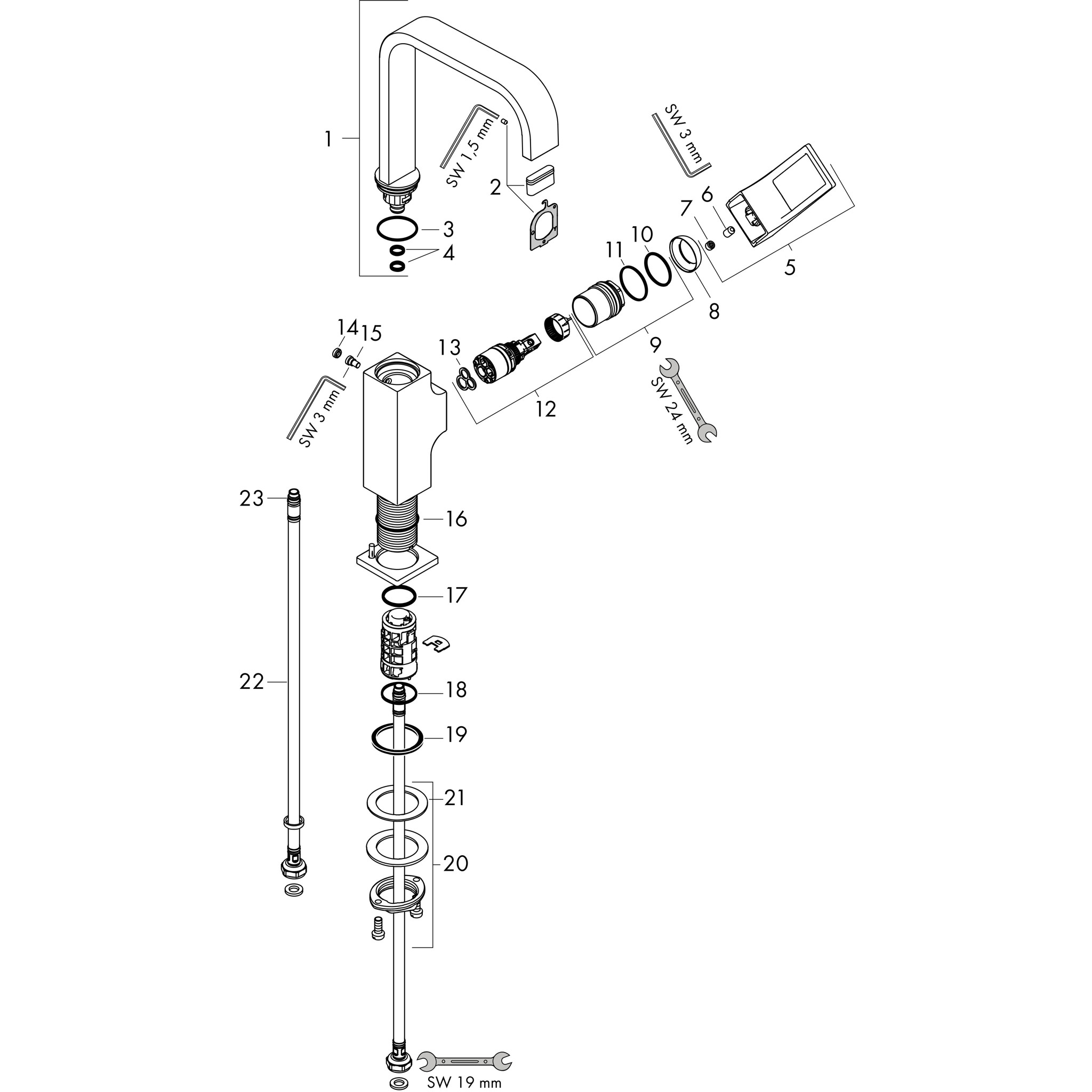

Spare Parts
Related products
Hans Grohe
HANSGROHE HG screw DIN 912-M6x20-A2 chrome #93088000
Further option:
Warehouse
Hans Grohe

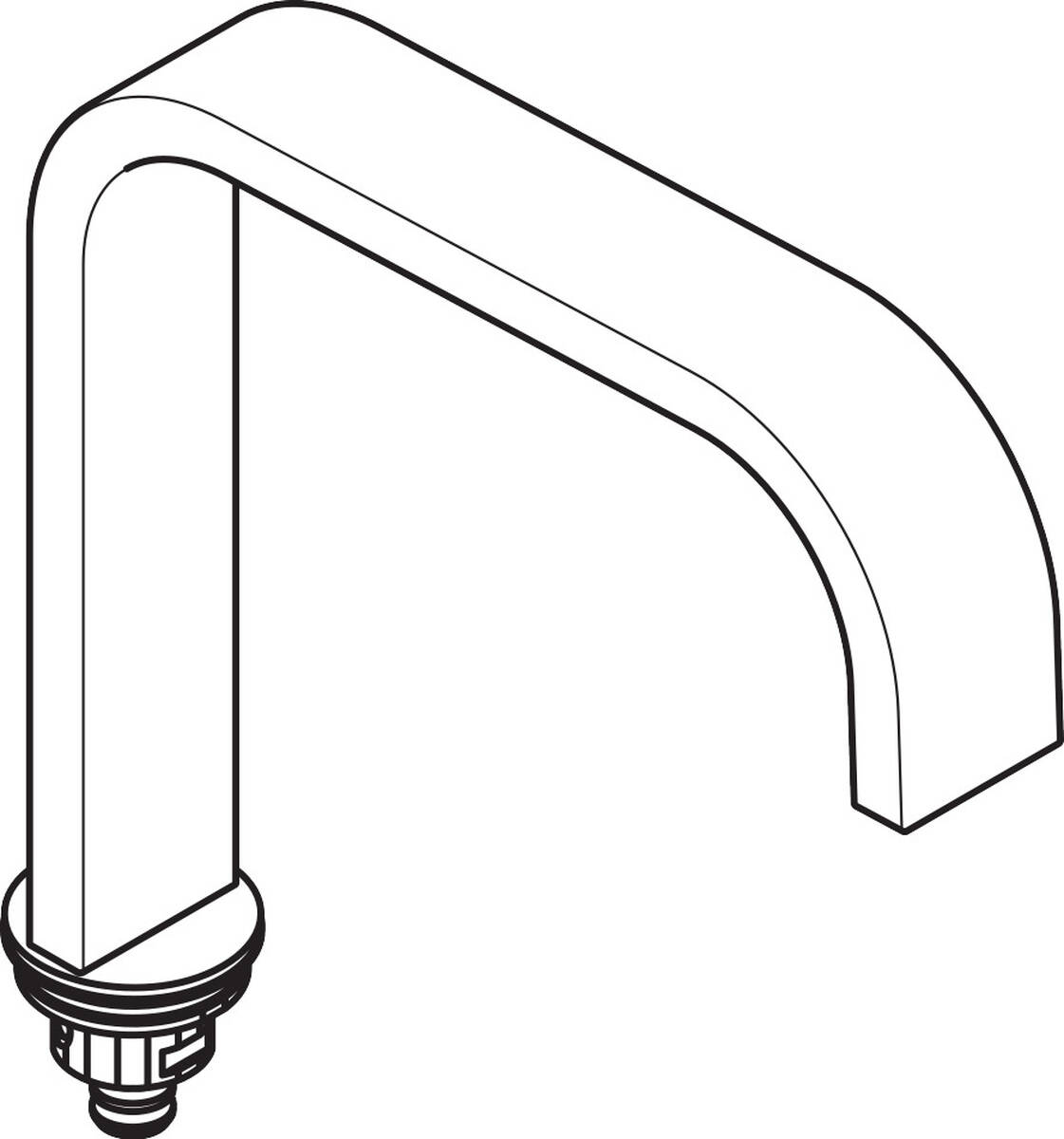

HANSGROHE Spout 165 mm #93084000 - Chrome
Hans Grohe

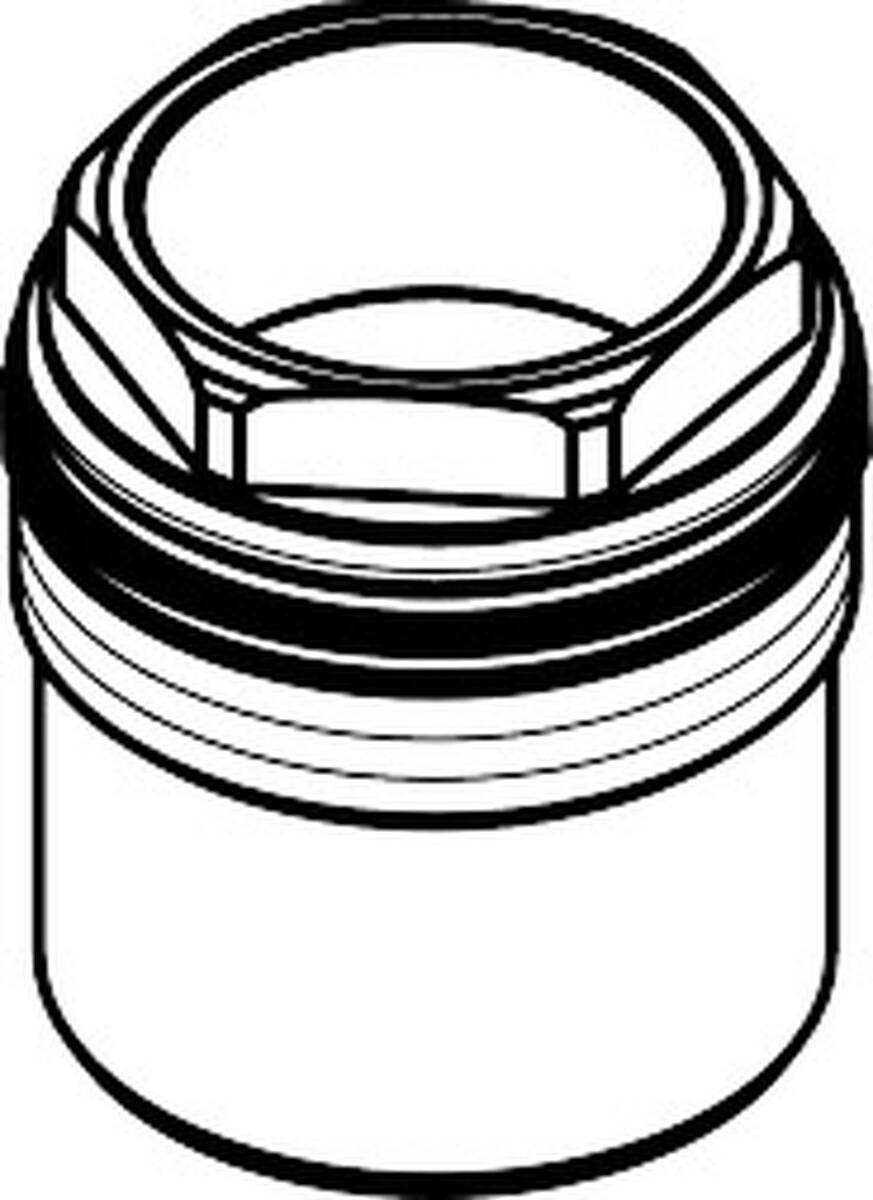

HANSGROHE Mother #93086000
Further option:
Warehouse
Hans Grohe
HANSGROHE Plug #93087000
Further option:
Warehouse
Hans Grohe

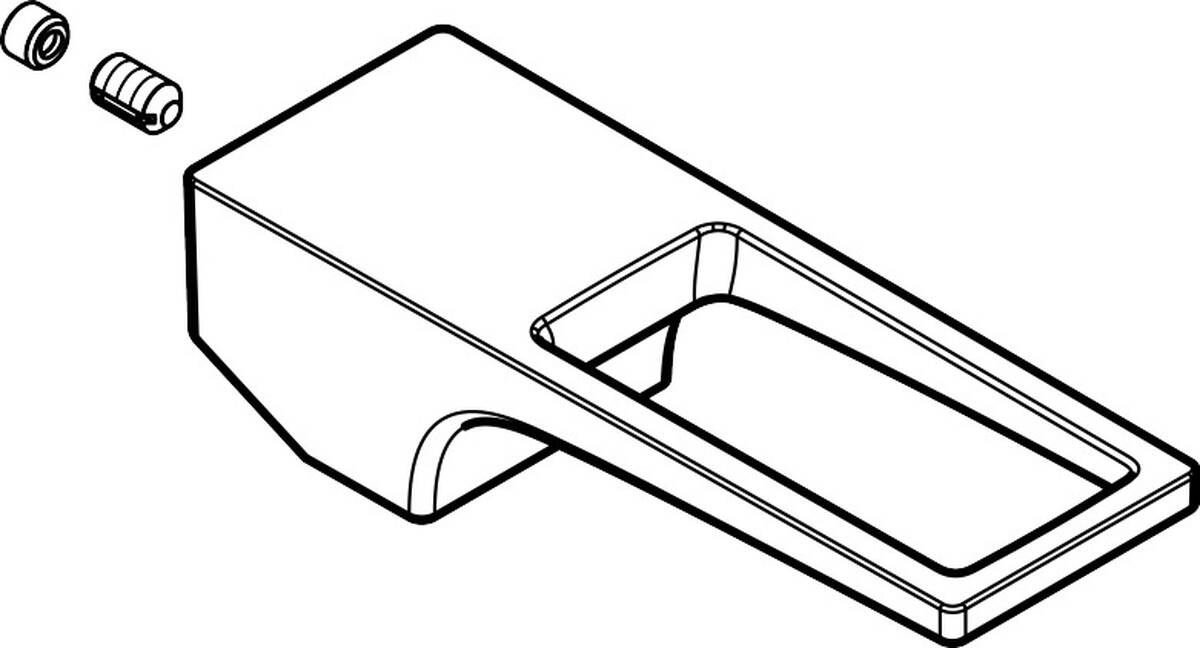

HANSGROHE HG Handle PuraVida tap chrome #93083000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 32x2mm #92936000
Hans Grohe
HANSGROHE HG flange basin mixer chrome #95493000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Waste set push-open for basin and bidet mixers #50100000 - Chrome
Further option:
Warehouse
