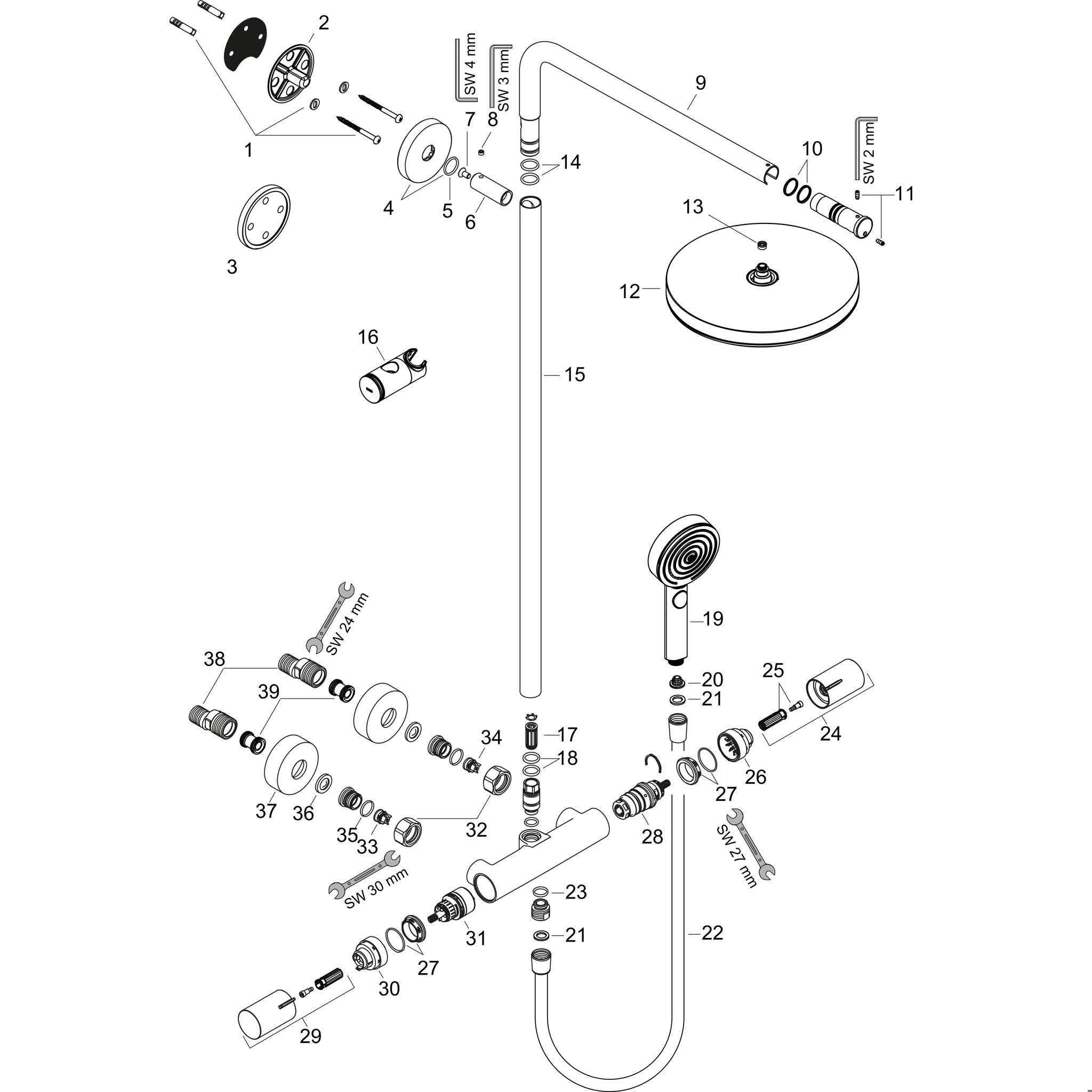

consists of: overhead shower, hand shower, shower thermostat, shower bar, slider, shower hose
overhead shower Pulsify 260 1jet
shower head size overhead shower: 260 mm
spray type overhead shower: PowderRain
spray disc surface: graphite
Fast Drain empties the overhead shower from an angle of 10°
removable shower head
flow rate PowderRain spray at 3 bar: 11,2 l/min
spray type hand shower: PowderRain, IntenseRain, Massage spray
flow rate of hand shower at 3 bar: 10,5 l/min
maximum flow rate for Showerpipe at 3 bar: 11,2 l/min
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable
height-adjustable slider with locking push-button slider
slider rotatable on the pipe for left or right operation
shower arm length overhead shower: 460 mm
swivel shower arm
thermostat Ecostat Fine
SafetyStop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
Outlets may not be operated simultaneously
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
pipe can be shortened in height
intrinsically safe against backflow
shower bar diameter: 22 mm
2 functions
