Description

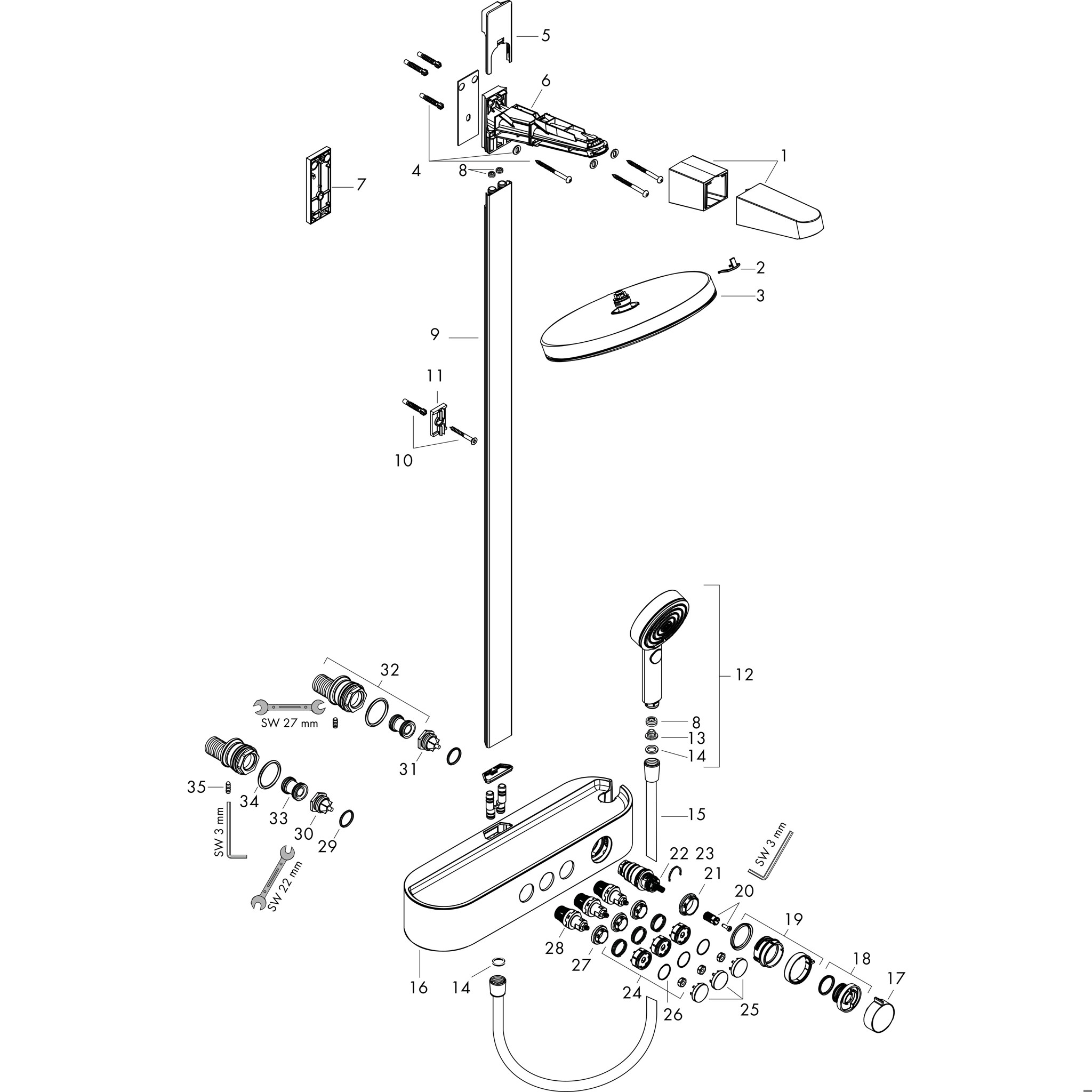

consists of: overhead shower, hand shower, shower thermostat, shower bar, shower hose

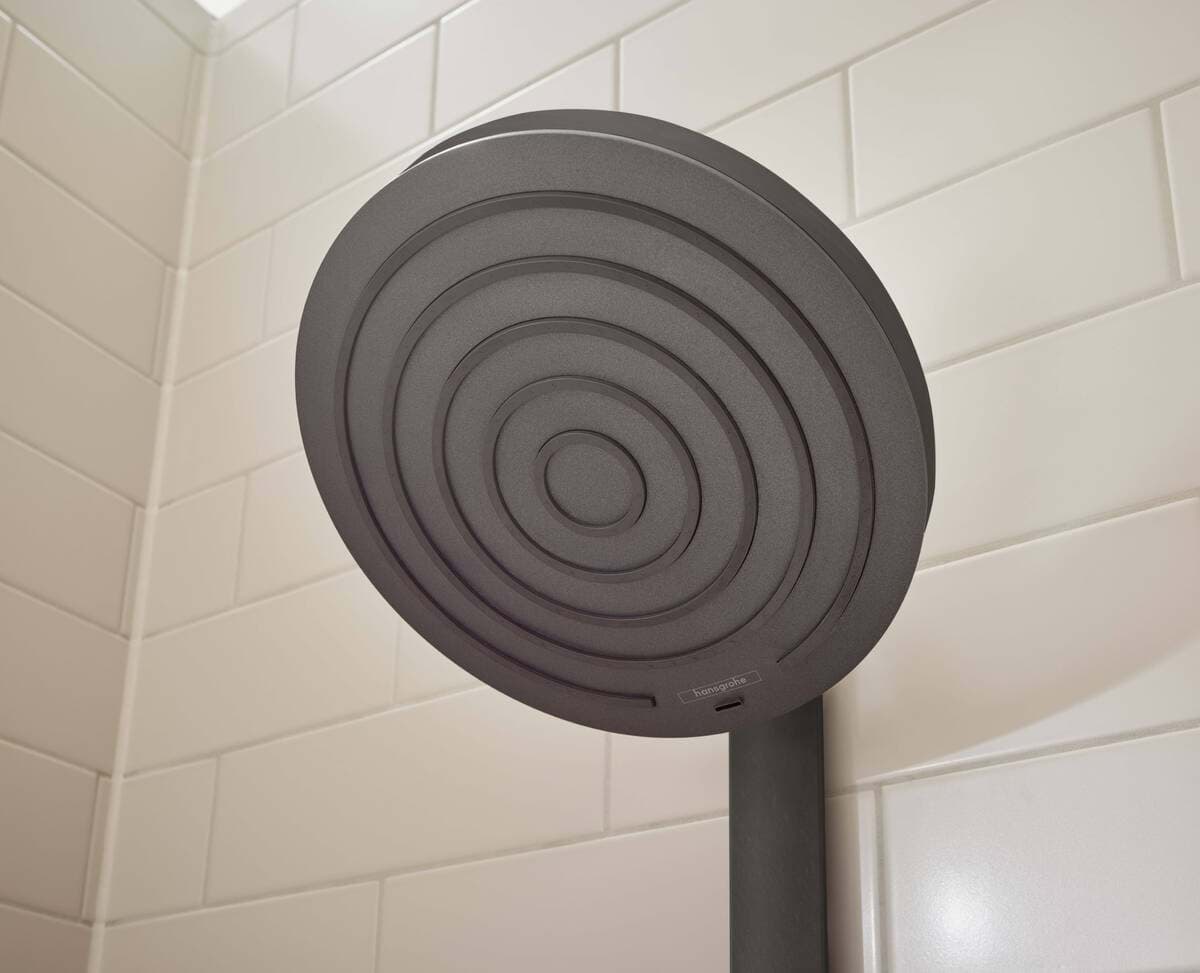

overhead shower Pulsify 260 2jet
shower head size overhead shower: 260 mm
spray type overhead shower: PowderRain, Intense PowderRain
spray disc surface: graphite
Fast Drain empties the overhead shower from an angle of 10°

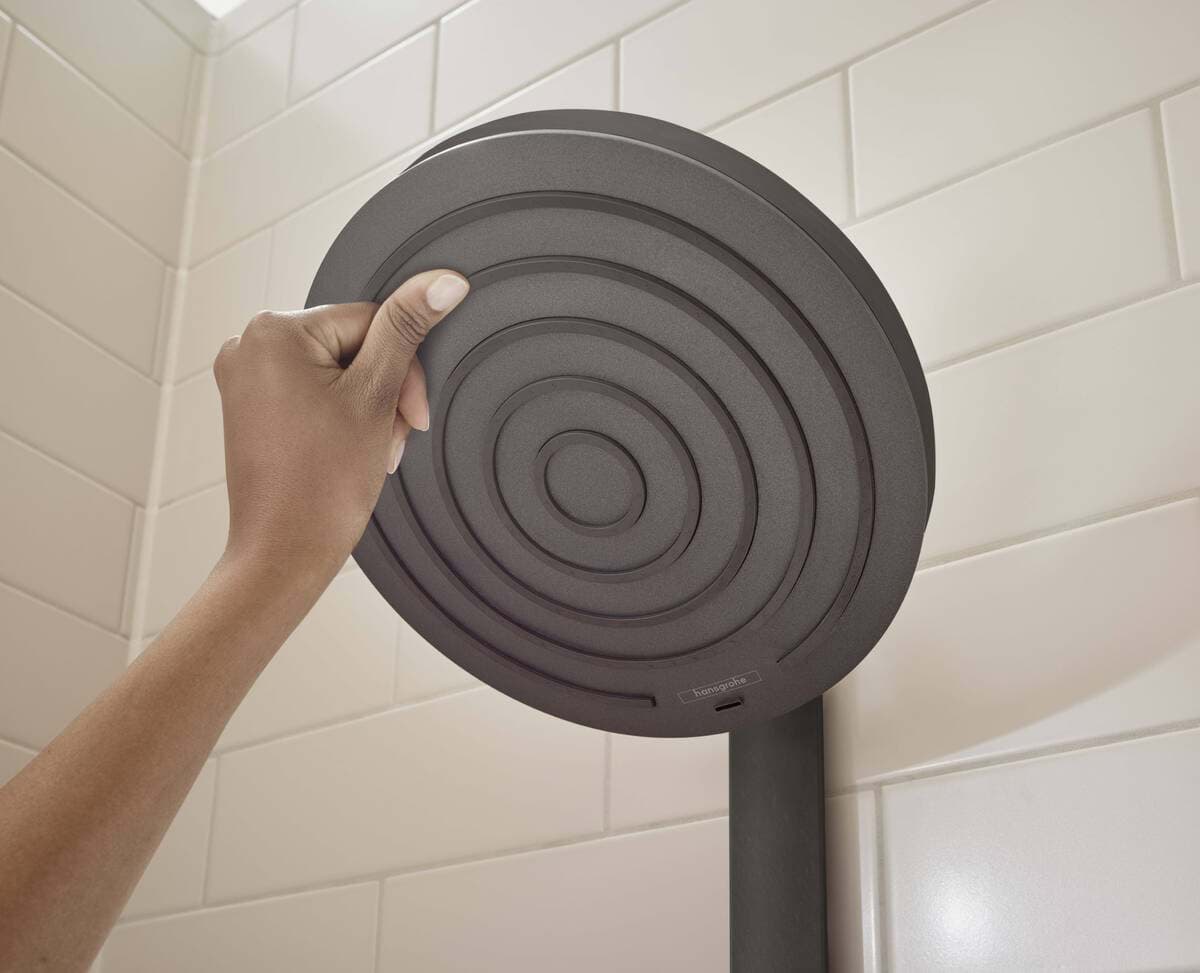

removable shower head
shelf made of plastic
surface shelf: graphite
flow rate IntenseRain spray at 3 bar: 7,5 l/min
flow rate PowderRain spray at 3 bar: 7,5 l/min
spray type hand shower: PowderRain, IntenseRain, Massage spray
flow rate of hand shower at 3 bar: 7,5 l/min
maximum flow rate for Showerpipe at 3 bar: 7,5 l/min
minimum flow pressure: 1,7 bar
max. operating pressure: 10 bar
ball-joint: overhead shower inclinable by 13-39°
shower arm length overhead shower: 233 mm
CoolContact thermostat: Prevents the housing from heating up, making showering even safer
thermostat ShowerTablet Select 400
SafetyStop at 40°C
simultaneous utilization of 3 functions
suitable for continuous flow water heaters
mounting type: exposed installation
connection thread: G ½
centre distance: 150 ± 12 mm
pipe can be shortened in height
intrinsically safe against backflow
bar width: 48 mm
Thermostat is delivered with buttons hand shower, PowderRain, Intense PowderRain
water flow control with stop function
2 functions
EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
