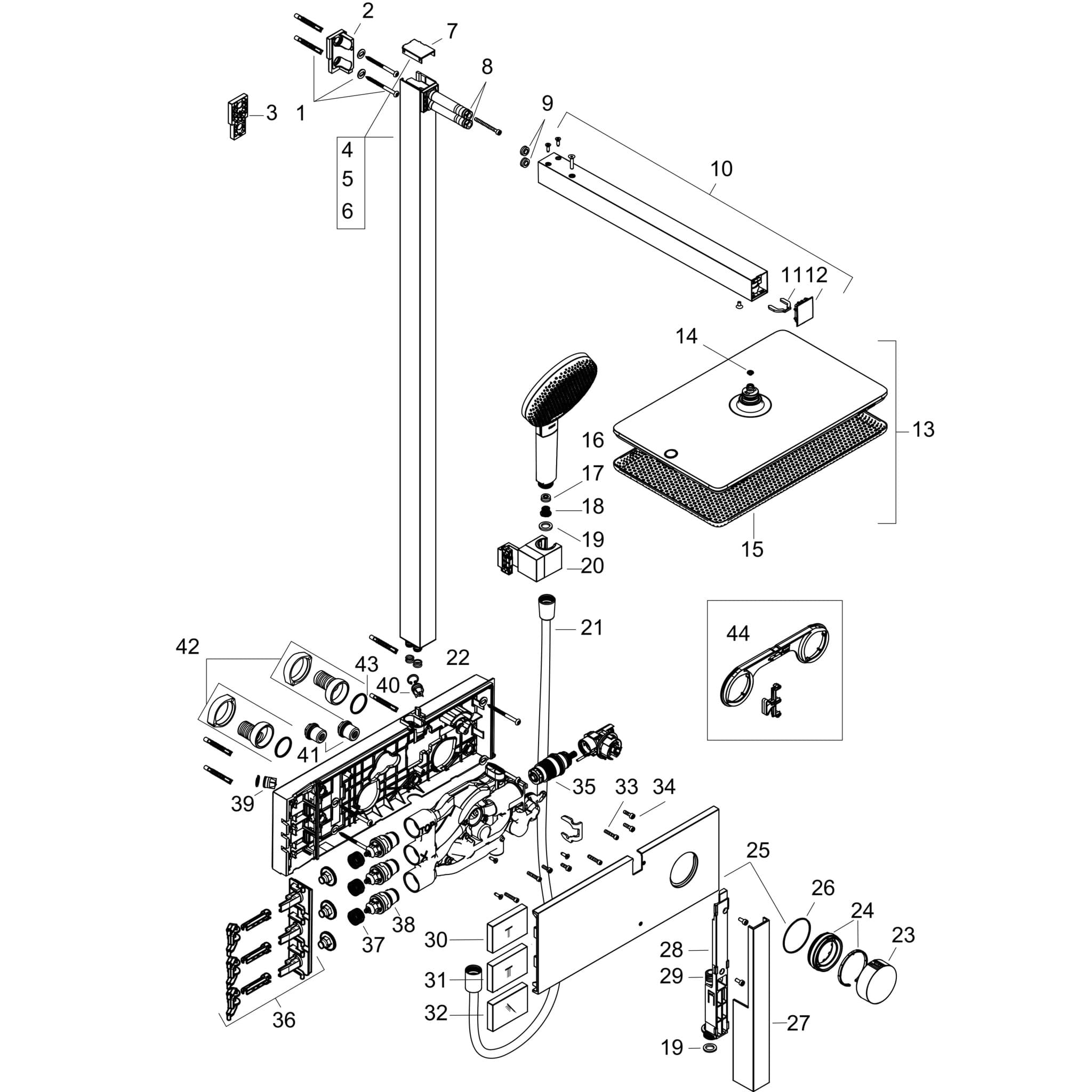

consists of: overhead shower, hand shower, slider, shower thermostat, shower hose, shower bar
overhead shower Raindance Alive Q 210/340 2jet
shower head size overhead shower: 214 x 343 mm
spray type overhead shower: Rain, PowderRain
spray disc surface: graphite
flow regulator: 8 l/min (with possible tolerances -20 %)
flow rate PowderRain spray at 3 bar: 6,4 l/min
spray type hand shower: RainAir, PowderRain, Massage spray
flow rate of hand shower at 3 bar: 6,7 l/min
maximum flow rate for Showerpipe at 3 bar: 12,7 l/min
minimum flow pressure: 1,9 bar
max. operating pressure: 10 bar
DropGuard reduces the dripping after stopping the shower to just a few seconds
convenient spray selection via Select button on the hand shower
ball-joint: overhead shower angle adjustable
design cover conceals the nozzles, flat, minimalist design
design cover can be removed easily and without tools for cleaning
design cover surface: graphite
height-adjustable, easy slide slider
thermostat ShowerSelect Comfort E
material thermostat cover, handle and Select buttons: metal
SafetyStop at 40°C
adjustable hot water limitation
comfortable turning on / off of outlets with large Select-paddle
simultaneous use of several outlets
suitable for continuous flow water heaters
mounting type: exposed installation
connection thread: G ½
centre distance: 150 ± 12 mm
intrinsically safe against backflow
Designflex textile shower hose, water-resistant and water-repellant material, unique design with multi-colored braided yarns
2 functions
EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)
