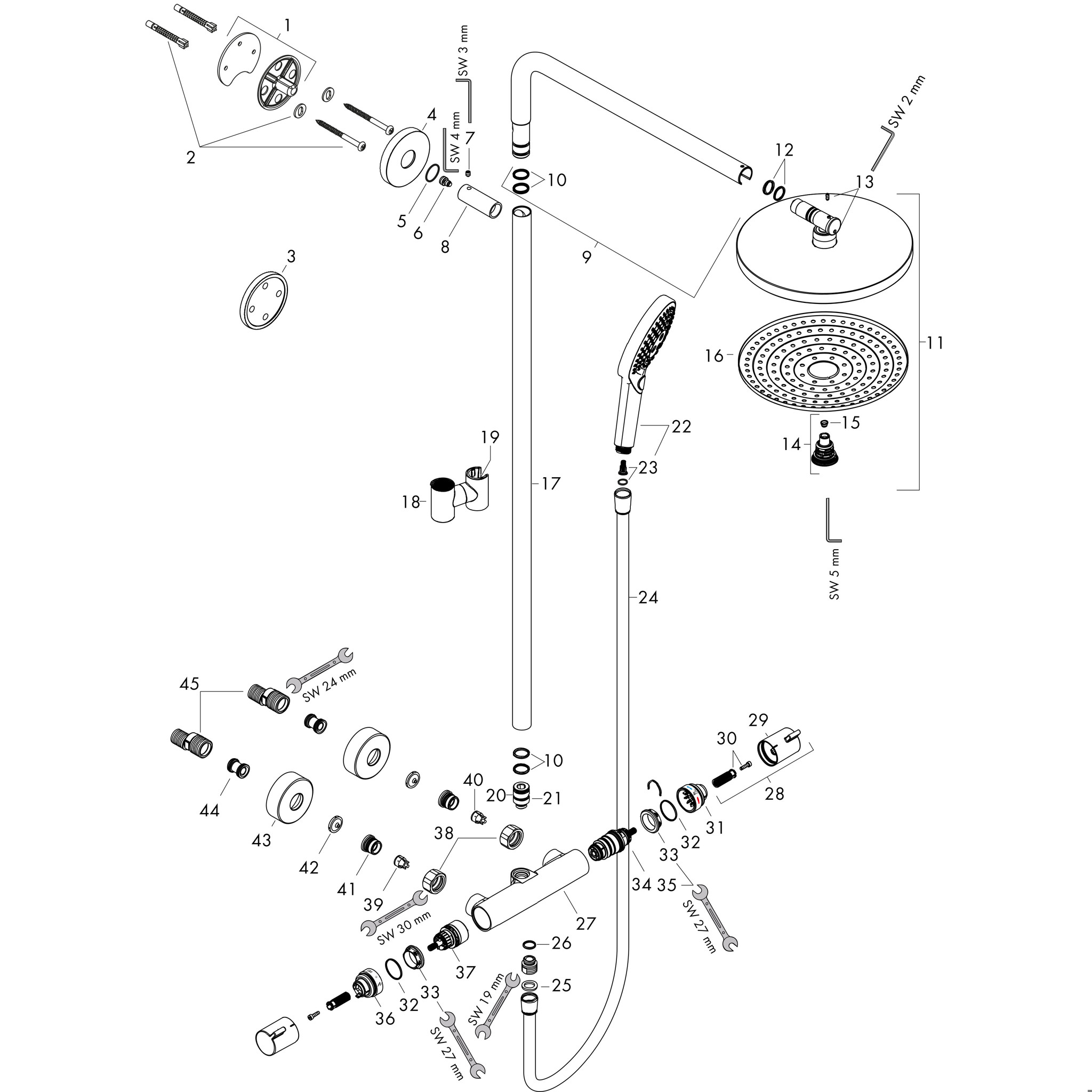

consists of: overhead shower, hand shower, shower thermostat, shower hose, slider, shower bar
overhead shower Raindance Select S 240 2jet
shower head size overhead shower: 240 mm
spray type overhead shower: RainAir, Rain
spray disc surface: white
spray type hand shower: RainAir, Rain, Whirl
maximum flow rate for Showerpipe at 3 bar: 15 l/min
minimum flow pressure: 1,5 bar
max. operating pressure: 10 bar
convenient spray selection via Select button
height-adjustable slider
shower arm length overhead shower: 398 mm
swivel shower arm
thermostat Ecostat Comfort
SafetyStop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
pipe can be shortened in height
intrinsically safe against backflow
shower bar diameter: 25 mm
2 functions
