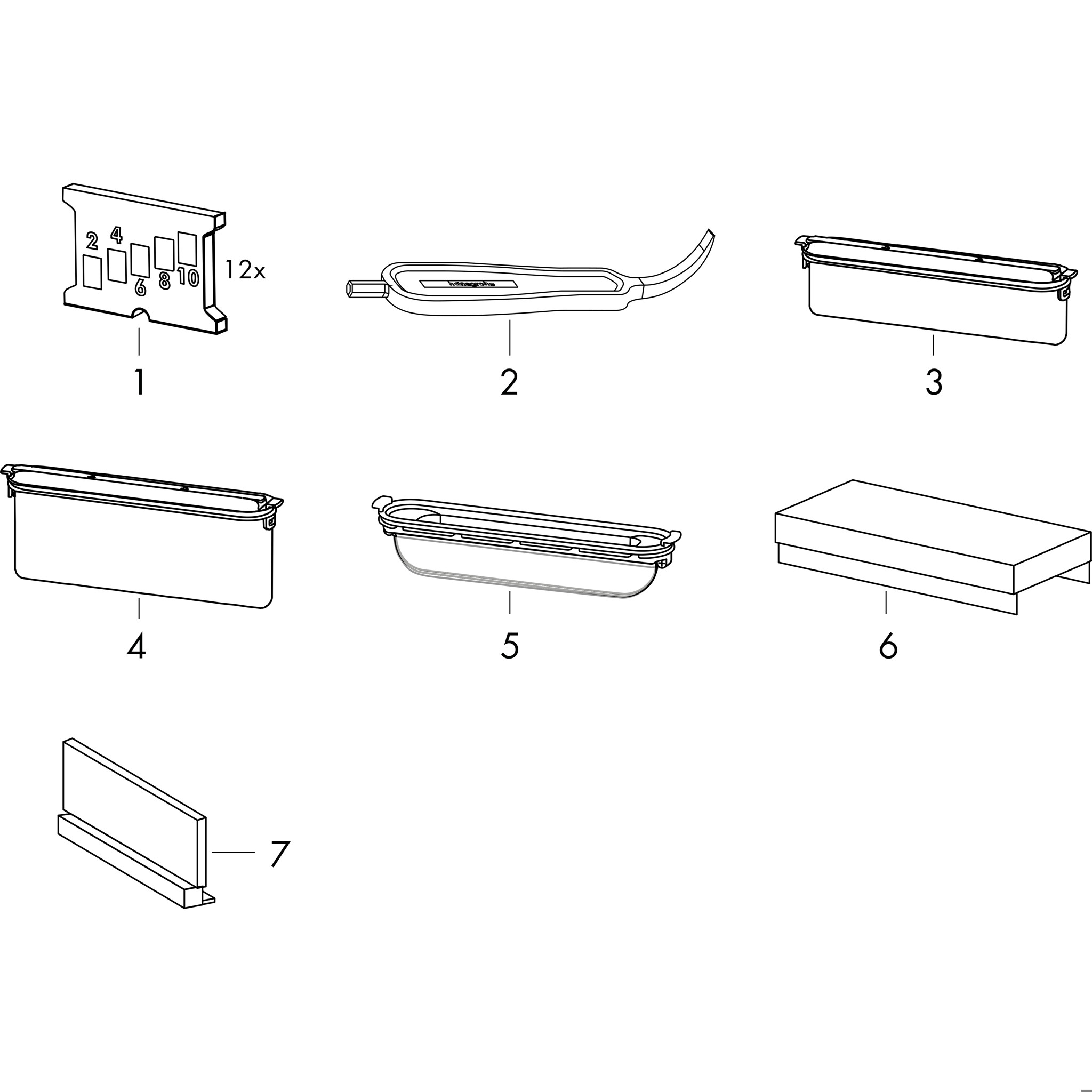

consists of: design grate, height adjustable frame, wall installation flange, Dryphon
mounting type: wall-mounted, free in the floor
easy to clean surface
easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)
tile thickness: up to 18 mm
suitable for any type of tile
up to 60 l/min drainage capacity
where to use: new construction, renovation
grate removal tool allows easy removal of the finish set
type of odour seal: mechanical
Dryphon enables waterless siphon system
minimal installation height: 84 mm (flat uBox), 102 mm (standard uBox)
wall mounting possible
tile inlay depth: 12 mm
grate material: Stainless Steel 304 (1.4301)
suitable for primary and secondary drainage
frame width: 62 mm
suitable for Rainmaker Select products with glass optics
