Description
consists of: Thermostat, shower holder
5 functions
simultaneous use of several outlets
Select push-button on/off control for 5 functions
depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
thermostat cartridge, Start/stop valve to operate the functions
flow rate per outlet: 26 l/min
flow rate by simultaneous use of all outlets: 38 l/min
maximum flow rate at 3 bar: 38 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
for shower hoses with a conical nut
connection type: basic set
thermostat is delivered with buttons hand shower, Waterfall, Rain large, MonoRain, body shower

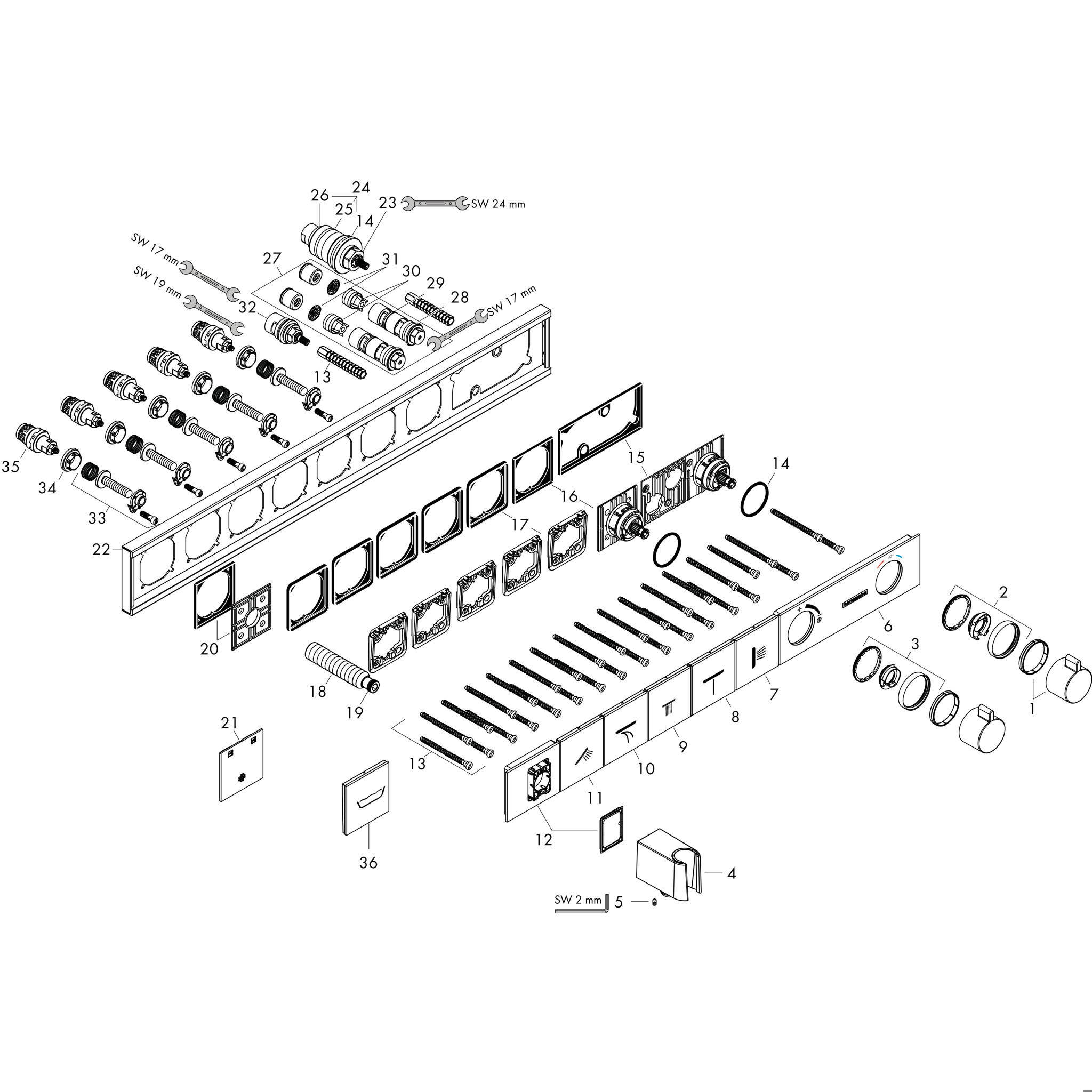

Spare Parts
Related products
Hans Grohe
HANSGROHE Handle adapter #93315000
Further option:
Warehouse
Hans Grohe
HANSGROHE Hand shower symbol #93106610
Further option:
Warehouse
Hans Grohe
HANSGROHE Lining (conical) #94163000
Further option:
Warehouse
Hans Grohe

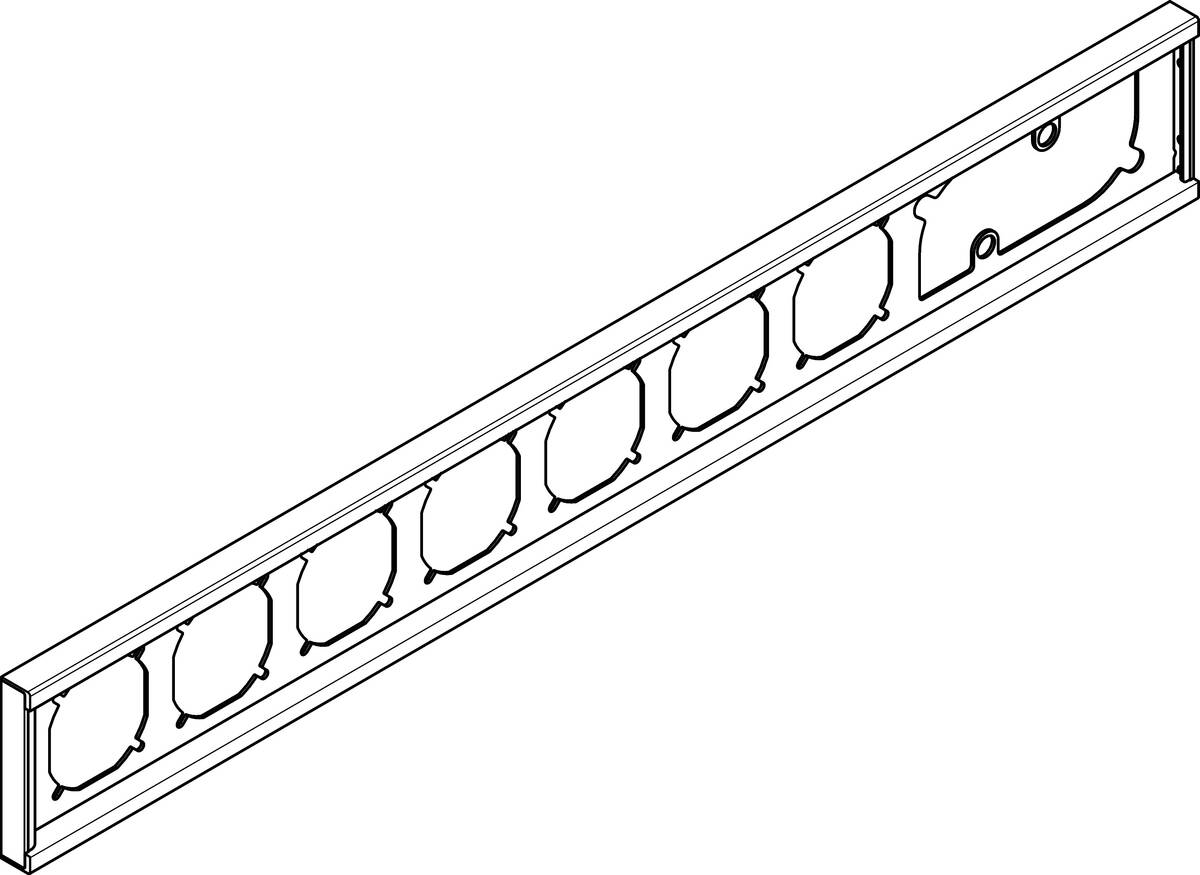

HANSGROHE Cover for Unica'88 wall bar #93108610
Further option:
Warehouse
Hans Grohe
HANSGROHE Thermostat handle #92215000
Further option:
Warehouse
Hans Grohe
HANSGROHE Select adapter #93103000
Further option:
Warehouse
Hans Grohe
HANSGROHE Handle adapter #93109000
Further option:
Warehouse
Hans Grohe
HANSGROHE Stop washer #93112000
Further option:
Warehouse
Hans Grohe
HANSGROHE Extension 25 mm #93435000
Further option:
Warehouse
Hans Grohe
HANSGROHE Symbol handshower #93306610
Further option:
Warehouse
Hans Grohe
HANSGROHE Sealing set #96636000
Further option:
Warehouse
Hans Grohe
HANSGROHE Side shower symbol #93304610
Further option:
Warehouse
Hans Grohe
HANSGROHE Shower holder compl. #93114000
Further option:
Warehouse
Hans Grohe
HANSGROHE Cover #93105610
Further option:
Warehouse
Hans Grohe
HANSGROHE Rosette #93318000
Further option:
Warehouse
Hans Grohe
HANSGROHE Dirt trap sieve #97367000
Further option:
Warehouse
Hans Grohe
HANSGROHE Service unit #93406000
Further option:
Warehouse
Hans Grohe
HANSGROHE Extension 16 mm #93440000
Further option:
Warehouse
Hans Grohe
HANSGROHE Rain large overhead shower symbol #93107610
Further option:
Warehouse
Hans Grohe
HANSGROHE Backflow preventer #96655000
Further option:
Warehouse
Hans Grohe
HANSGROHE Surge symbol #93305610
Further option:
Warehouse
Hans Grohe
HANSGROHE Assembly aid #93417000
Further option:
Warehouse
Hans Grohe
HANSGROHE Lining #95531000
Further option:
Warehouse
Hans Grohe
HANSGROHE Tub symbol #93303610
Further option:
Warehouse
Hans Grohe
HANSGROHE Stop washer #93113000
Further option:
Warehouse
Hans Grohe
HANSGROHE Connection nipple G½ #93830000
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 11x2 #98127000
Further option:
Warehouse
