Description
2 functions
maximum flow rate at 3 bar: 25,6 l/min
flow rate for bath spout at 3 bar: 25,6 l/min
flow rate of hand shower at 3 bar: 24,8 l/min
ceramic cartridge
temperature limitation adjustable
diverter with automatic resetting
non-return valve
with silencer
with integrated safety combination EN 1717
connection type: basic set
wall-mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar

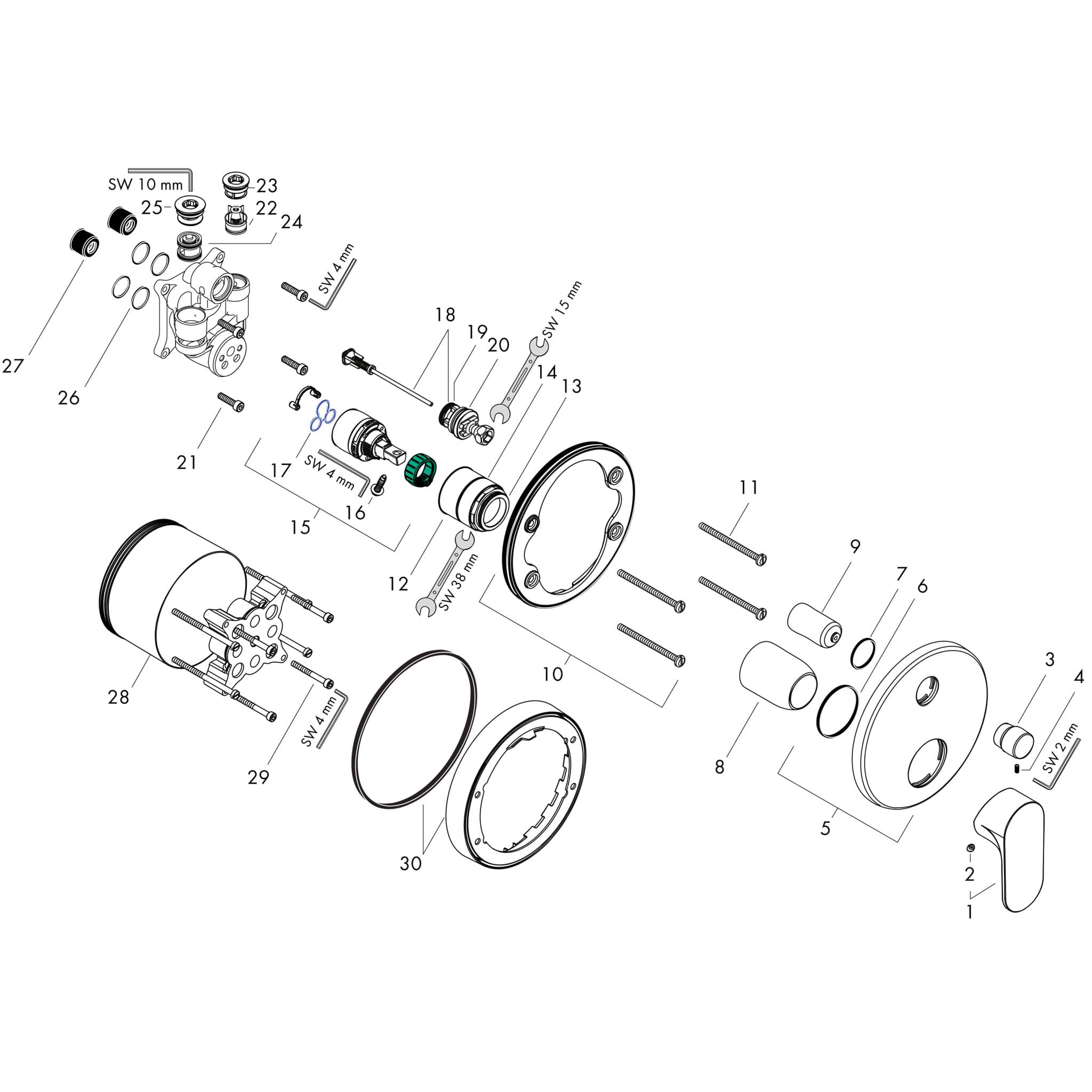

Spare Parts
Related products
Hans Grohe
HANSGROHE O-ring 19x2 #98426000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG vacuum breaker DN20 #96753000
Further option:
Warehouse
Hans Grohe
HANSGROHE Screw (cylindric) M5 x 20 #93244000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG O-ring seal 23x3mm #98142000
Further option:
Warehouse
Hans Grohe
HANSGROHE Handle for bath- / shower-mixer #94654000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 43x3 #98418000
Further option:
Warehouse
Hans Grohe
HANSGROHE Non return valve OV20/DN20 #96655000
Further option:
Warehouse
Hans Grohe
HANSGROHE HG diverter sleeve bath mixer 24mm #98794000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Extension 10 mm for iBox universal with shut-off unit #92332000
Further option:
Warehouse
Hans Grohe
HANSGROHE Diverter for bath mixer for concealed installation with iBox universal #95014000 - Chrome
Further option:
Warehouse
Hans Grohe
HANSGROHE Ceramic cartridge complete M3/ M2 #92730000
Further option:
Warehouse
