Description
consists of: hose box, shower hose, escutcheon
suitable for rim or tile mounted installation
1 function
sBox for quiet, smooth and protected hose guidance
connection dimension: DN15
no additional maintenance opening required
bath rim width at least 80 mm
clamping range: 0 - 30 mm
maximum pull-out length of hand shower 1,45 m
removable for service at any time
protected against backflow, according to DIN EN 1717
maximum flow rate at 3 bar: 9,5 l/min

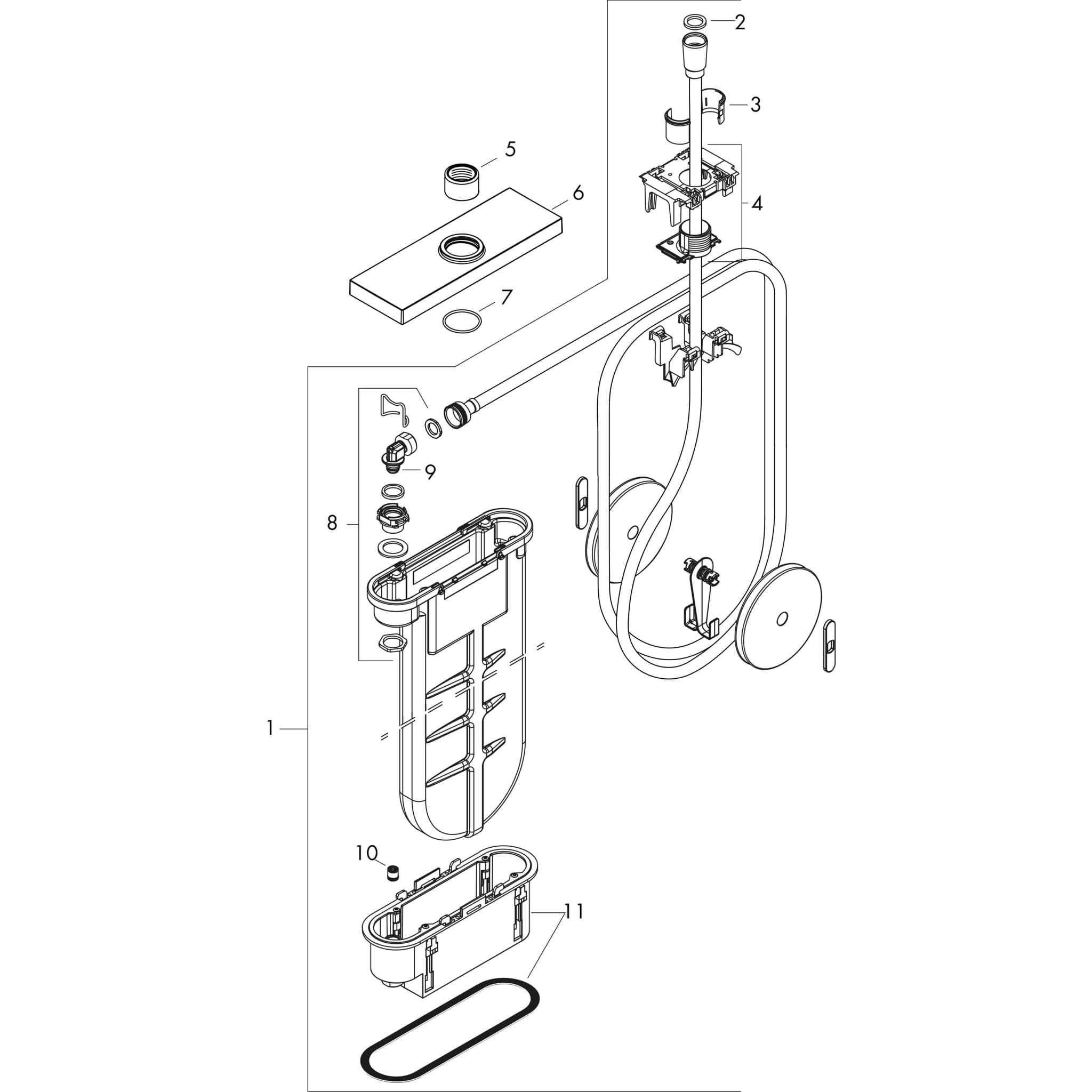

Spare Parts
