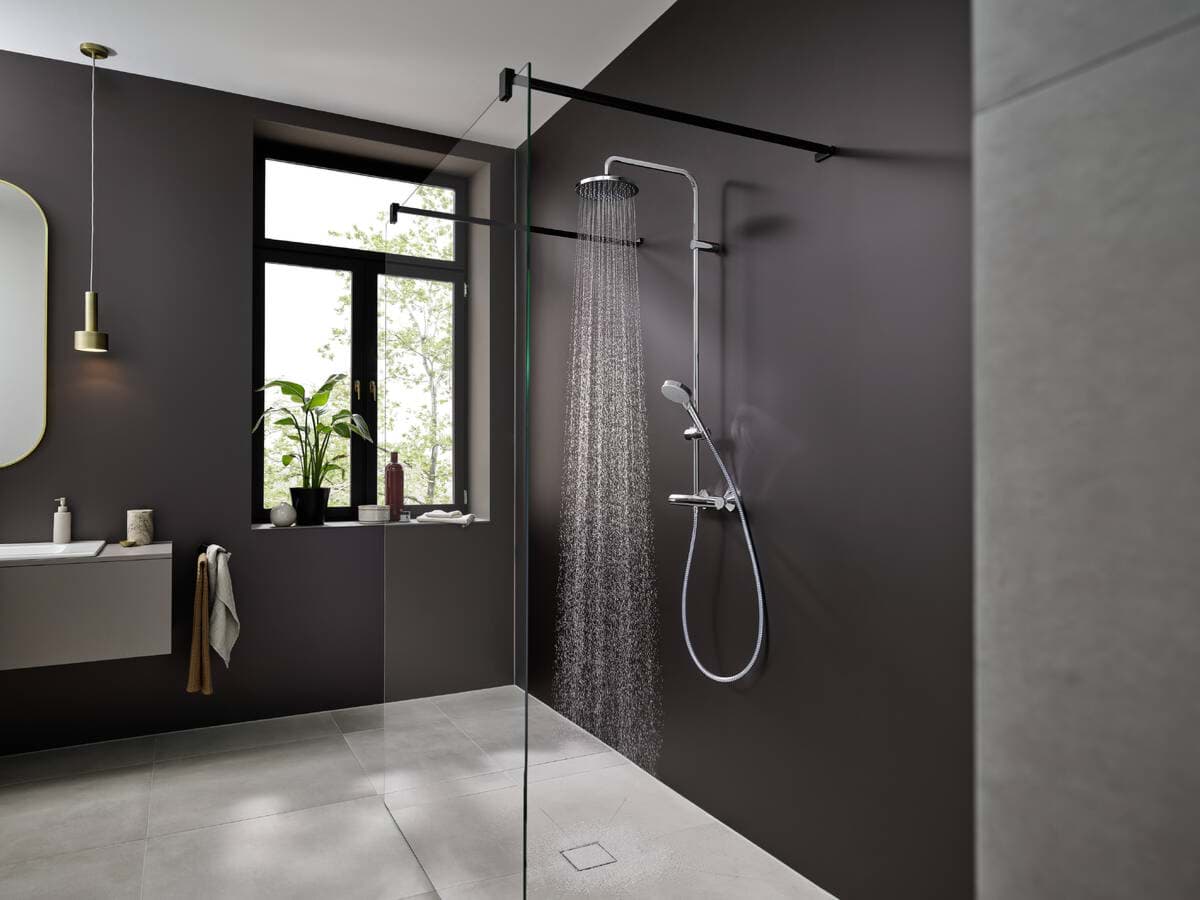

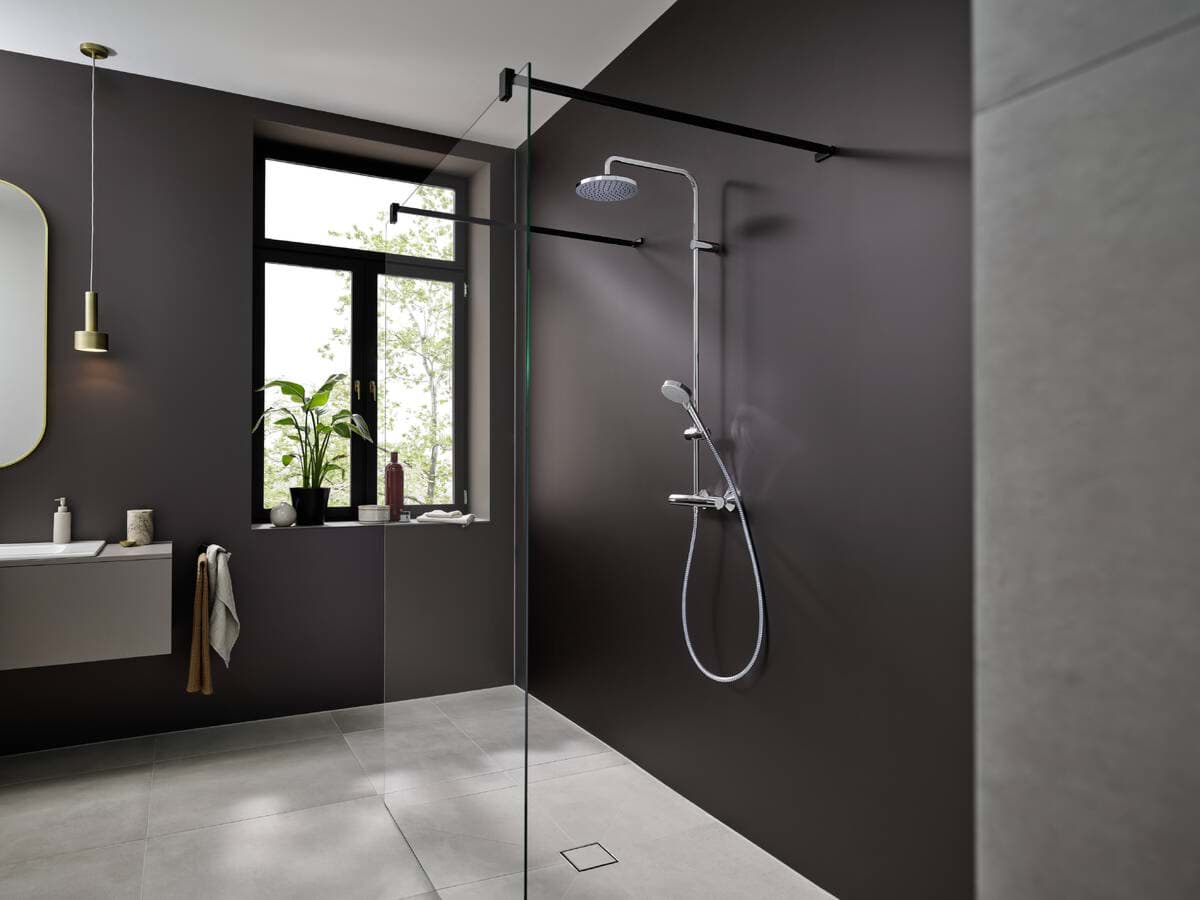

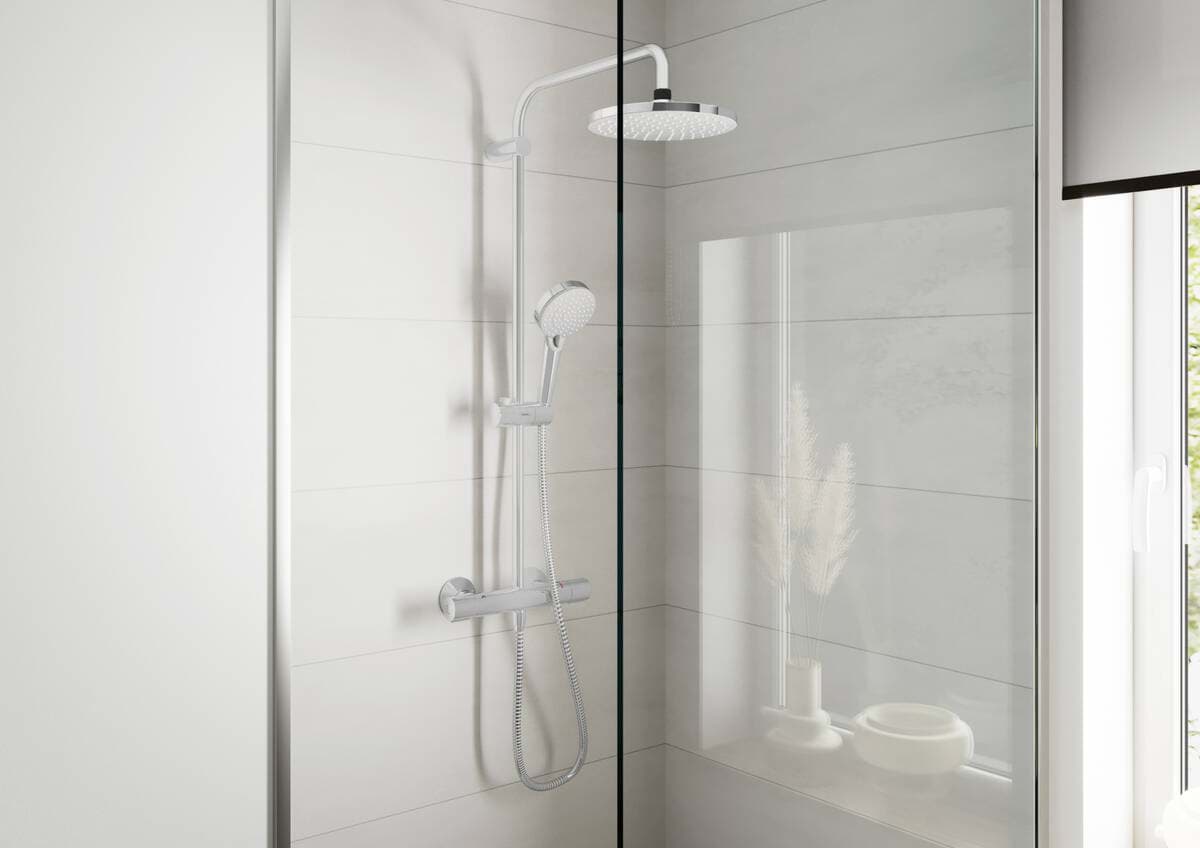

consists of: overhead shower, hand shower, shower thermostat, shower hose, slider

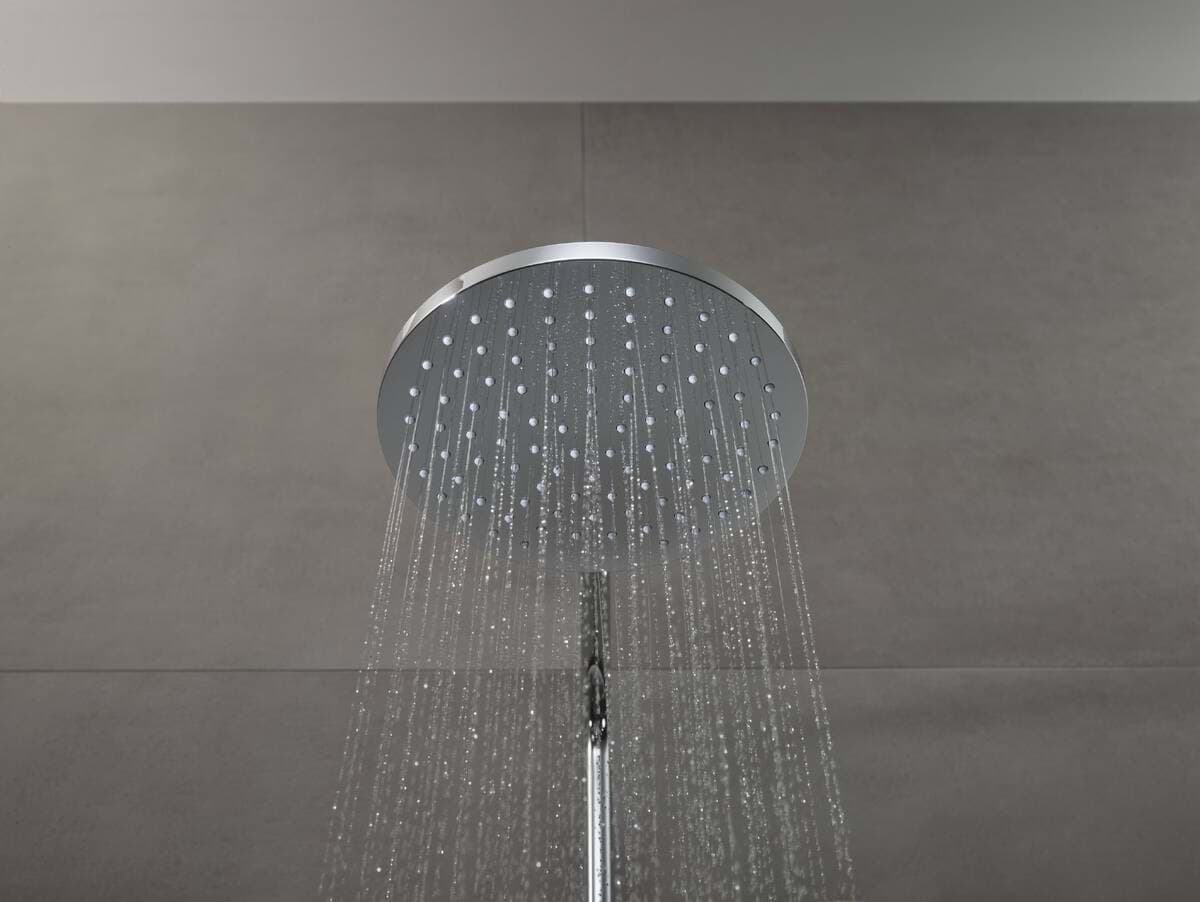

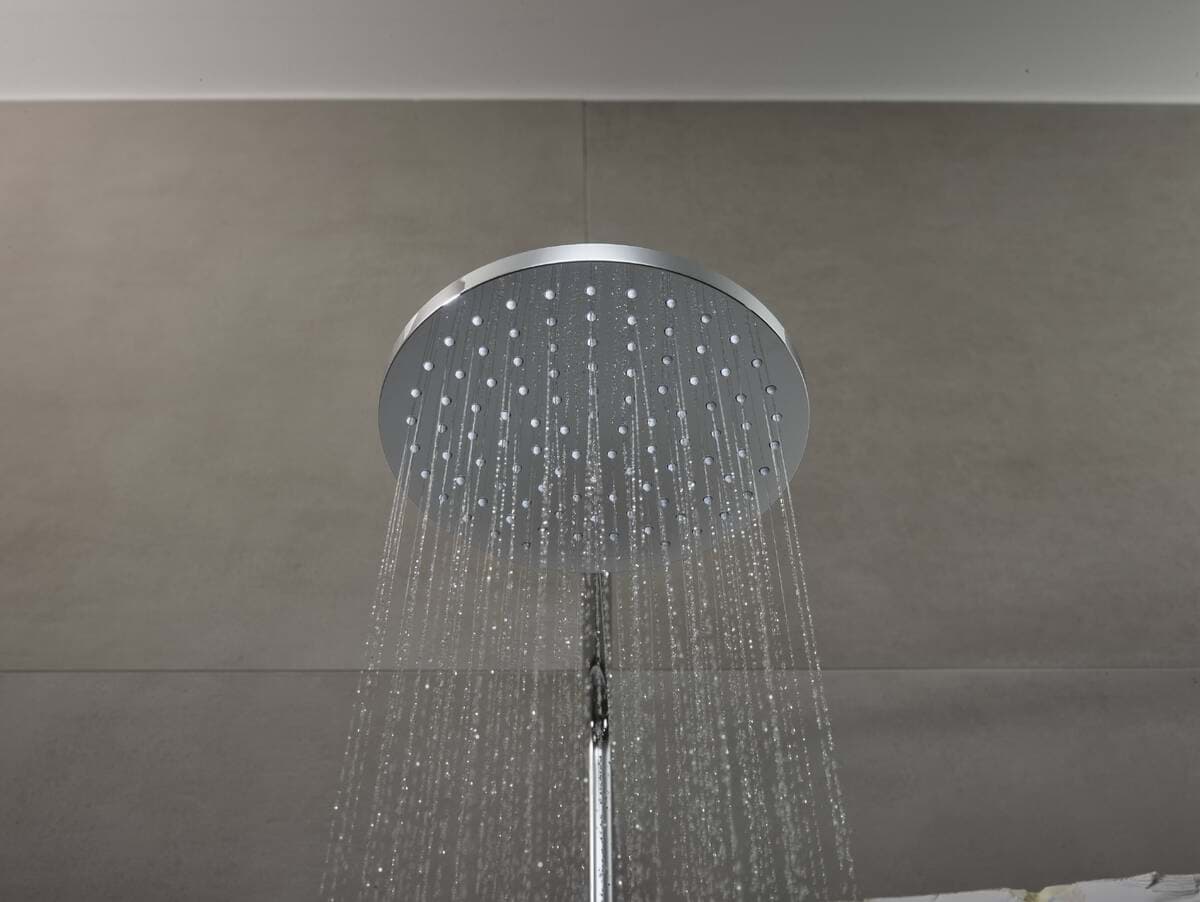

overhead shower Vernis Blend 200 1jet
shower head size overhead shower: 205 mm
spray type overhead shower: Rain

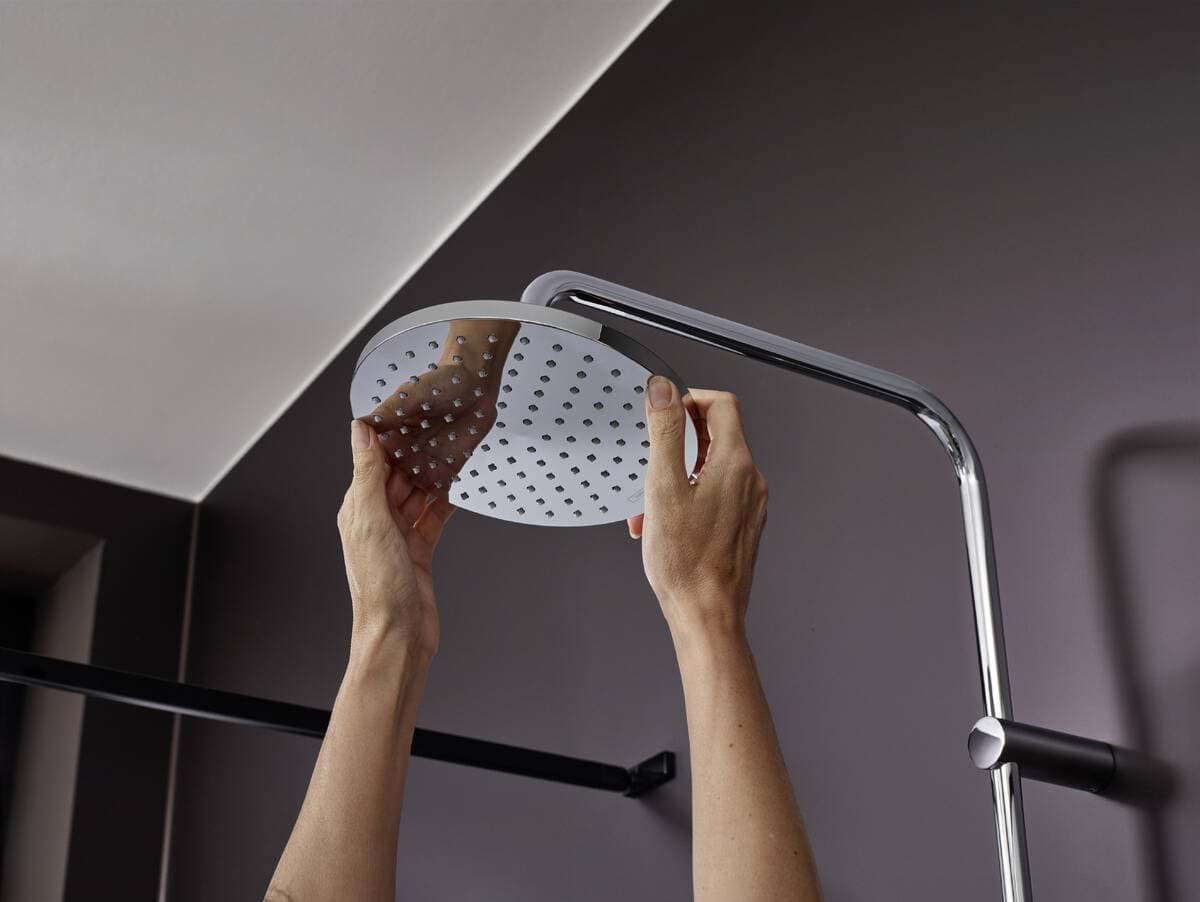

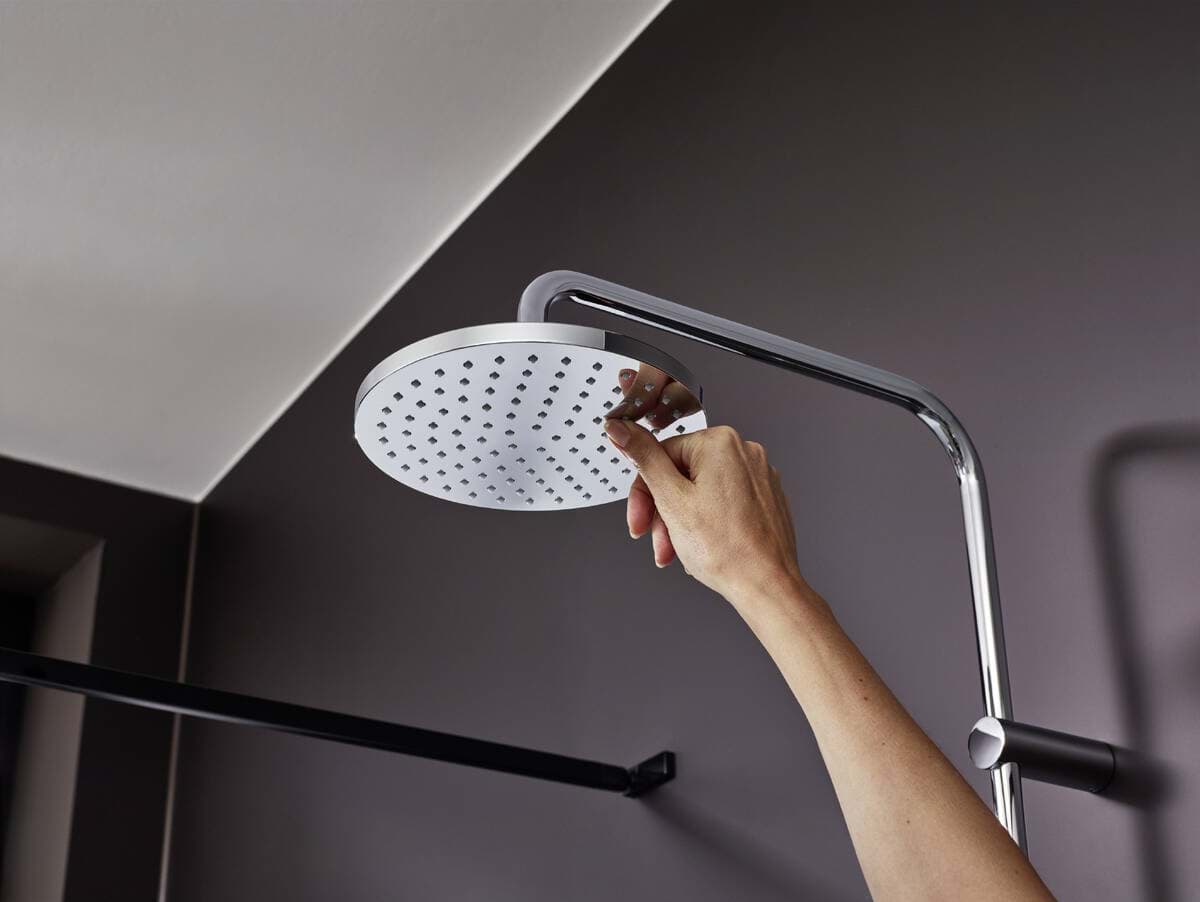

ball-joint: overhead shower angle adjustable
maximum flow rate at 3 bar: 5,7 l/min
flow rate Rain spray (at 3 bar): 5,5 l/min
spray type hand shower: Rain, IntenseRain
flow rate of hand shower at 3 bar: 5,5 l/min
minimum flow pressure: 1 bar
max. operating pressure: 10 bar
shower bar diameter: 19 mm
height-adjustable slider with locking push-button slider
shower arm length overhead shower: 426 mm

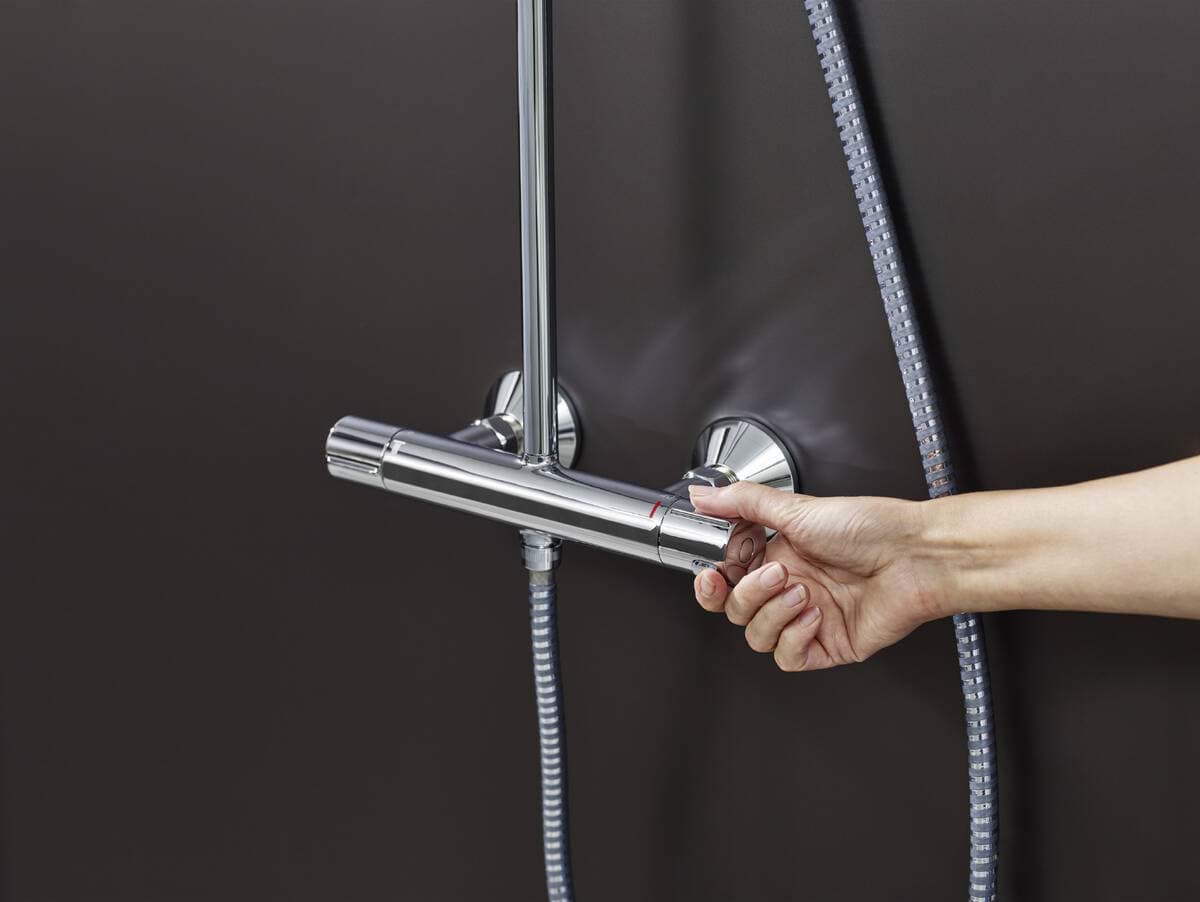

thermostat Vernis
safety stop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension DN15
connection thread G ½
centre distance 150 ± 12 mm
intrinsically safe against backflow
pipe length: 1124 mm
2 functions
