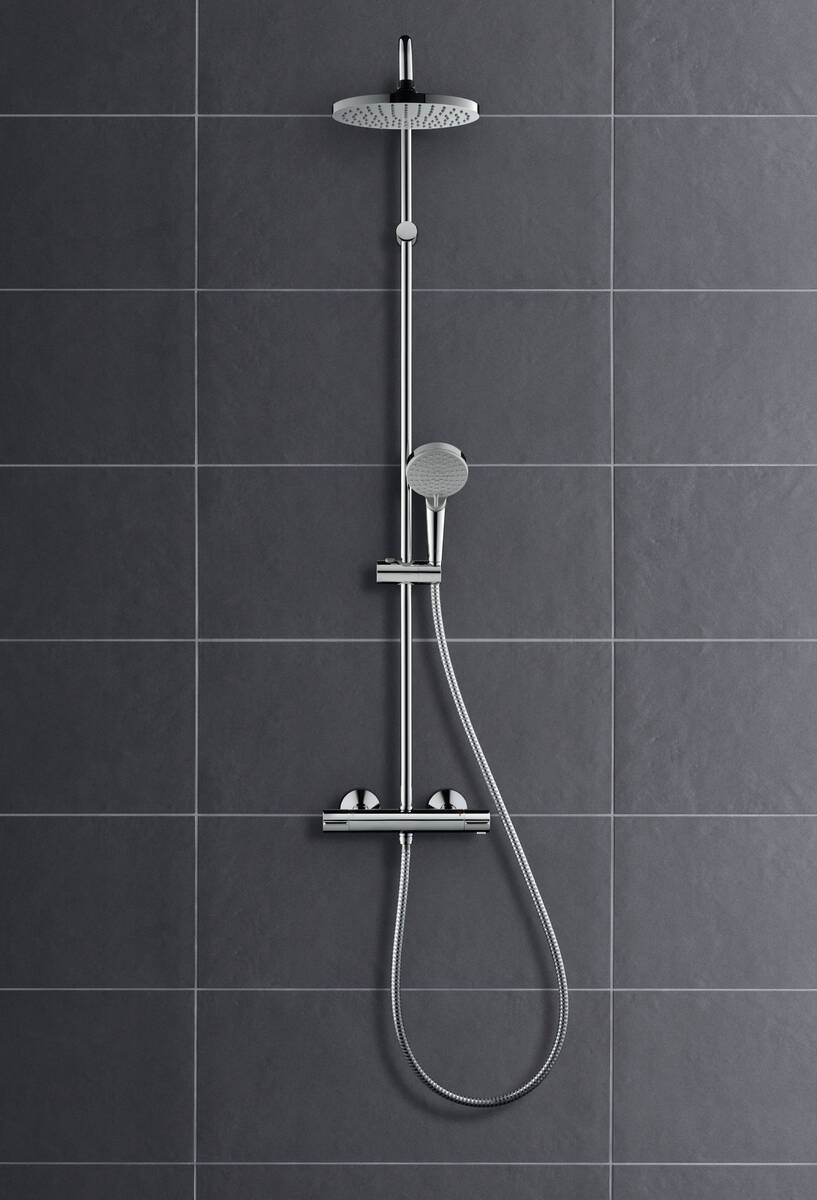

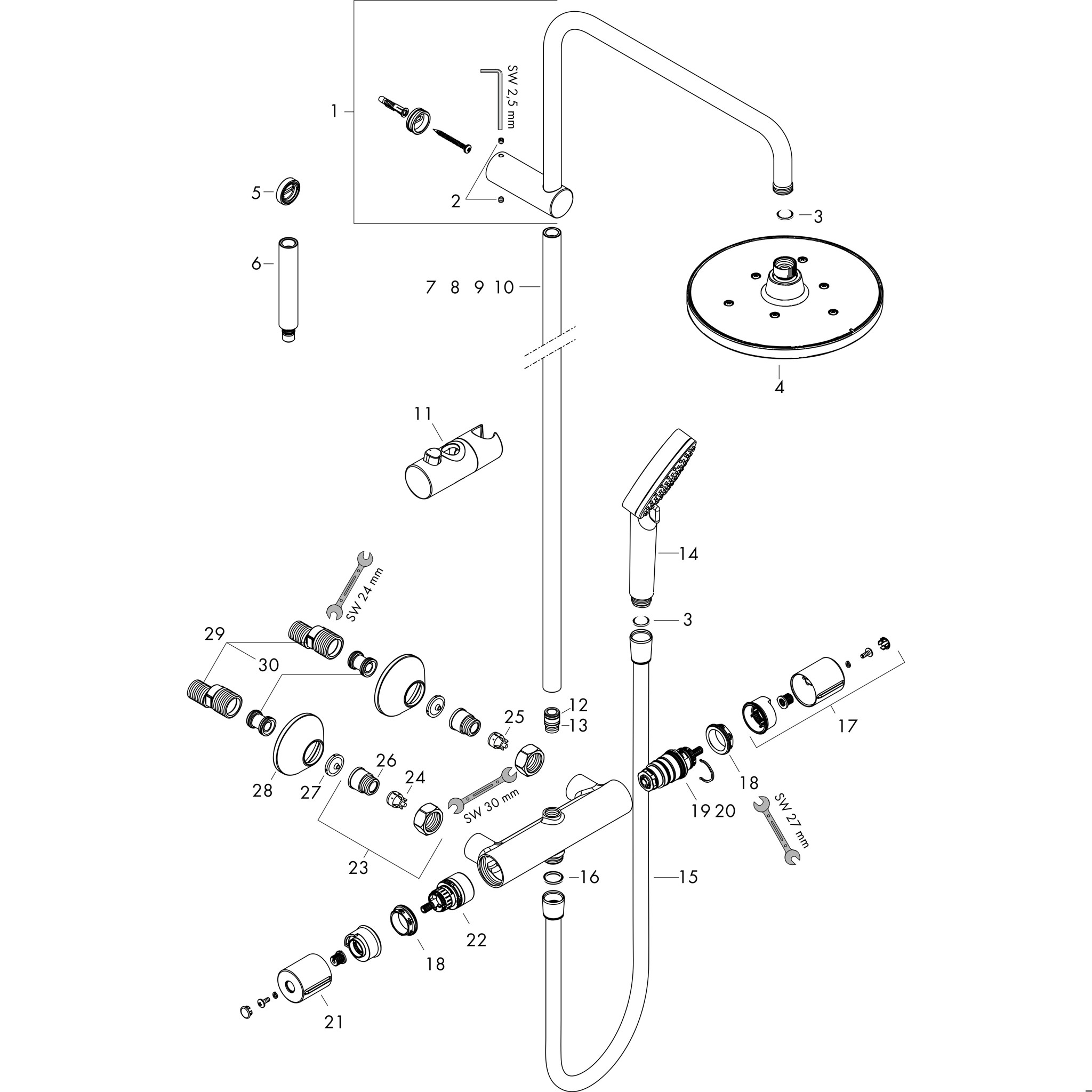

consists of: overhead shower, hand shower, shower thermostat, shower hose, shower bar, slider
overhead shower Vernis Blend 200 1jet
shower head size overhead shower: 205 mm
spray type overhead shower: Rain
spray type hand shower: Rain, IntenseRain
flow rate of hand shower at 3 bar: 15,2 l/min
maximum flow rate for Showerpipe at 3 bar: 15,2 l/min
minimum flow pressure: 1 bar
max. operating pressure: 10 bar
ball-joint: overhead shower angle adjustable
height-adjustable slider with locking push-button slider
shower arm length overhead shower: 426 mm
thermostat Vernis
SafetyStop at 40°C
adjustable hot water limitation
outlets controlled via turning handle
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension: DN15
connection thread: G ½
centre distance: 150 ± 12 mm
intrinsically safe against backflow
shower bar diameter: 19 mm
2 functions
