Description
consists of: single lever bath mixer floor standing, baton hand shower, shower hose, shower holder
2 functions
projection: 236 mm
spray type mixer: WaterfallStream
spray type hand shower: Rain, MonoRain
maximum flow rate at 3 bar: 21,3 l/min
flow rate for bath spout at 3 bar: 21,3 l/min
flow rate of hand shower at 3 bar: 13,4 l/min
ceramic cartridge
temperature limitation adjustable
diverter with automatic resetting
non-return valve
connection dimension: DN15
connection type: basic set
deck mounted
min. operating pressure: 1 bar
max. operating pressure: 10 bar

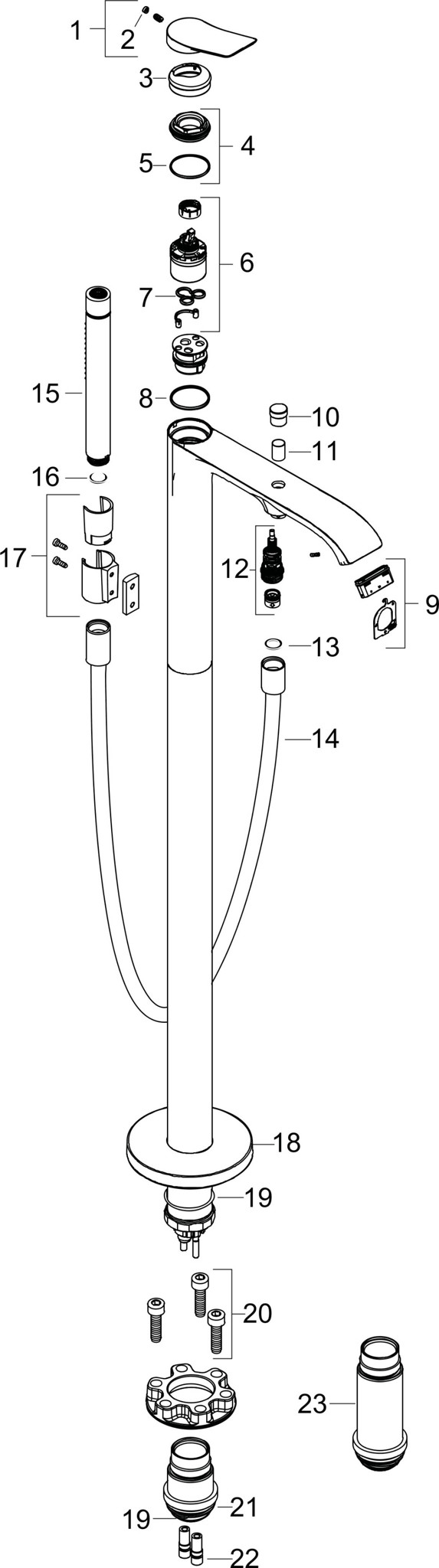

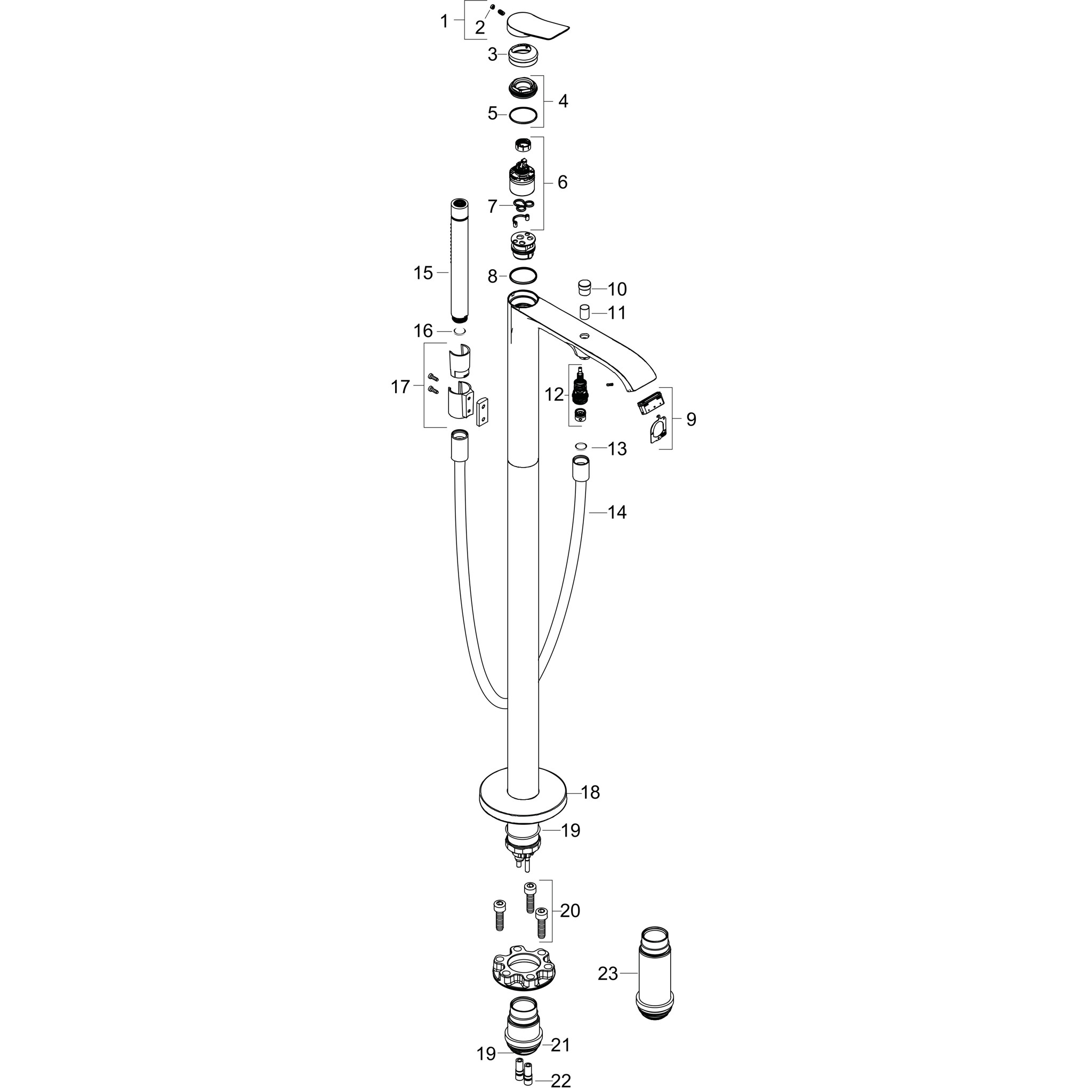

Spare Parts
Related products
Hans Grohe
HANSGROHE Cheese head screw M10x35 #97670000
Further option:
Warehouse
Hans Grohe

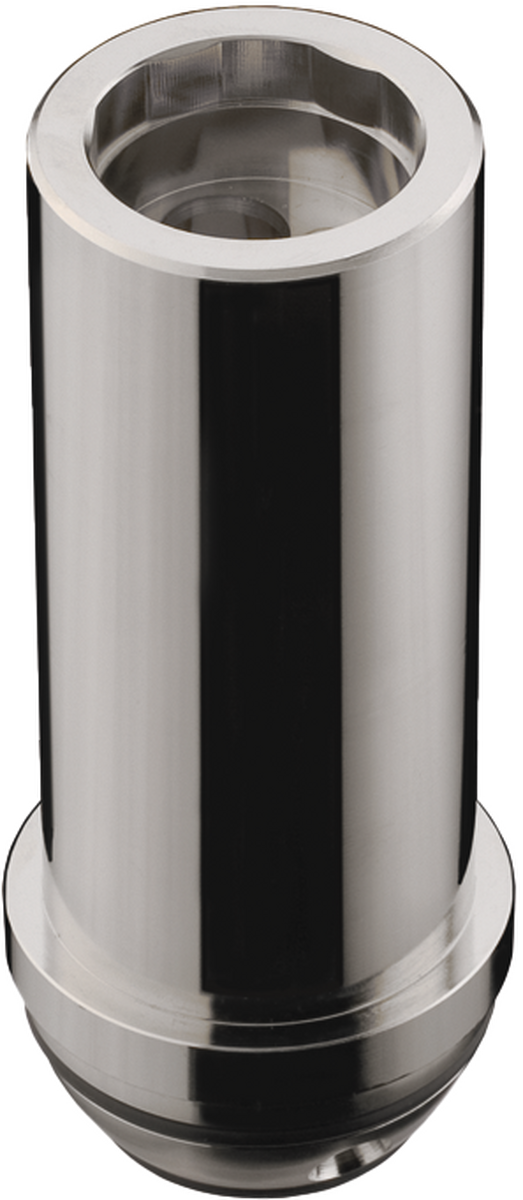

HANSGROHE Extension 60 mm #93882000
Further option:
Warehouse
Hans Grohe
HANSGROHE Sleeve #97979700
Further option:
Warehouse
Hans Grohe
HANSGROHE Rosette #94038700
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR Starck Metal effect shower hose 1.25 m with cylindrical nuts #28282700 - Matt White
Further option:
Warehouse
Hans Grohe
HANSGROHE AXOR Starck Baton hand shower 2jet #28532700 - Matt White
Further option:
Warehouse
Hans Grohe
HANSGROHE Shower holder compl. #96295700
Further option:
Warehouse
Hans Grohe
HANSGROHE Pull knob #97981700
Further option:
Warehouse
Hans Grohe
HANSGROHE Mother #93995000
Further option:
Warehouse
Hans Grohe
HANSGROHE escutcheon #94027700
Further option:
Warehouse
Hans Grohe
HANSGROHE O-ring 35x1.5 #92114000
Hans Grohe
HANSGROHE Handle plugs #93735700
Further option:
Warehouse
