Tested according to DIN EN 817

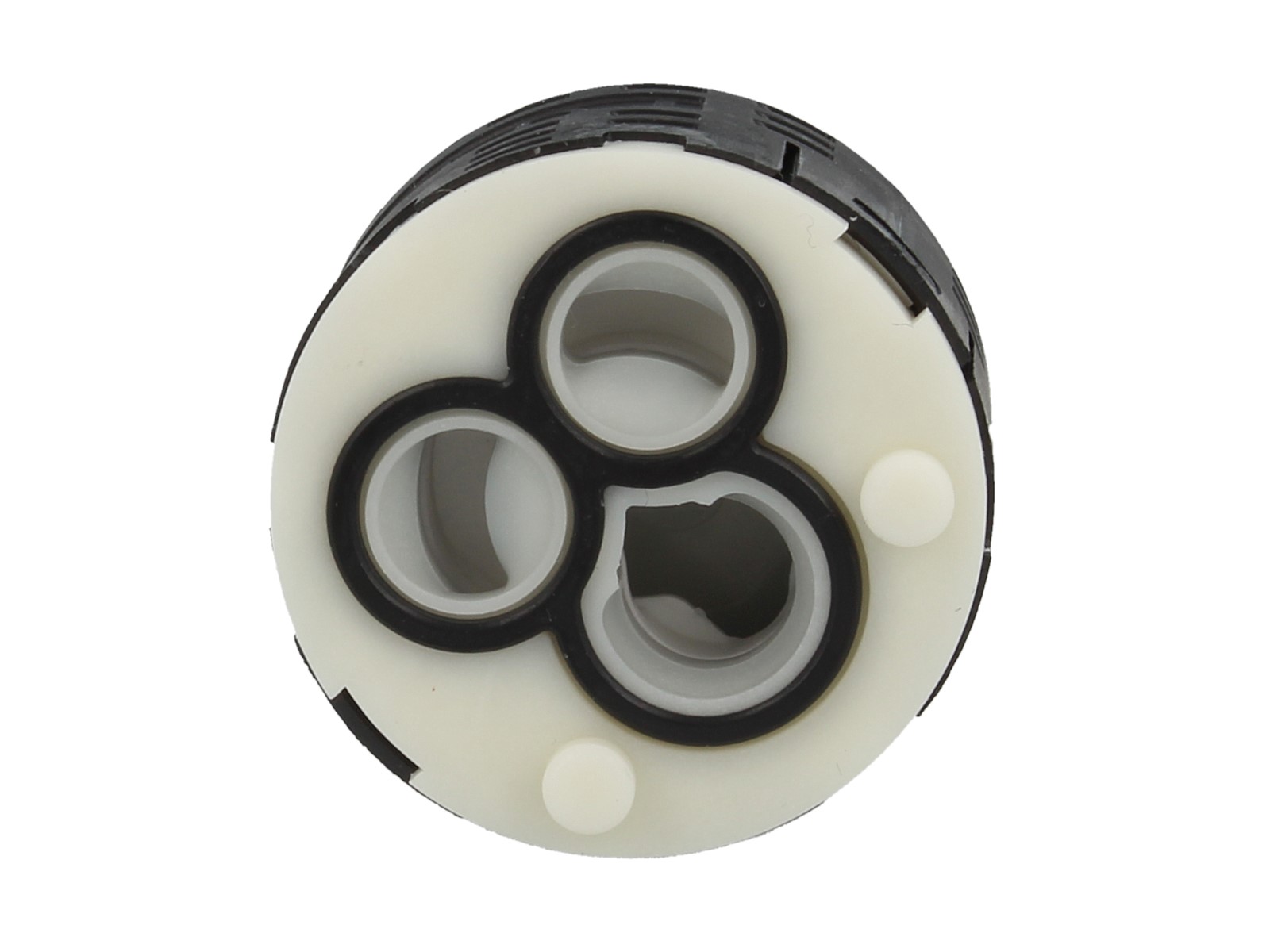

Made of plastic / ceramic, with pre-adjustable hot water limitation

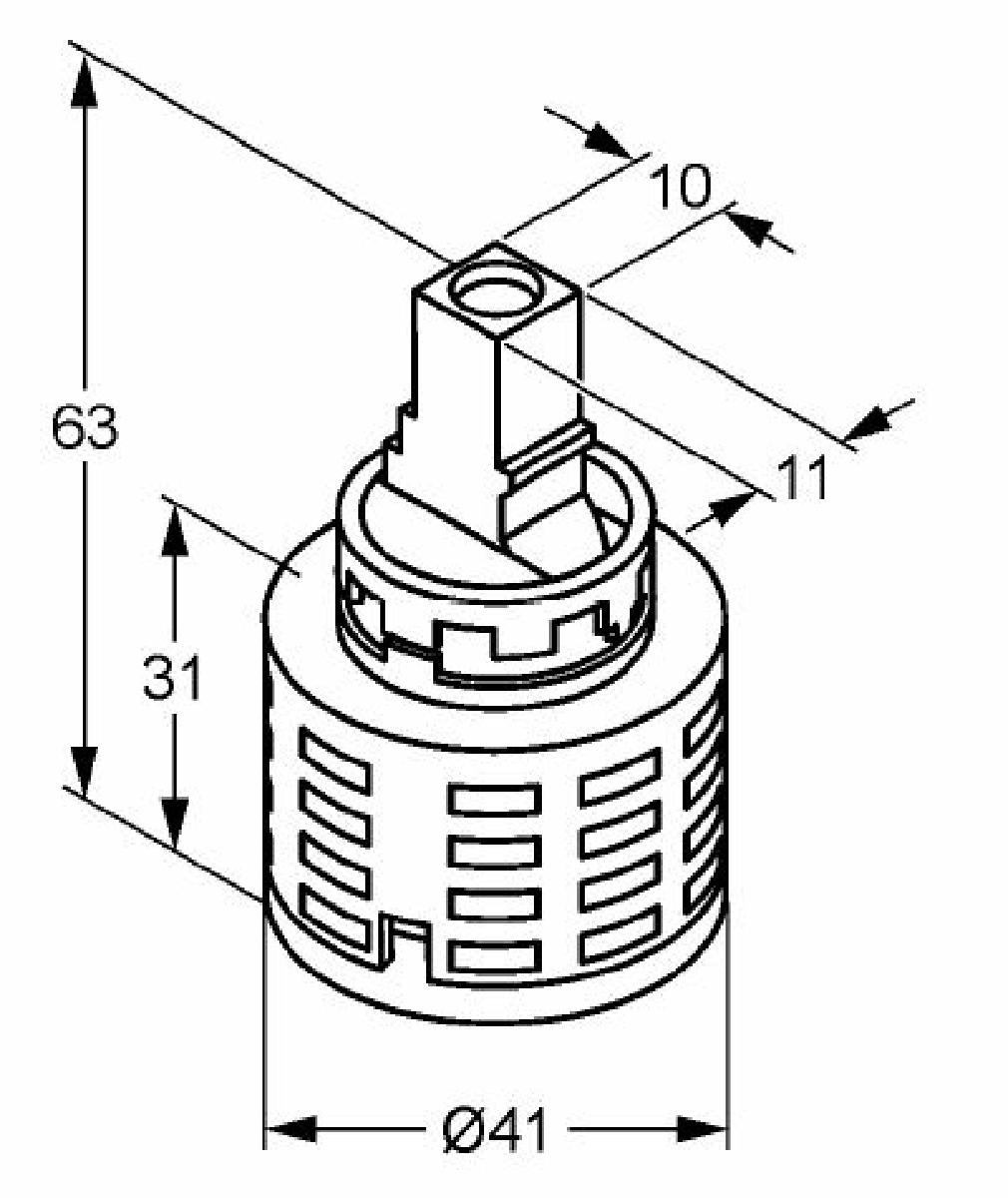

DVGW, KIWA, ACS, diameter 41 mm, according to the Drinking Water Ordinance
Max. Operating temperature 90 ° C
Max. Test pressure 25 bar
Max. Operating pressure 10 bar / however, at operating pressures above 5 bar, a pressure reducer must be connected upstream in order to maintain the noise levels according to DIN 4109, with adjustable flow limitation
To save energy and protect against scalding, a maximum of 65 ° C hot water inlet temperature is recommended
Testing by LGA QualiTest GmbH with 70,000 cycles according to DIN EN 817
Suitable for the series:
UP unit body DN 15 33 434
Objekta-Mix new 33 881, 33 882
Kido 39 446, 39 447
Amphora 54 443, 54 714
Shower system 222 MX, 61 824
Flexx.Boxx 88 077
