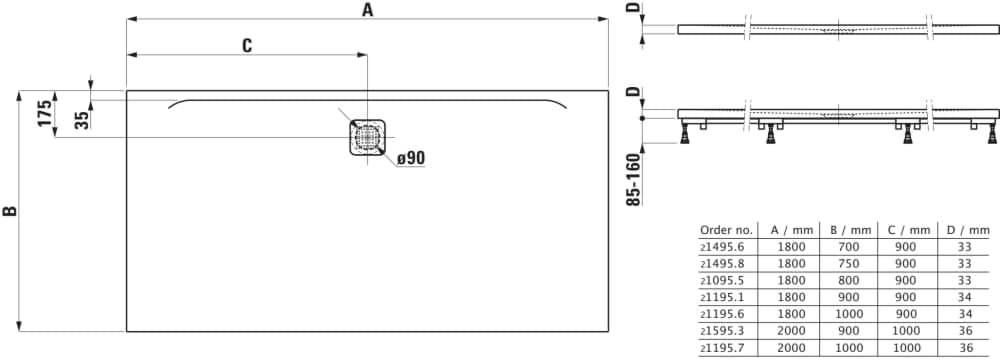

Dimensions: 1800 x 800 x 33 mm (length, width, height)
Depth: Superslim (less than 45mm)
Installation type: Built-in, Corner
Material: Marbond
Net weight (kg): 79
Option: standard option
Shape: Rectangular
Slip-resistant base (anti-slip)
Waste diameter (mm): 90

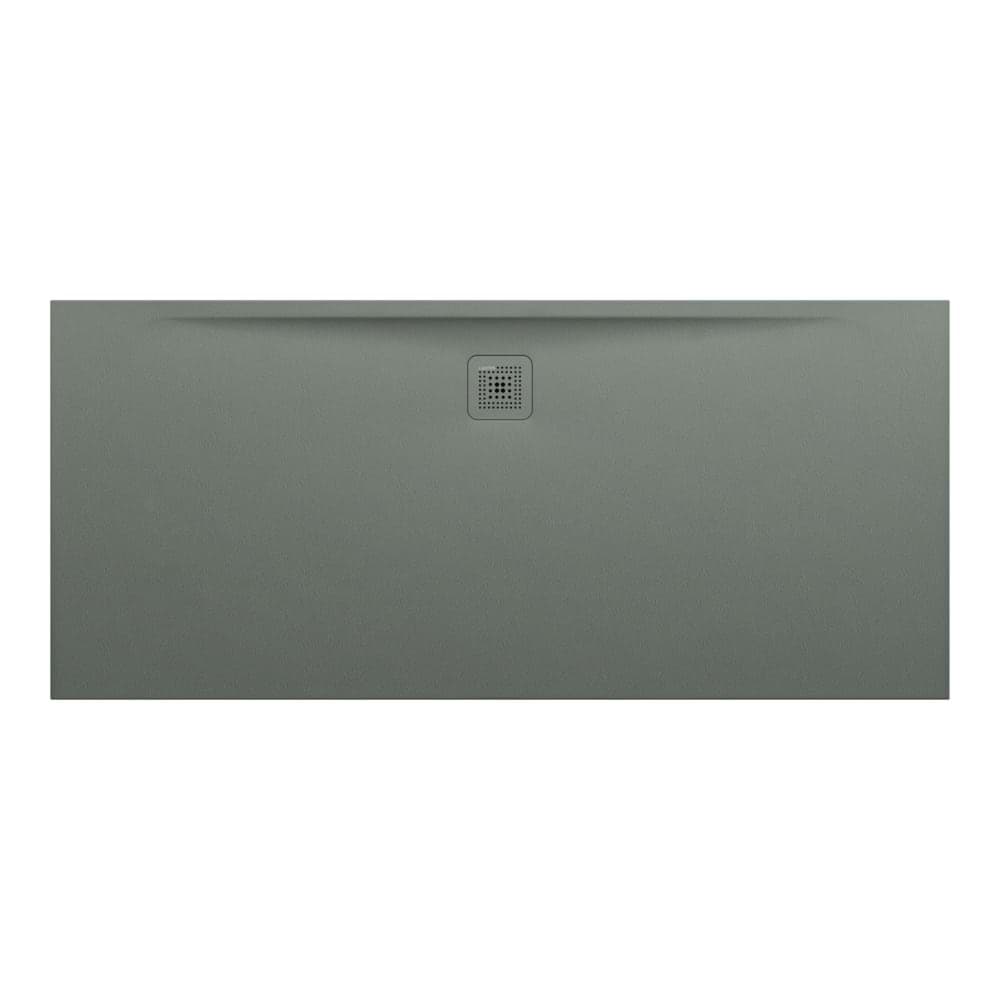

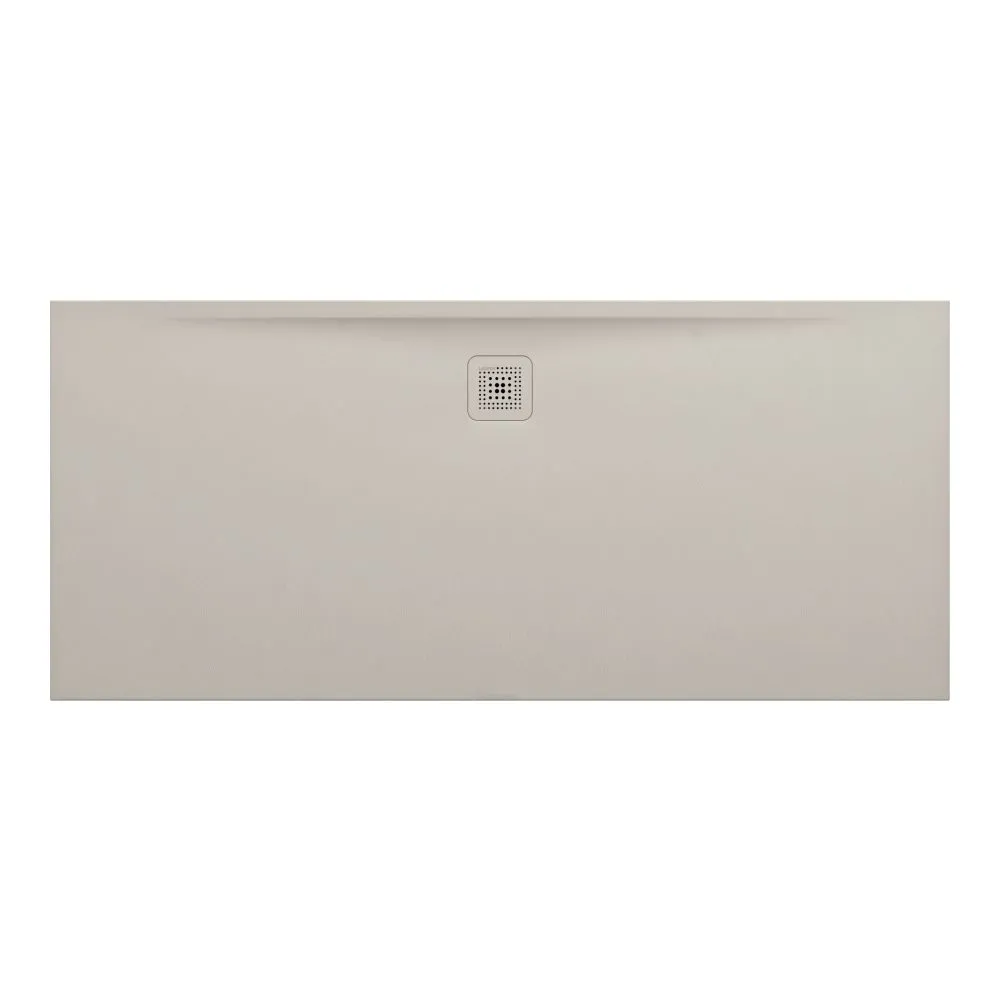

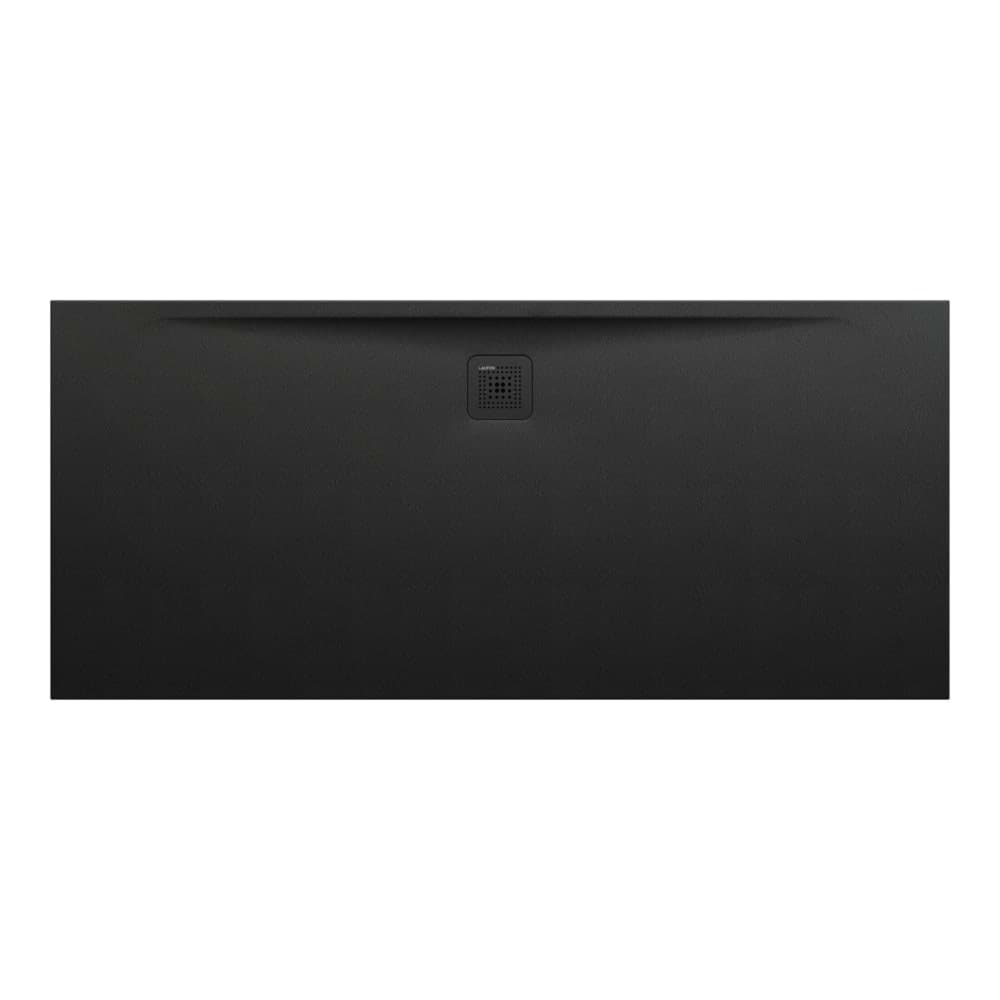

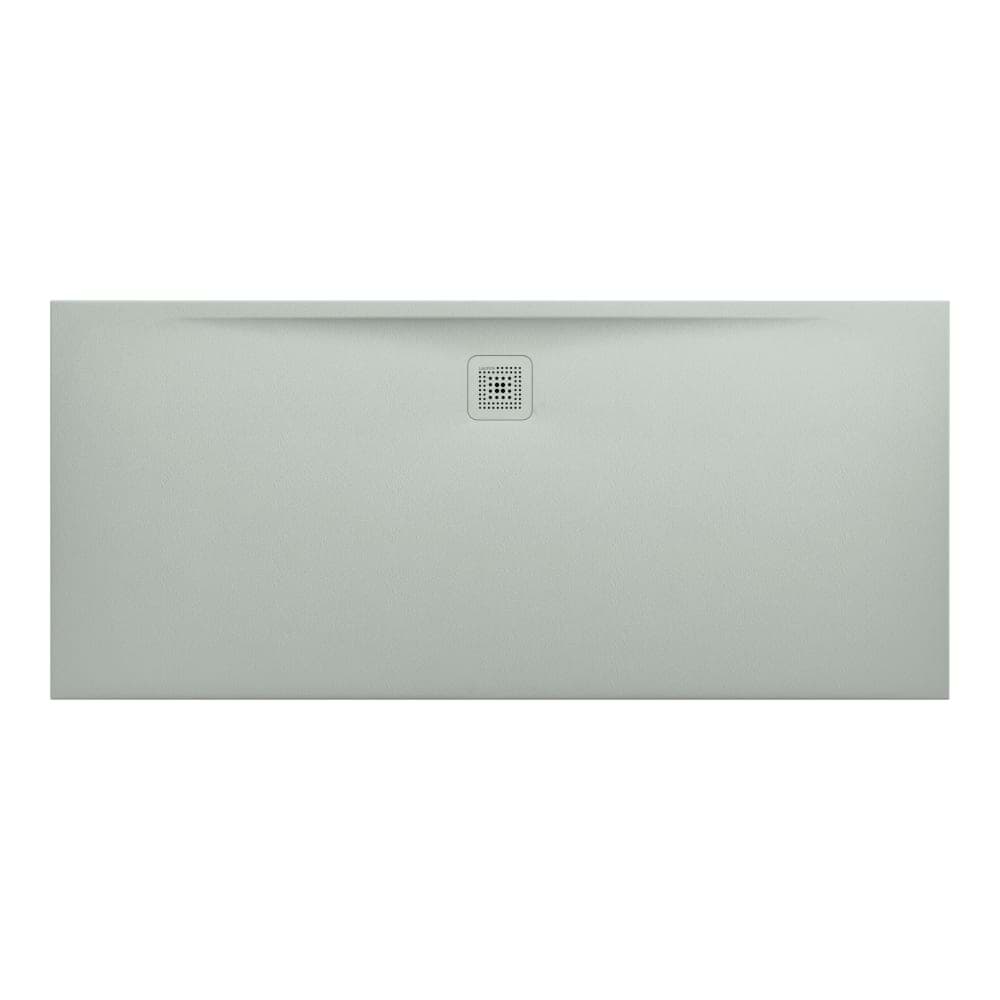

Rectangular shower tray made of Marbond (Gel Coat surface matt, with structure) with Antislip, Class C (DIN 51097). Removable siphon cover, stainless steel for floor-even installation or on floor installation.
Mounting box incl. waste, Ø 90 mm without cover (pre-assembled), water drain connection possible left or right hand side: type DN 50, height 100 mm, order no. H290043, type DN 40, height 75 mm, order no. H290033 Waste DN 50, Ø 90 mm without cover, order no. H295127 Mounting box, water drain connection possible left or right hand side: type DN 50, height 100 mm, order no. H290041, type DN 40, height 75 mm, order no. H290031 Installation frame, adjustable height between 85-160 mm, order no. H298441, 85-175 mm, order no. H295706 Antinoise set for the frame installation to fulfil. DIN 4109 and SIA 181: frame height 85-160 mm, order no. H298988, frame height 85-175 mm, order no. H298990 3-D sealing tape: Sealing set 3,0 m, for sealed sides ≤ 3 m, includes 1 sealing tape (width 120 mm, length 3 m), 3-D inside corner for sealing (1 piece) and 2x 3 rm antinoise tape (width 30 mm), order no. H295642 Additional sealing set 2,0 m, for sealed sides ≥ 3 m, order no. H295647 3-D sealing corners: inside corner, 1 piece, order no. H295643, outside corner for floor-even installation, set 3 parts, order no. H295644 Dispersion sealing composition, tube 500 ml, order no. H295645 Noise control band, order no. H295556
